RX II Series User Manual
Illustrator Plug-In A-5

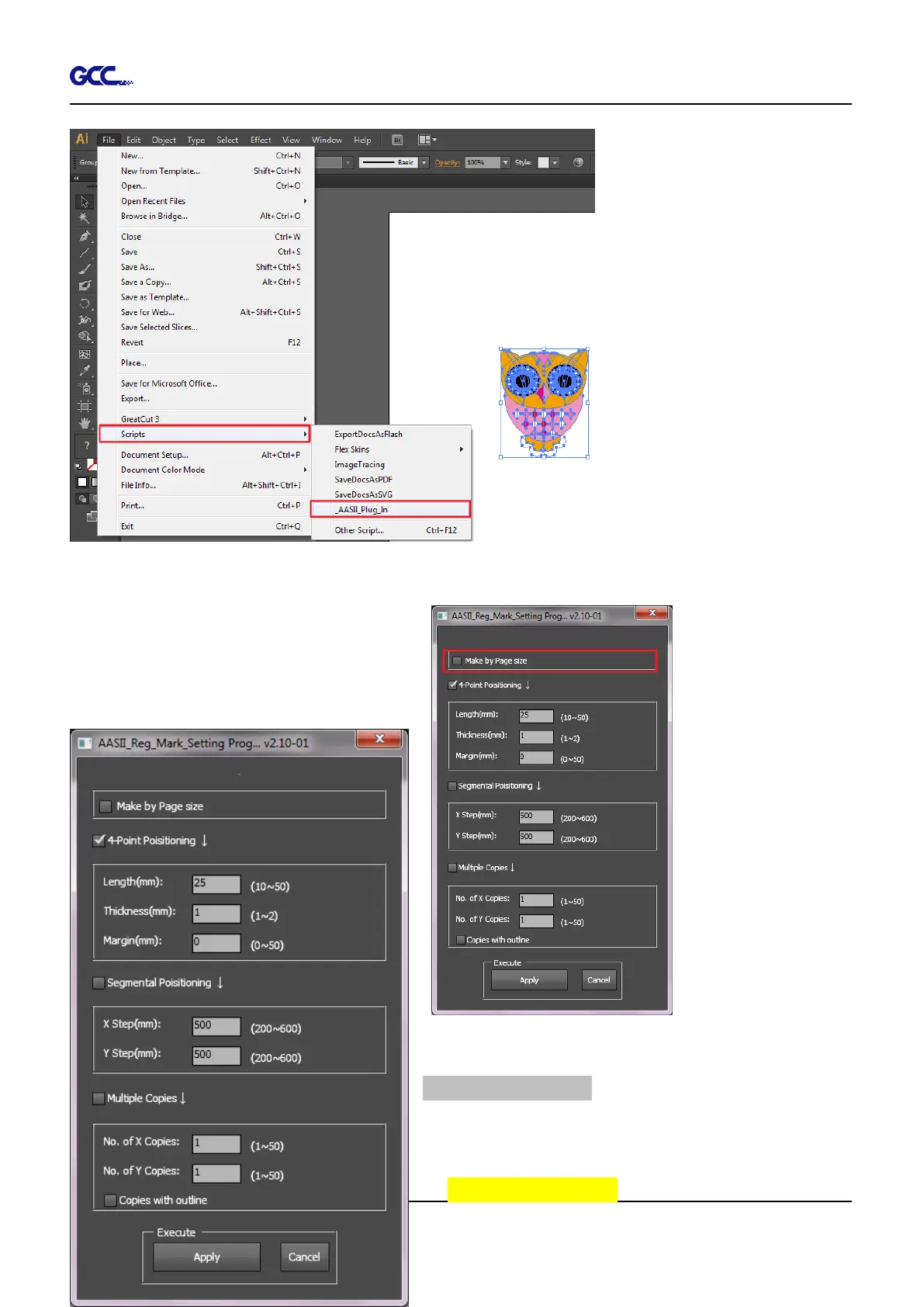

Make sure to untick “Make by page size” and choose one of the registration mark types
whichever is suitable.
Three types of registration marks
4-Point Positioning
4-Point Positioning
 Length: The length of marks
 Range: 5mm~50mm
 Optimized Setting: 25mm
 Thickness: The line thickness of marks
