RX II Series User Manual
Illustrator Plug-In A-5

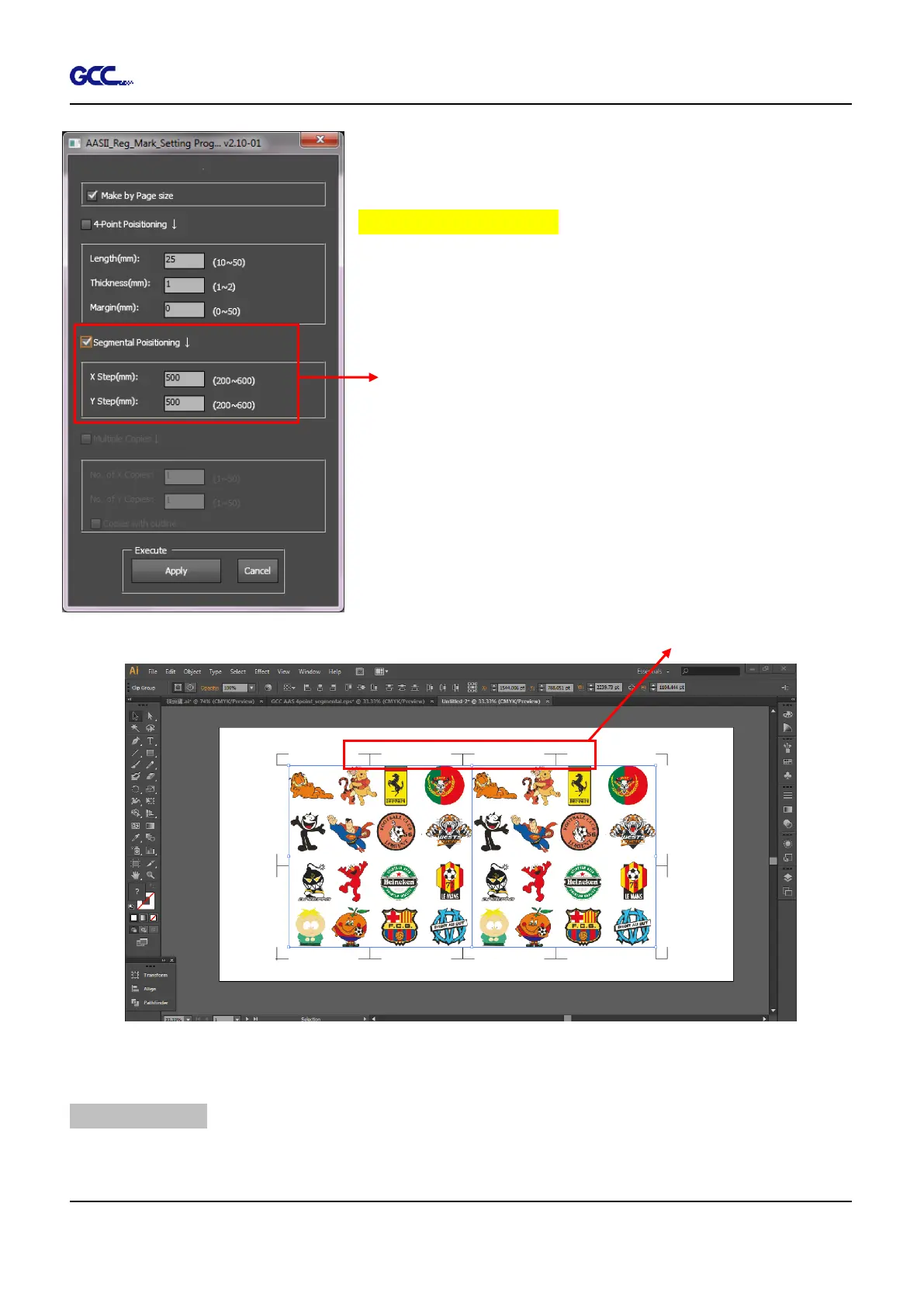

Segmental Positioning
X Step: The distance of intermediate position on the X
axis
Y Step: The distance of intermediate position on the Y
axis
Range: 200mm~600mm
Optimized Setting: Less than 500mm
The system will create the marks as shown in the picture below.
Multiple Copies
It is suggested to select “Multiple Copies” when you would like to make several copies of one
image on your material to increase cutting accuracy.
To Next Page
