Table 1

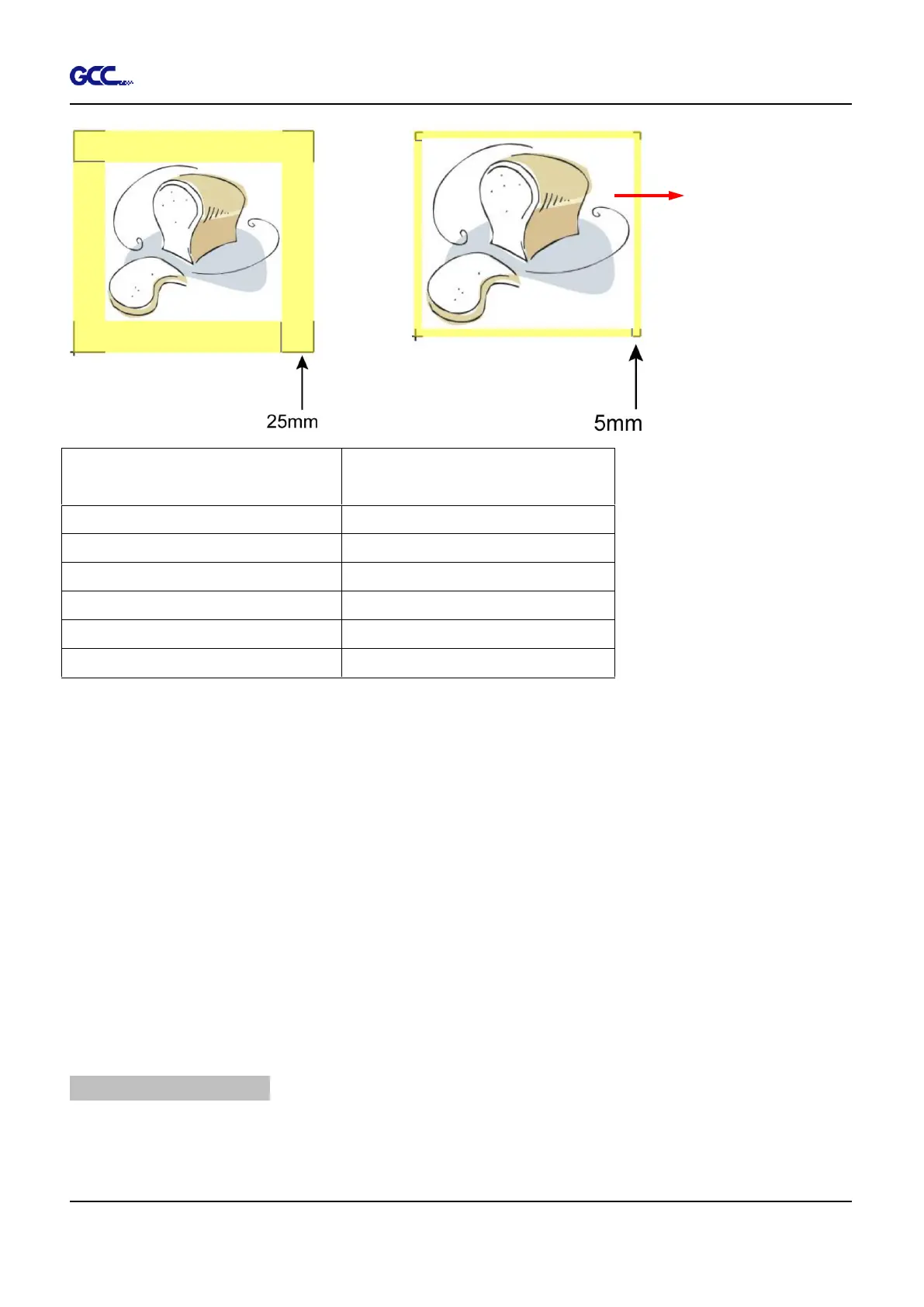

*25mm is the suggested value for the registration mark length
2. The size of the registration marks would affect the accuracy of registration mark detection so
please make sure the amount you enter is reasonable.
3. If you change the paper size, you will have to reset the registration marks otherwise the
previous setting will be applied.
Segmental Positioning
For precise cutting quality, it is suggested to select “Segmental Positioning” when you are
working on an extra long or large-sized image to increase cutting accuracy.
Suggested mark length
(unit: mm)
To Next Page
