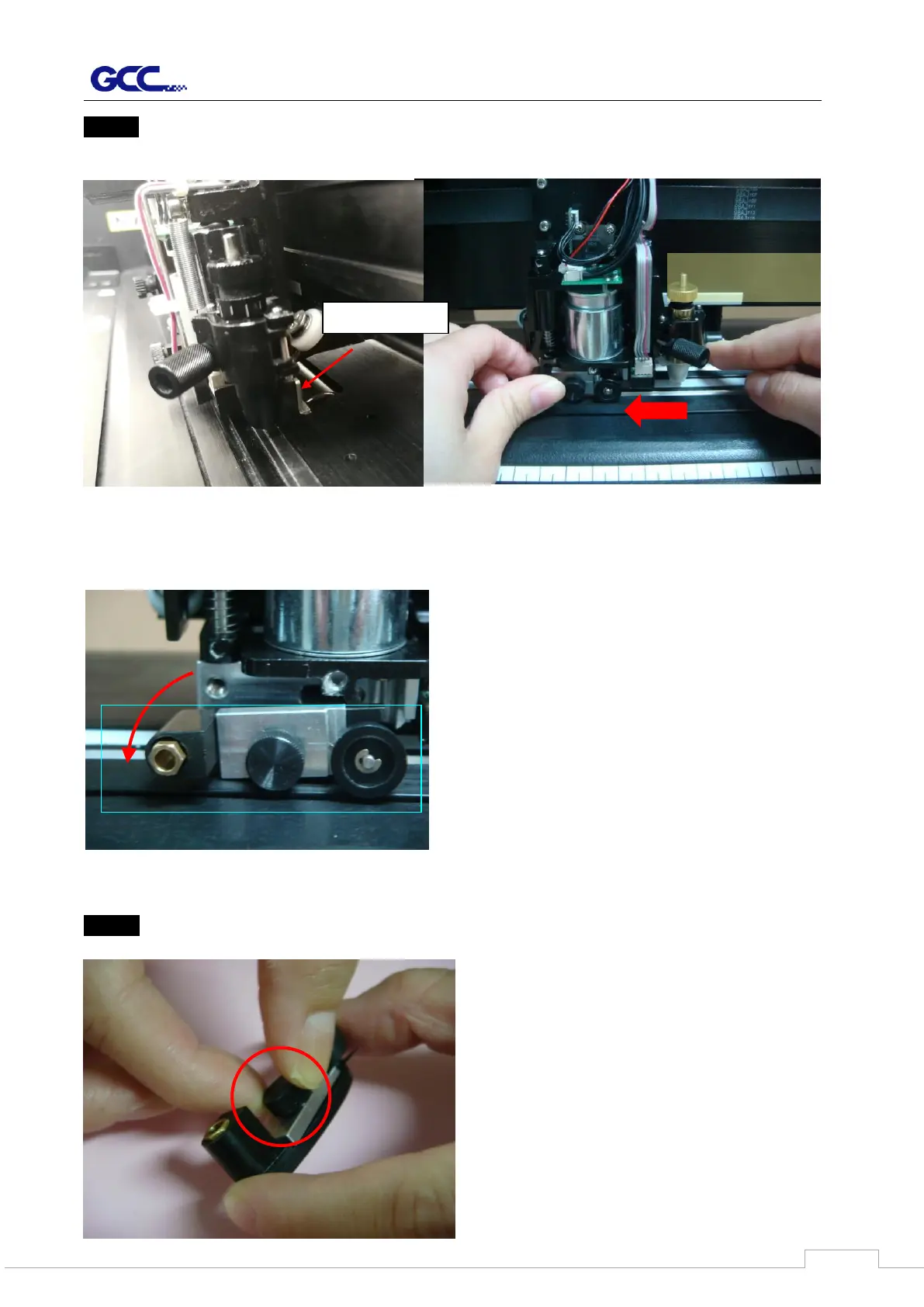

Step 5 Remove the entire Cut-off Unit by holding it while pushing the tiny metal board on the
right to the left (Figure 2-39 and 2-40).
The Cut-off Unit will drop automatically once the board is pushed to the left (Figure 2-41).
Step 6 Remove the screw from the Cut-off Unit (Figure 2-42 and 2-43) and disassemble the
Cut-off Blade Fixer by pulling it up vertically (Figure 2-44).
Figure 2-40
Figure 2-40
Figure 2-41
Figure 2-42
Push to the left
Figure 2-39
Metal Board
