AFR-24S User Manual
59

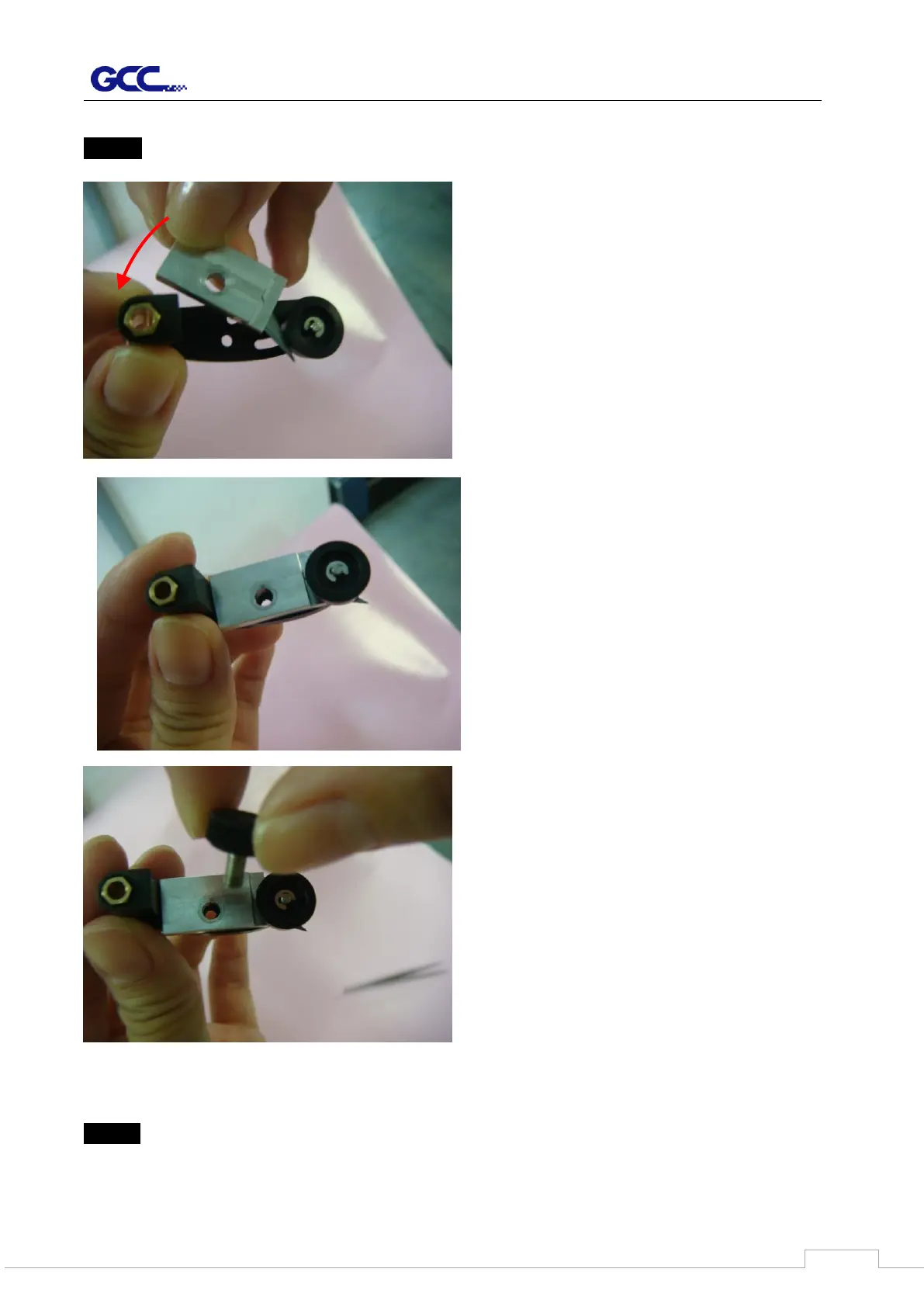

Step 8 Assemble the Cut-off Blade Fixer back to the Cut-off Unit by pushing the Holder
downwards (Figure 2-47 and 2-48) and attach the screw (Figure 2-49).
Step 9 Assemble the Cut-off Unit back to the Tool Carriage by pushing the metal board on
the right while pushing the Cut-off Unit upwards (Figure 2-50 and 2-51) and attaching the
screw (Figure 2-52).
Figure 2-48
Figure 2-49
Figure 2-47
