AFR-24S User Manual
72
want to plot, finishing settings press “Enter” key to next step.

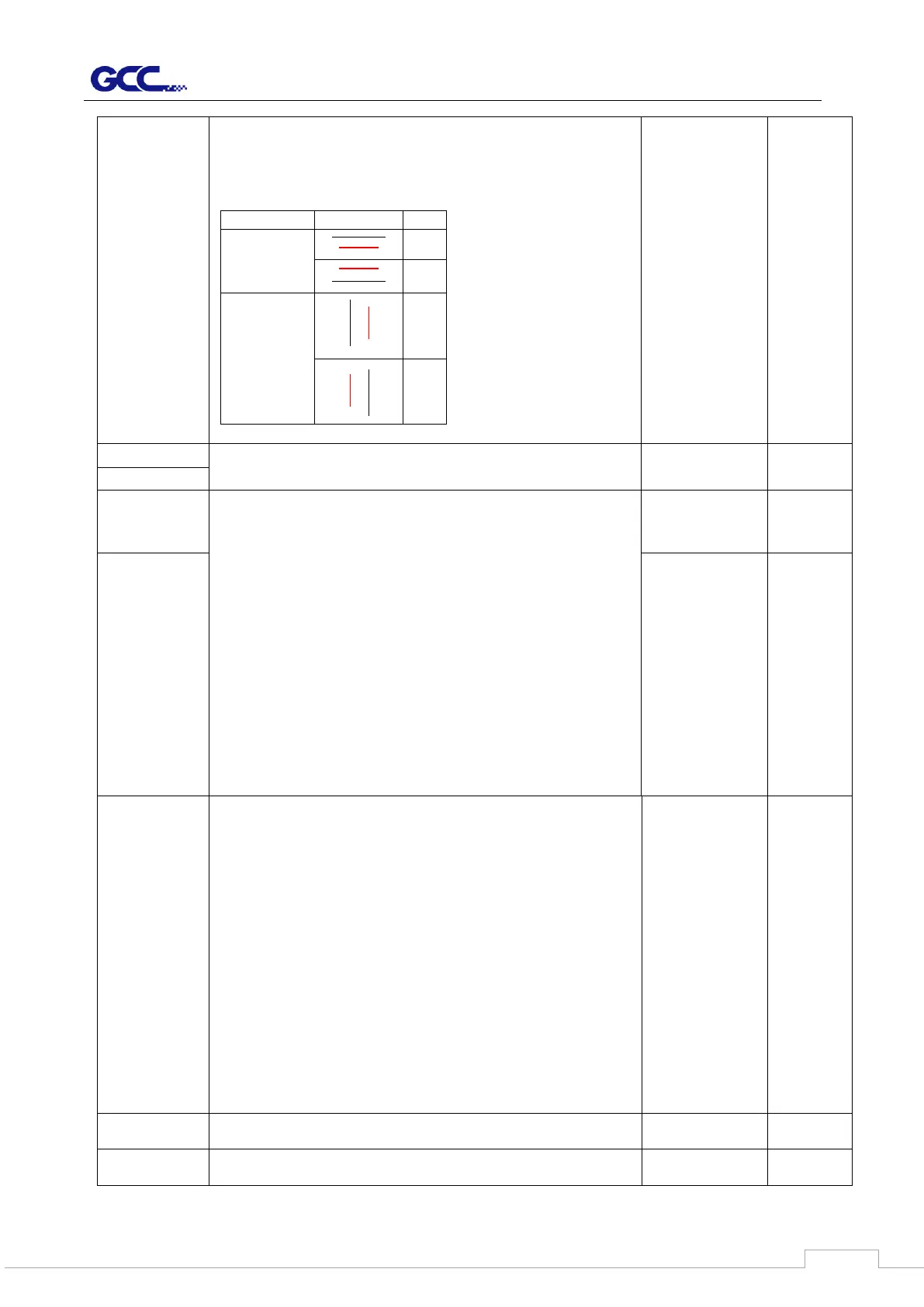

2. If the pen and cutter lines are not matched, please refer to
the table below for adjust X and Y values in “Pen overlap Cut”
option.
Press ← and → key switch X and Y direction.
Directions
Status
Key
X


Y

↓
Black line: pen line, Red line: cut line
Scale Width
Fixed scaling, for maintenance only.
Scale Length
Image Scaling
Width
To adjust the image scale of media length and width that may
cause by the thickness of the media.
The Numerator is the ideal length, and the Denominator is
the actual length measured from the resultant.
For example, cutting a line with 500.0 mm length. The
procedure as follows:
1. Press the [LEFT ARROW] to choose the Numerator and
select 500.0 mm,
2. Cut the length by sending a graph file,
3. Measure the length then use the [RIGHT ARROW] key to
choose the Denominator, then
4. Press [UP ARROW /DOWN ARROW] to change the
values of the actual length.
Image Scaling
Length
Set
Communication
To build up the communication between host computer and
cutter.
Baud Rate is to determine the speed of data transmission.
Data Bits refers to the size of one block of data.
Parity is used to check if data was revived correctly or not.
9600, n, 7, 1, p 9600pbs, 7 Bits with NO Parity
9600, o, 7, 1, p 9600pbs, 7 Bits with ODD Parity
9600, e, 7, 1, p 9600pbs, 7 Bits with EVEN Parity
9600, n, 8, 1, p 9600pbs, 8 Bits with NO Parity
9600, o, 8, 1, p 9600pbs, 8 Bits with ODD Parity
9600, e, 8, 1, p 9600pbs, 8 Bits with EVEN Parity
19200, n, 7, 1, p 19200pbs, 7 Bits with NO Parity
19200, o, 7, 1, p 19200pbs, 7 Bits with ODD Parity
19200, e, 7, 1, p 19200pbs, 7 Bits with EVEN Parity
19200, n, 8, 1, p 19200pbs, 8 Bits with NO Parity
19200, o, 8, 1, p 19200pbs, 8 Bits with ODD Parity
19200, e, 8, 1, p 19200pbs, 8 Bits with EVEN Parity
DHCP
Shows your IP address for TCP/IP Configuration
Disable
IP Address
Shows the IP Address of your cutting plotter.
