Step 2
Load your media on the platen and slide it under the pinch rollers from either the front side or
the backside. The alignment rulers on the platen extension will help you to adjust the media
precisely.
Step 3
Then move the pinch rollers manually to the proper position. Be sure the pinch rollers must
be positioned above the grid drum. The white marks on the top trail will remind you where
the grid drums are (Figure 4-3).
Note:
Be sure that the media must
cover the paper sensors on the
platen when loading the media.
At least one of the two paper
sensors (Figure 4-2) should be
covered. Once the media covers
the sensor, the cutting plotter will
size the media width and length
automatically.

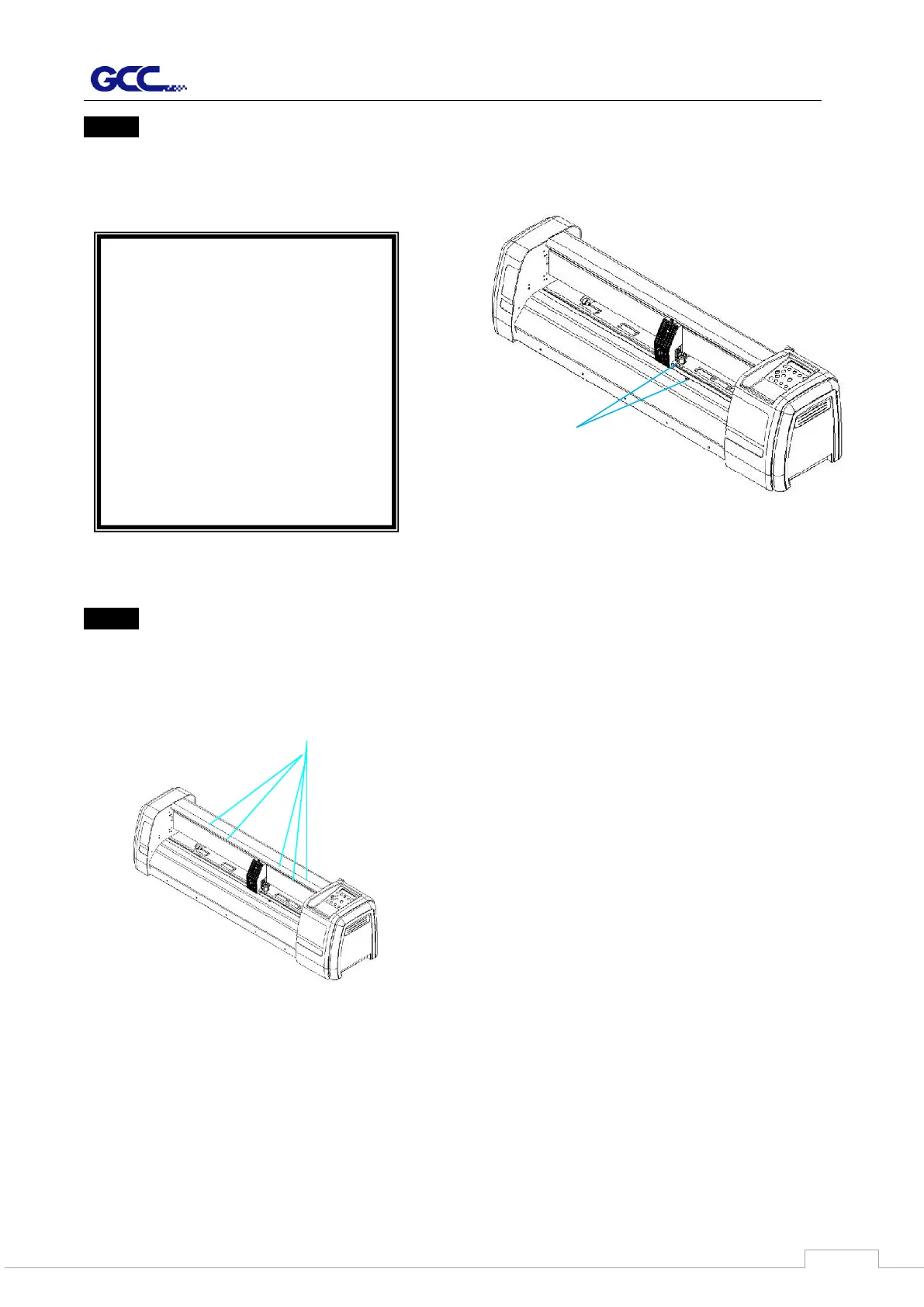

Figure 4-2
White marks
Figure 4-3
Paper sensors
