Chapter 1: Installation and wiring
14 Vigilant VS1 and VS2 Technical Reference Manual

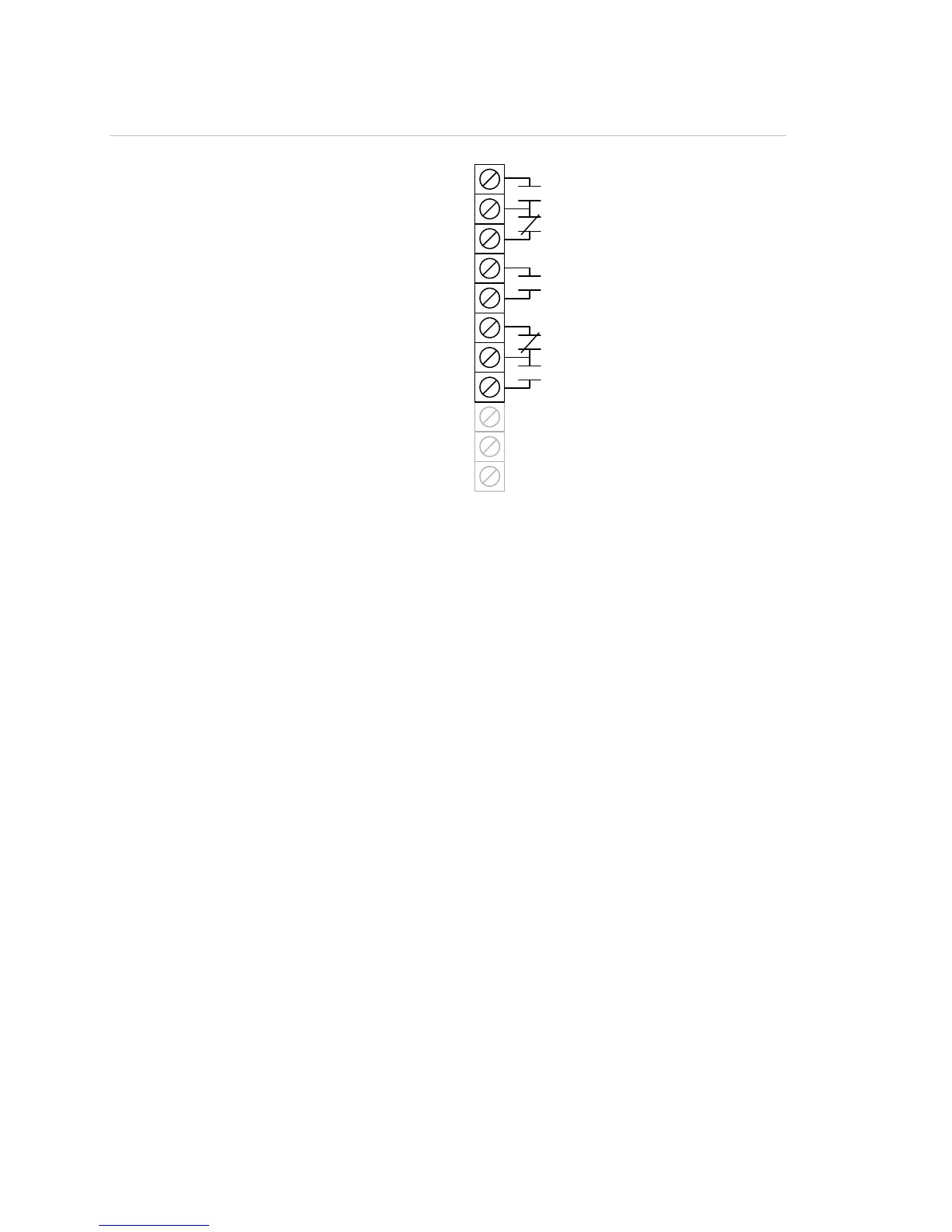

Figure 20: Relay wiring terminals
TB3
Common trouble
relay
Common supervisory
relay
Common alarm
relay
N
O
NC
NC
N
O
N
O
Auxiliary/Smoke
power output
• All relays circuits are unsupervised. Must be connected only to a power-limited source.
• Alarm and trouble: Form C, 24 VDC at 1 A resistive
• Supervisory: Form A, 24 VDC at 1 A resistive
• Diagram is shown with the panel in a normal state.
Remote annunciator wiring (TB4)
The control panel provides a connection for up to eight remote annunciators.
Circuit specifications
• Class B or Class A
Note: The Vigilant VS1 panel requires the SA-CLA card to support Class A and
redundant Class B circuits. Refer to installation sheet P/N 3101094.
• Circuit voltage: 2.55 V peak-to-peak average
• Circuit current: 30 mA max.
• Circuit impedance: Up to 8 annunciators or 4,000 feet
(1,219 m) of 18 AWG wire
• Circuit resistance: 90 Ω
• Circuit capacitance: 0.3 µF
• Ground fault impedance: 0 to 5 kΩ
