Appendix D: Applications
252 Vigilant VS1 and VS2 Technical Reference Manual
Add/Remove Zone: As required
Add/Remove NAC: Add all polarity reversal modules used to activate sounder
bases
Add/Remove Device: Add all alarm signal initiating devices
In-suite signal silence applications
This section provides high level instructions for creating an in-suite signal silence
application based on the use of correlation groups. Additional background material
and detailed instructions are also available. See:
• “What is in-suite signal silence?” on page 33
• “Programming in-suite signal silence” on page 83
• “What is a correlation group?” on page 32
• “Correlation group programming” on page 79

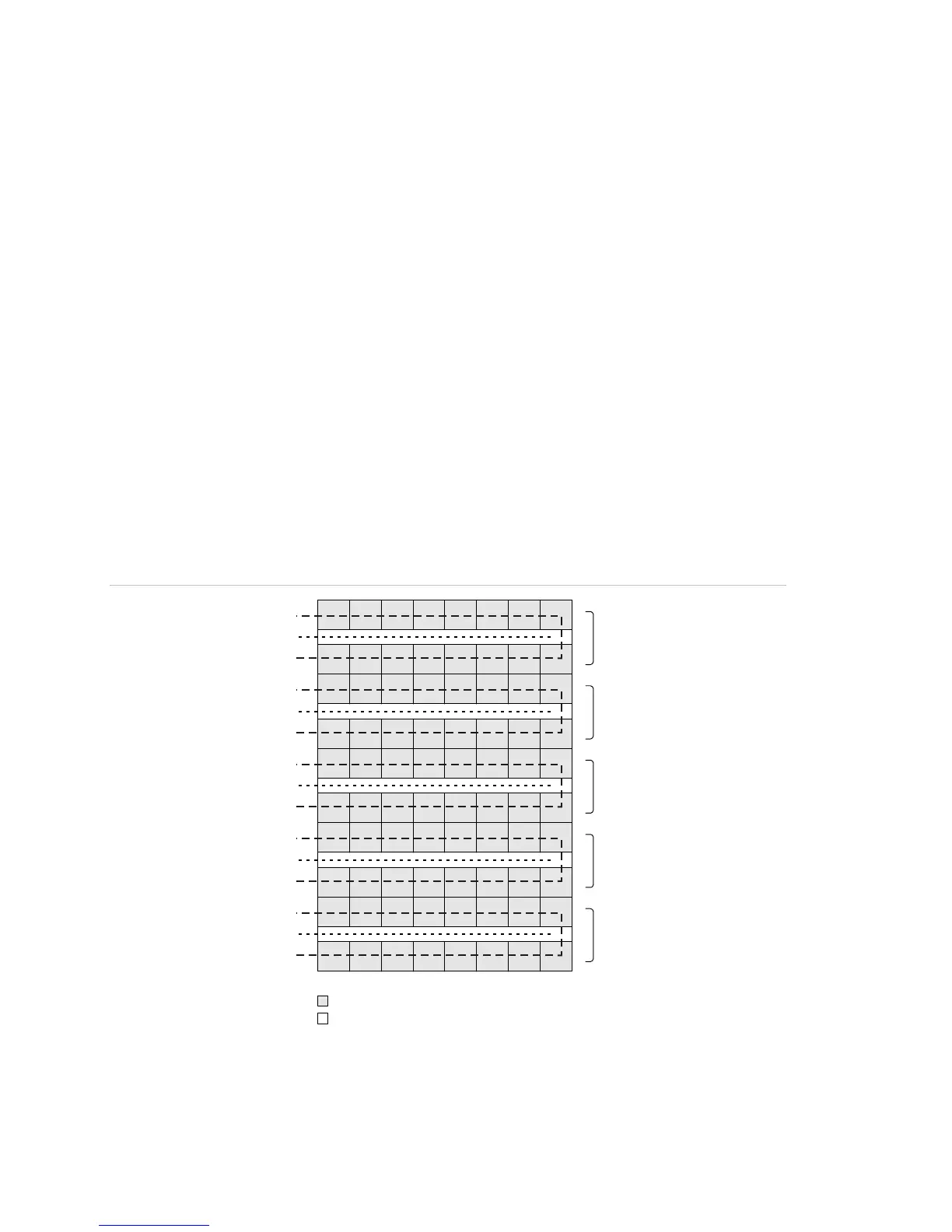

Figure 59: Audible signal circuit wiring for in-suite signal silence in a five-story building
NAC 1
NAC 2
NAC 8
NAC 7
NAC 9
NAC 10
NAC 6
NAC 5
NAC 4
NAC 3
Floor 5
Floor 4
Floor 3
Floor 2
Floor 1
Rooms
Hallwa
y
s
Figure 59 above illustrates in-suite signal silence wiring requirements in a sample
residential occupancy building with five floors. The illustration shows the following:
