DR60
Digital Recorder
Chapter 11: Wiring Diagrams
This chapter contains the all the possible wiring diagrams for the analogue inputs. For
further details on the inputs, refer to Installation Chapter
1 Connection Diagrams of the Voltage Inputs
The DR60 provides the capability for making some different voltage signal connections
for a 3-phase circuit:

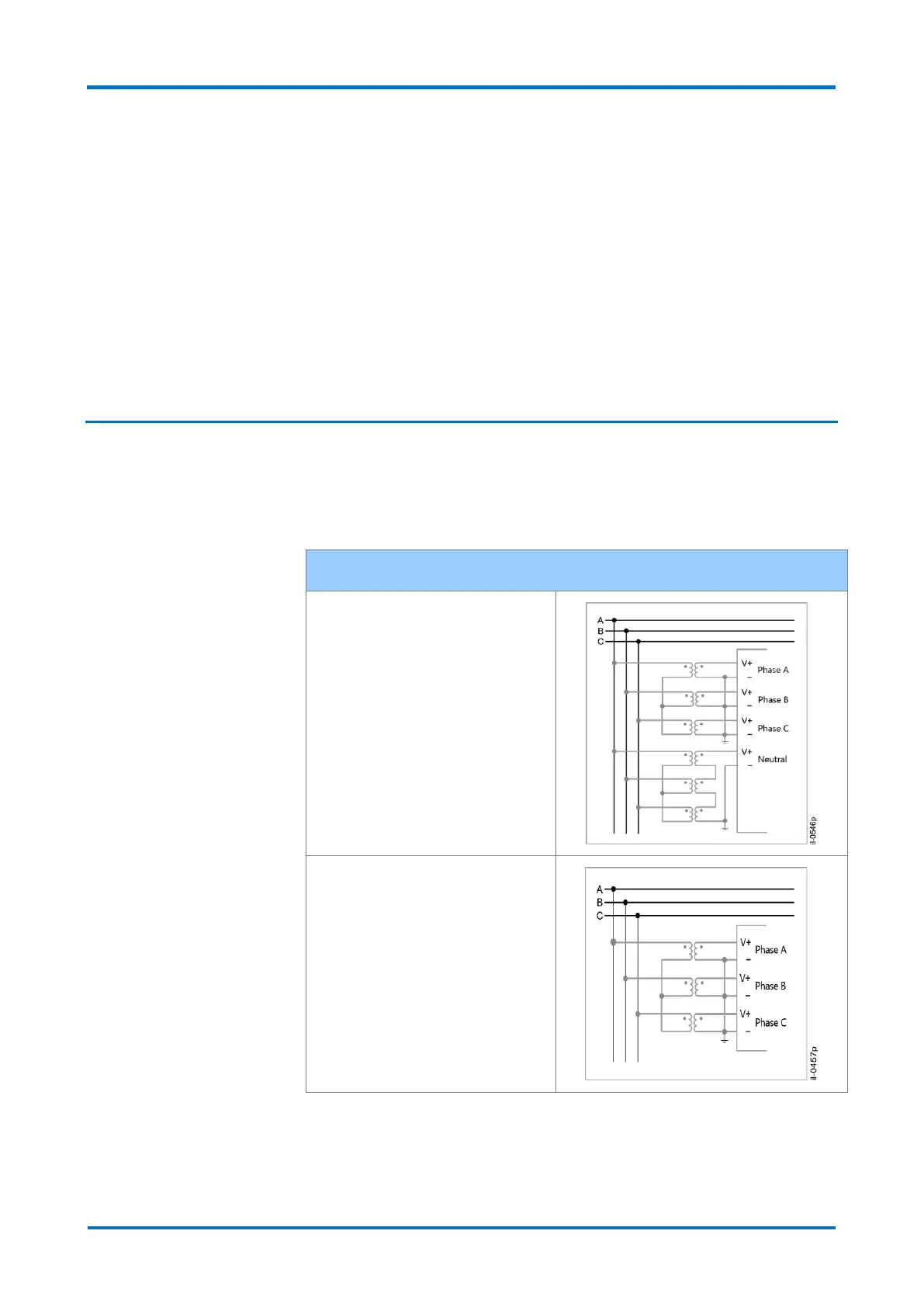

Connection diagram of the voltage inputs
4-element connection: in this
case, the values shown are
equivalent to the voltages of
phases A, B and C, and to the
neutral voltage applied to the
equipment.
3-element (Phases A, B and C)
connection: in this case, the
fourth element is derived of the
values measured by the other
elements. The three elements are
equivalent to the values applied to
the equipment
