GE DR60 - Binary Inputs and Outputs

DR60
92
DR60-TM-EN-2A

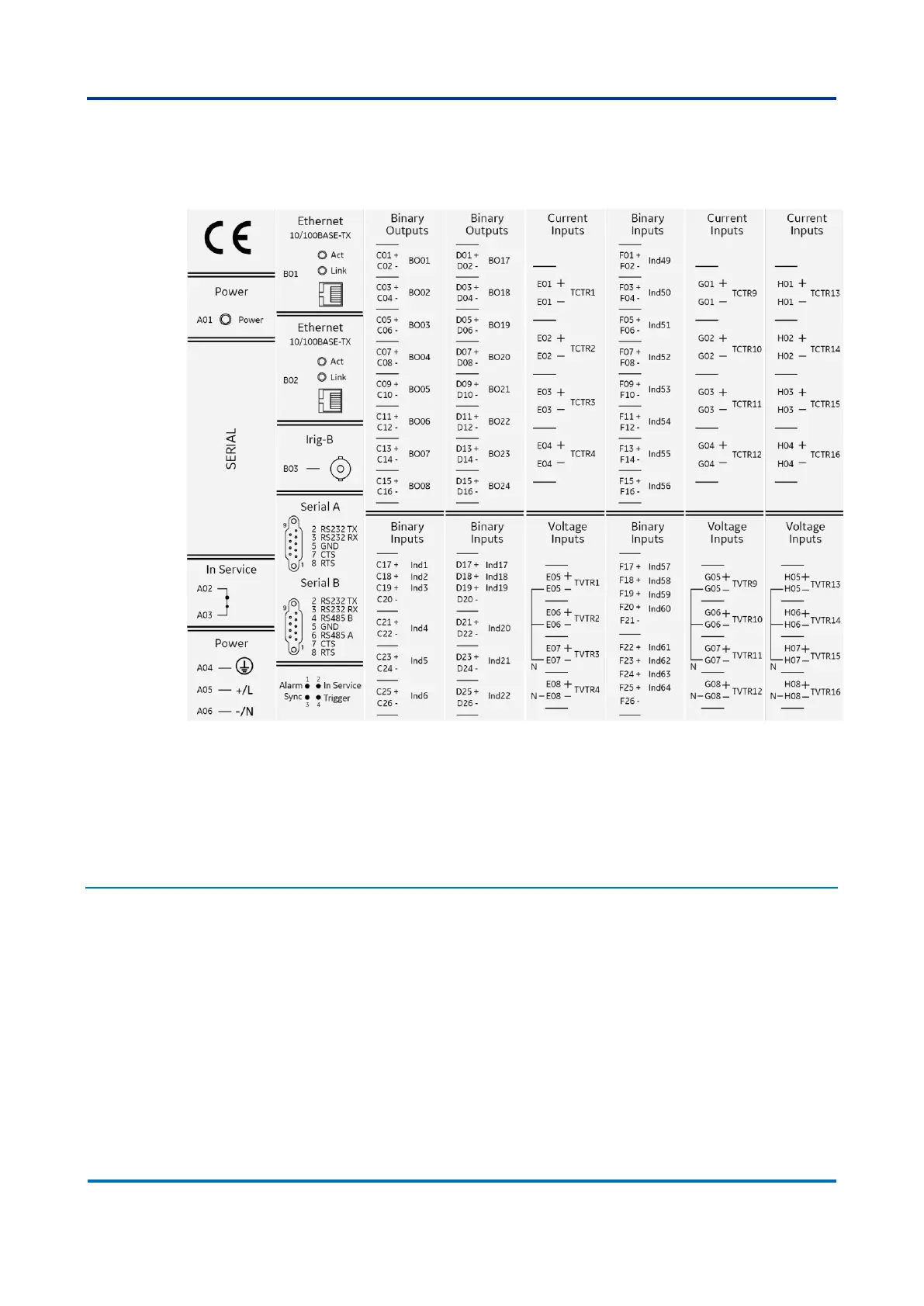

Example of the binary and analog channels name tags
4.8 Binary Inputs and Outputs
The binary inputs and outputs are supported in slots C to H of the DR60. There are two
different types of boards for the binary slots C and D, the first has 8 BO and 6 BI and the
second board has 16 BI. It is possible to use either board in any slots from C to H.
A B C D E F G H
