Module overview
Different modules measure different parameters. See below for module descriptions and
features.
Patient Side Module E-PSMW

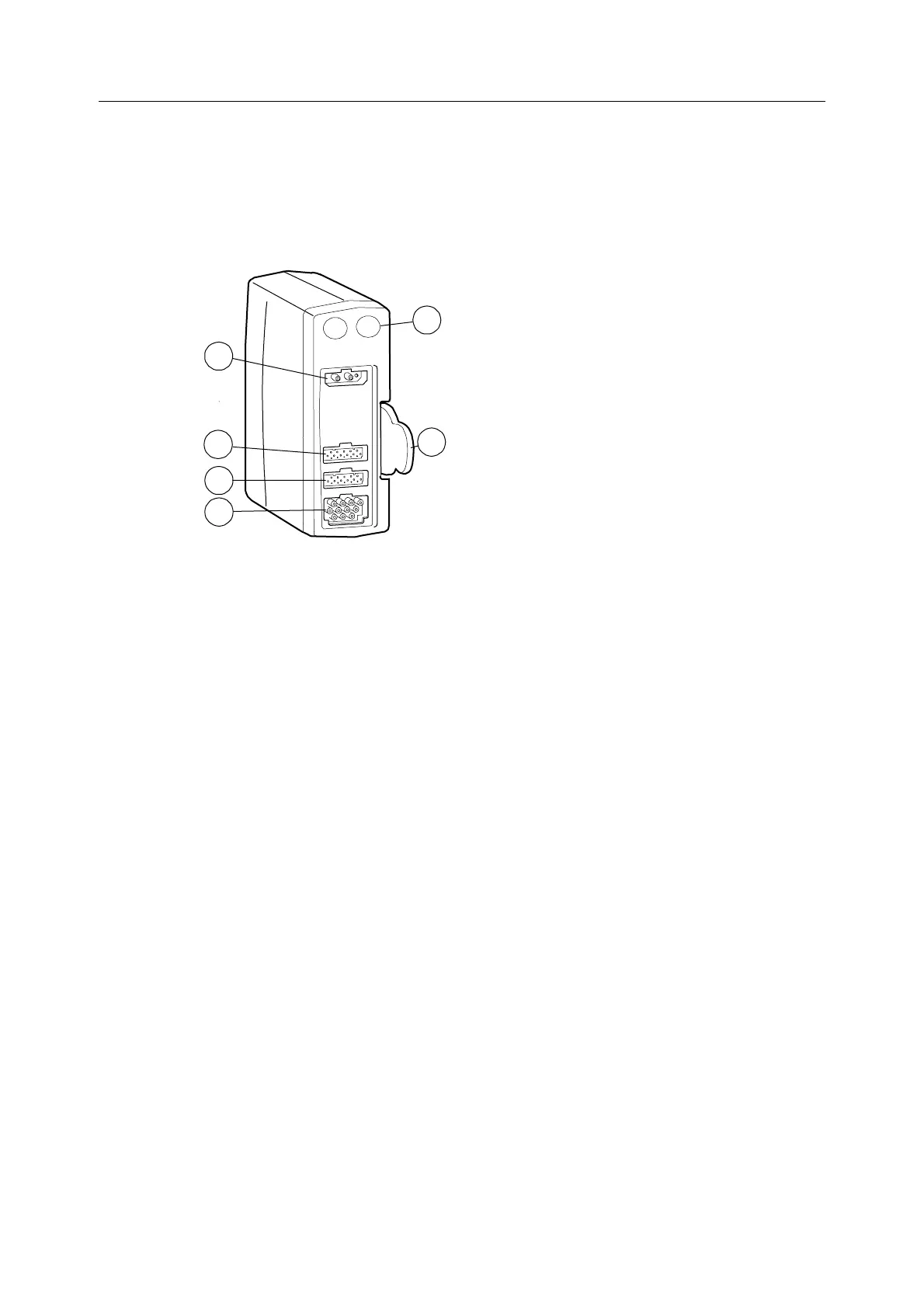

Figure 2-4 Module E-PSMW
(1) Module keys
(2) NIBP connector
(3) Temperature connector: 2-channel measurement
(4) SpO
2
connector
(5) ECG (3/5 lead) and impedance respiration connector
(6) Tab for removing the module
6
1
2
4
3
5
