GE Healthcare B30 - Patient Side Module E-PSMPW

System description
2-5
Patient Side Module E-PSMPW

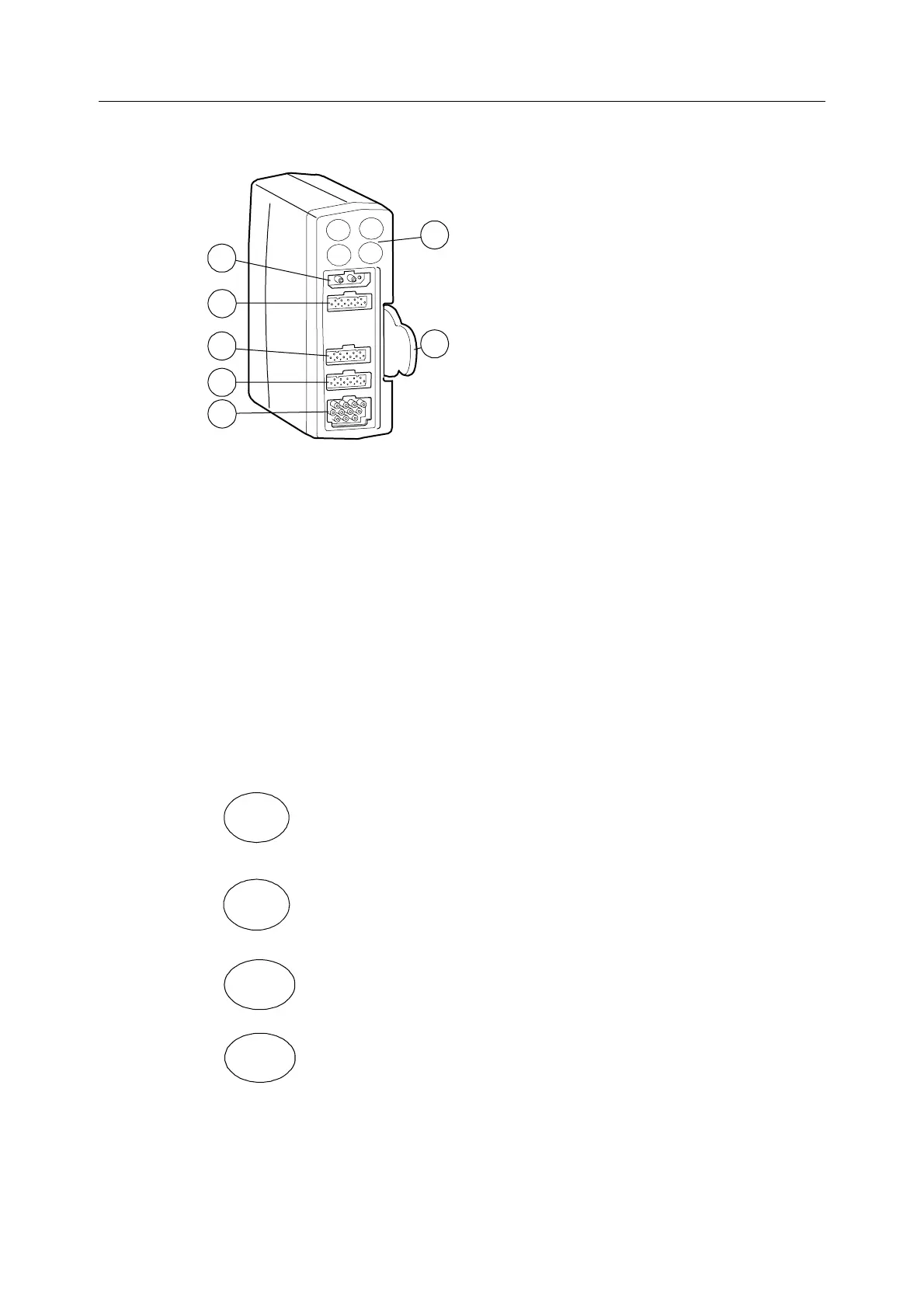

Figure 2-5 Module E-PSMPW
(1) Module keys
(2) NIBP connector
(3) Invasive blood pressure connector: 2-channel measurement
(4) Temperature connector: 2-channel measurement
(5) SpO
2
connector
(6) ECG (3/5 lead) and impedance respiration connector
(7) Tab for removing the module
Module keys
The E-PSM(P)W modules have the following direct function keys:
For starting or stopping the NIBP
automatic cycling.
For starting or stopping the NIBP
manual cycling.
For zeroing pressure channel P1
NOTE: with E-PSMPW only.
For zeroing pressure channel P2
NOTE: with E-PSMPW only.
7
1
2
4
5
3
6
Auto
On/Off
Start
Cancel
Zero P1
Zero P2
