Appendix G: Accessories
263
WARNING Make sure that the patient is not connected to the ventilator and that the
device is in Standby mode, or shut down.
1. Loosen both of the rear brackets mounting plate tightening screws.
2. Pull out the locking pin and hold it while sliding the mounting plate from the
mounting bracket.

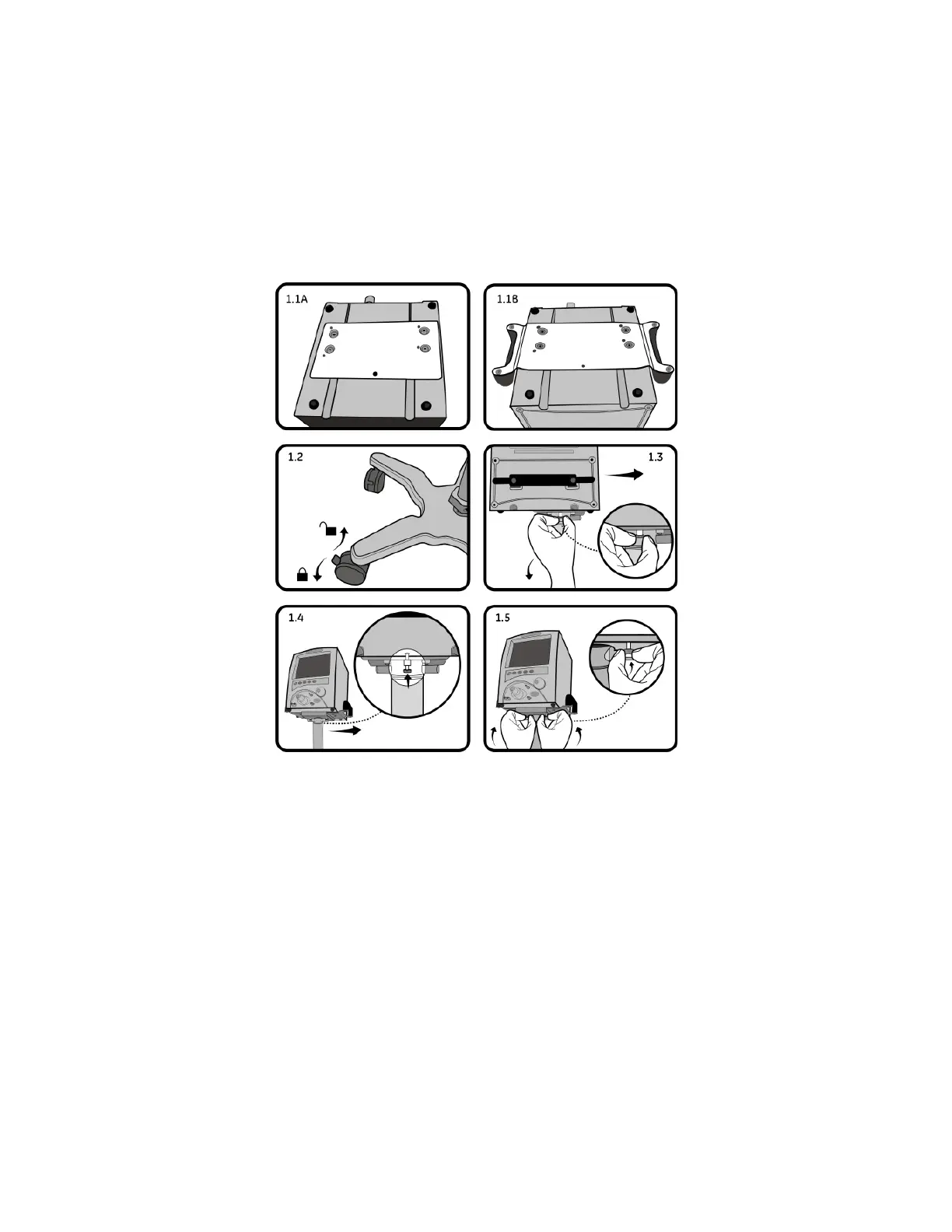

Figure 198: Mounting and Dismounting the Ventilator From the Roll Stand
CONNECTING THE OPTIONAL BATTERY HOLDER ACCESSORY P/N:
M1162050
1. Fasten the Battery Holder mount screws to the post using a Philips
screwdriver (See Figure 199).
2. Using the Adjustment screw at the end of the Battery holder, tighten or
loosen the screw to the required degree as to provide optimal support to the
External Battery size.
3. Peel the transparent layer of both 2 of the pair-strips at the inside of the
Battery Holder, to expose adhesive.
4. Place the External Battery inside the holder and adjust the holder to its size,
fastening the screw at the end of the holder.
