78
NOTE The PSV value cannot be set to a value greater than P(Limit) – PEEP
or a maximum value of 60 cmH2O.
4. Press the Control Knob to confirm and accept the settings
ADJUSTING PEEP
The PEEP level of the patient is adjusted to a set value during the ventilation.
To adjust the PEEP:
1. Select PEEP from the second row on the Main screen (Figure 56):

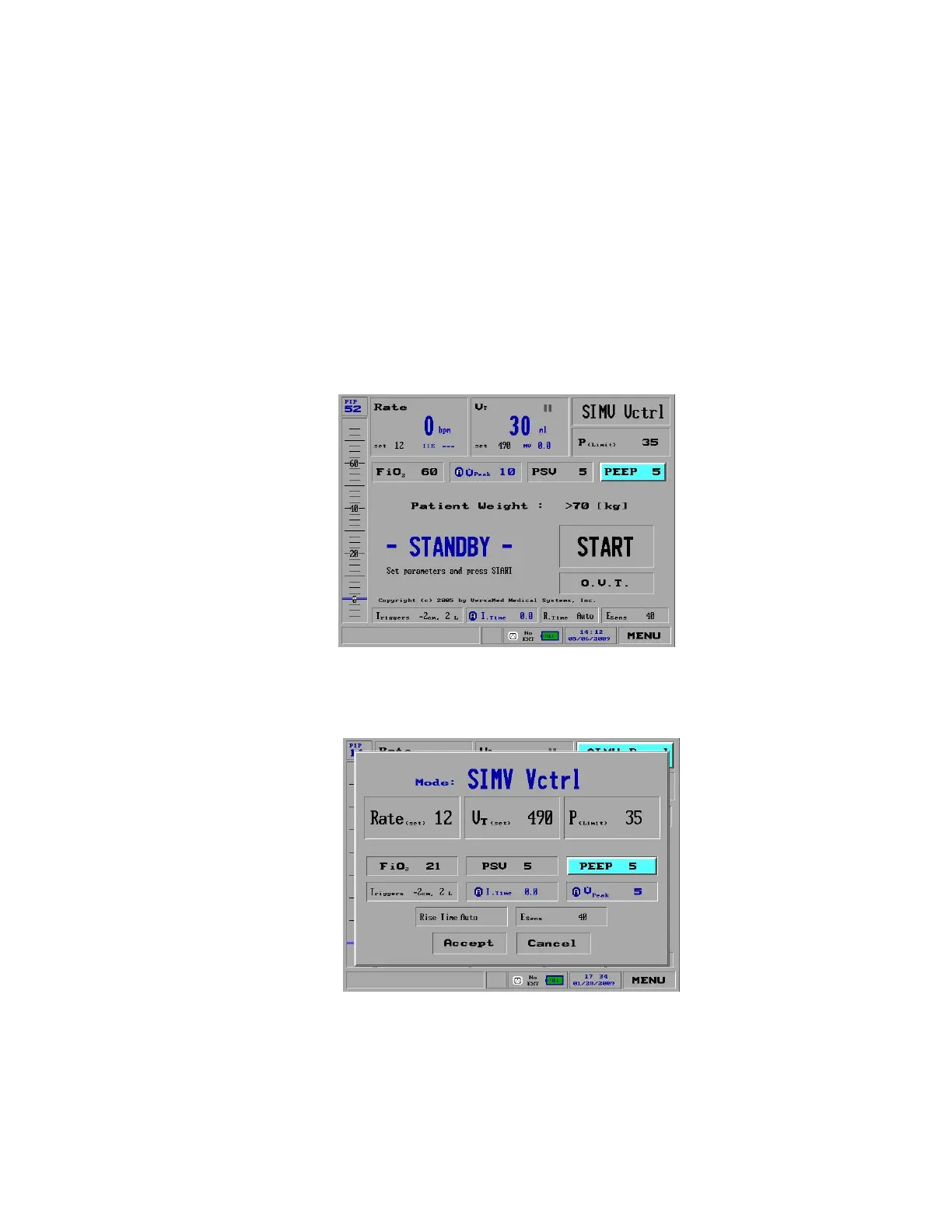

Figure 56: PEEP Selected on the Main Screen
Or select the PEEP option in the Mode Parameters screen (Figure 57)
Figure 57: PEEP Selected on the Mode Screen
2. Press the Control Knob. The set PEEP pop-up window appears:
