NOTE This circuit is appropriate for delivering aerosolized medication (MDI or
nebulization)
Instructions for Use

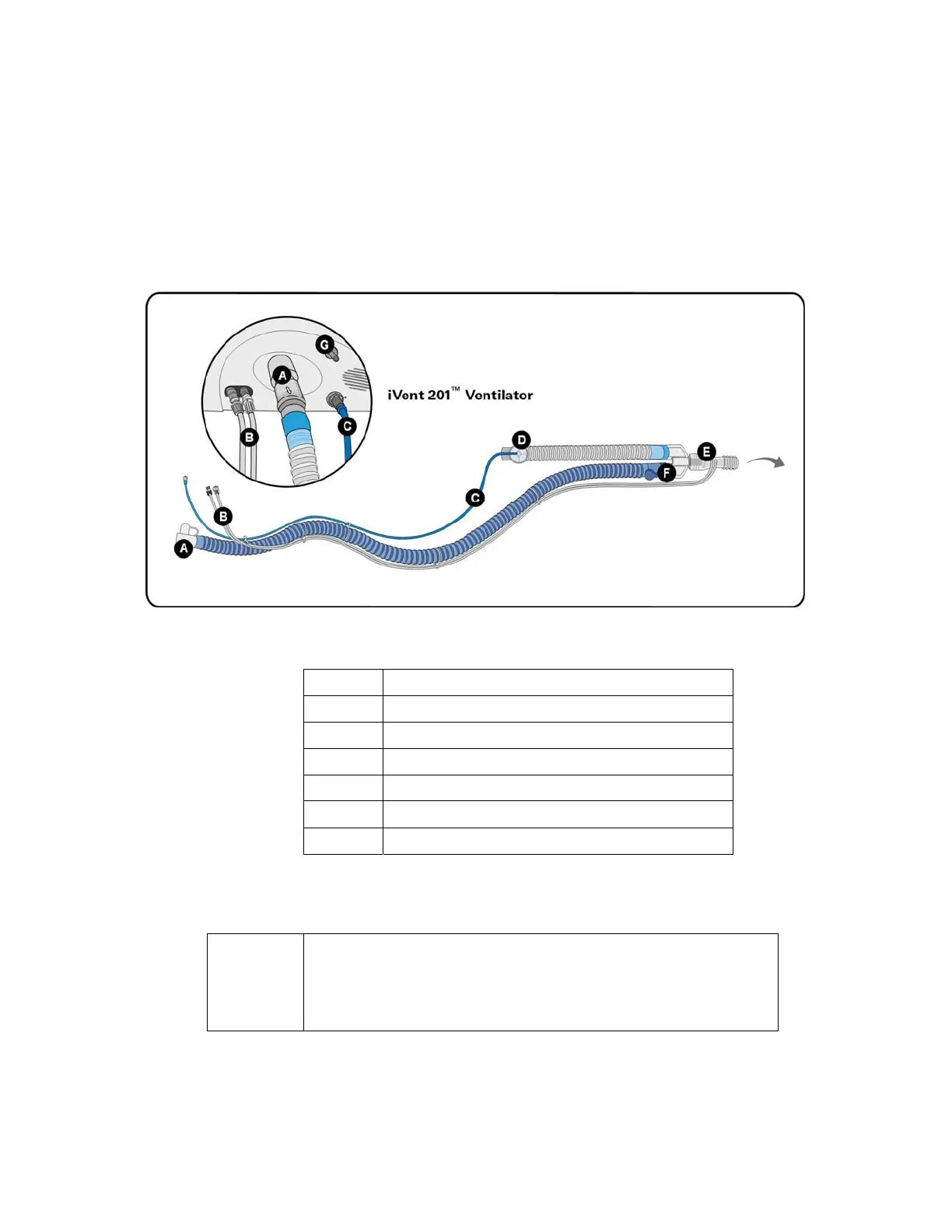

Figure 177: iVent
TM
201 components
A Ventilator outlet
B Flow sensor tube
C External exhalation valve control tube
D External exhalation valve
E Flow sensor
F Wye connector
G Nebulizer
1. Connect the Inspiratory limb (Figure 177) to the iVent
TM
201 outlet.
NOTE If using a humidifier see "Other Connections" page 44.
See manufacturer’s instructions for the correct use and application of the
humidifier.
2. Connect the flow sensor tubing (clear tubes, B in Figure 177) to their ports.
The male and female luer connectors on the flow sensor tubing ensure
correct connections.
