3 Operating the iVentTM201 – Setting Modes and Parameters
73
3. Turn the Control Knob to choose the required numeric pressure value. The
high pressure alarm is adjusted automatically to the value PLimit + 5
cmH2O. It can also be set to any required value using the Alarm menu. For
more information see page 148.)
4. Press the Control Knob to confirm and save the settings.
ADJUSTING FIO2
The O2 percentage delivered to the patient is adjustable.
NOTE Adjusting FiO2 can be performed only when the Oxygen Supply -
High option is selected in the Advanced Setting menu (For more
information see page 95)
To adjust the FiO2:
1. Select the FiO2 setting from the top left of the Main screen (Figure 45).

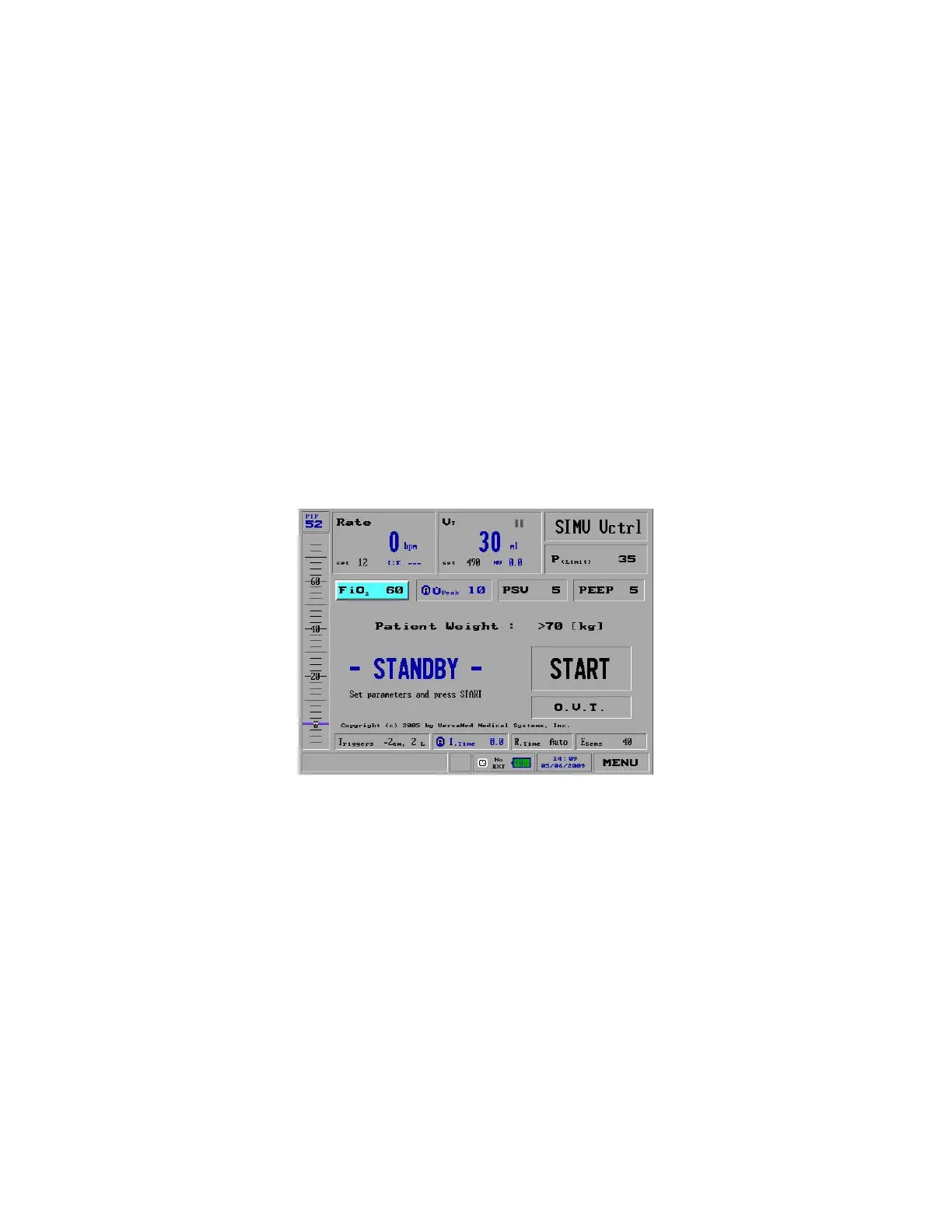

Figure 45: FiO2 Selected on the Main Screen
Or select the FiO2 on the Mode Parameter screen (Figure 46):
