GE MEDICAL SYSTEMS
D
IRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
Chapter 4 Functional Checks 4-39
4-8-2-8 OP Panel Encoder Assy, TGC Knob Set, OP Panel LCD Encoder Assy, Menu Encoder Assy
Check if the each button operates properly.
Check if encoder knobs are in the center.
Check if the keycap set can not be removed easily.

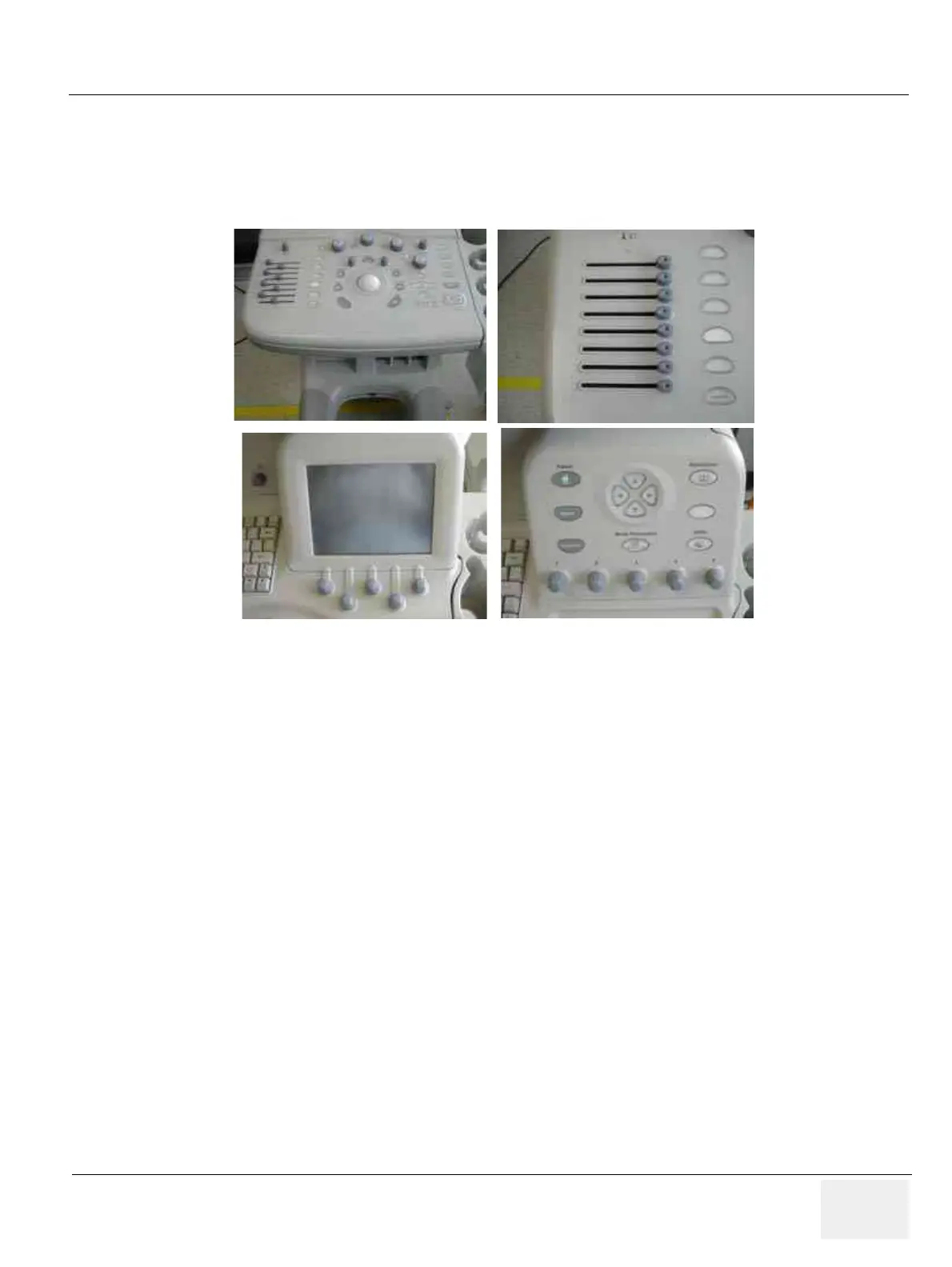

Figure 4-40 Keyboard Assy
