4-40 Section 4-8 - Mechanical Function Checks
4-8-2-9 Monitor Cover Set
• Check if the FRU parts are assembled tightly by naked eye and hands.
• Check if there are dents, scratches, or cracks on the FRU parts.
• Check if screws are in place.
• Check if the each button of the monitor operates properly.

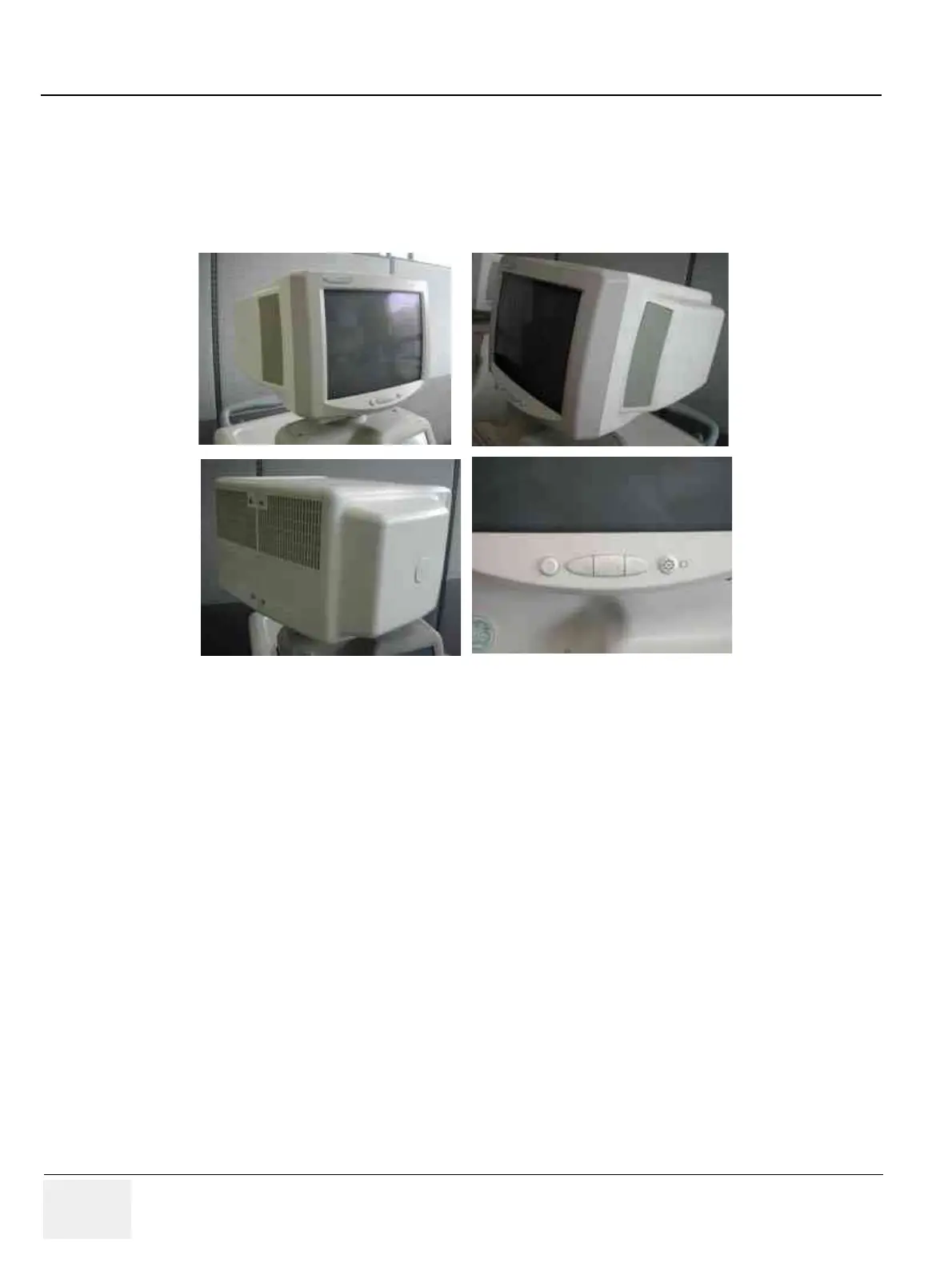

Figure 4-41 Monitor Cover Set
