GE MEDICAL SYSTEMS
D
IRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-185
8-11-1-1 System Checks (cont’d)
c.) Right-Click on the “My Computer” icon on the Windows desktop. Select “Manage” you should
see a screen like below. Then left click on the driver assigned currently to G:, right click on
Change Drive Letter and Path
NOTE: In case of BTO5, left-click on the “Start” button, then go to “Settings”->”Control Panel”-
>”Administrative Tools”->”Computer Management”

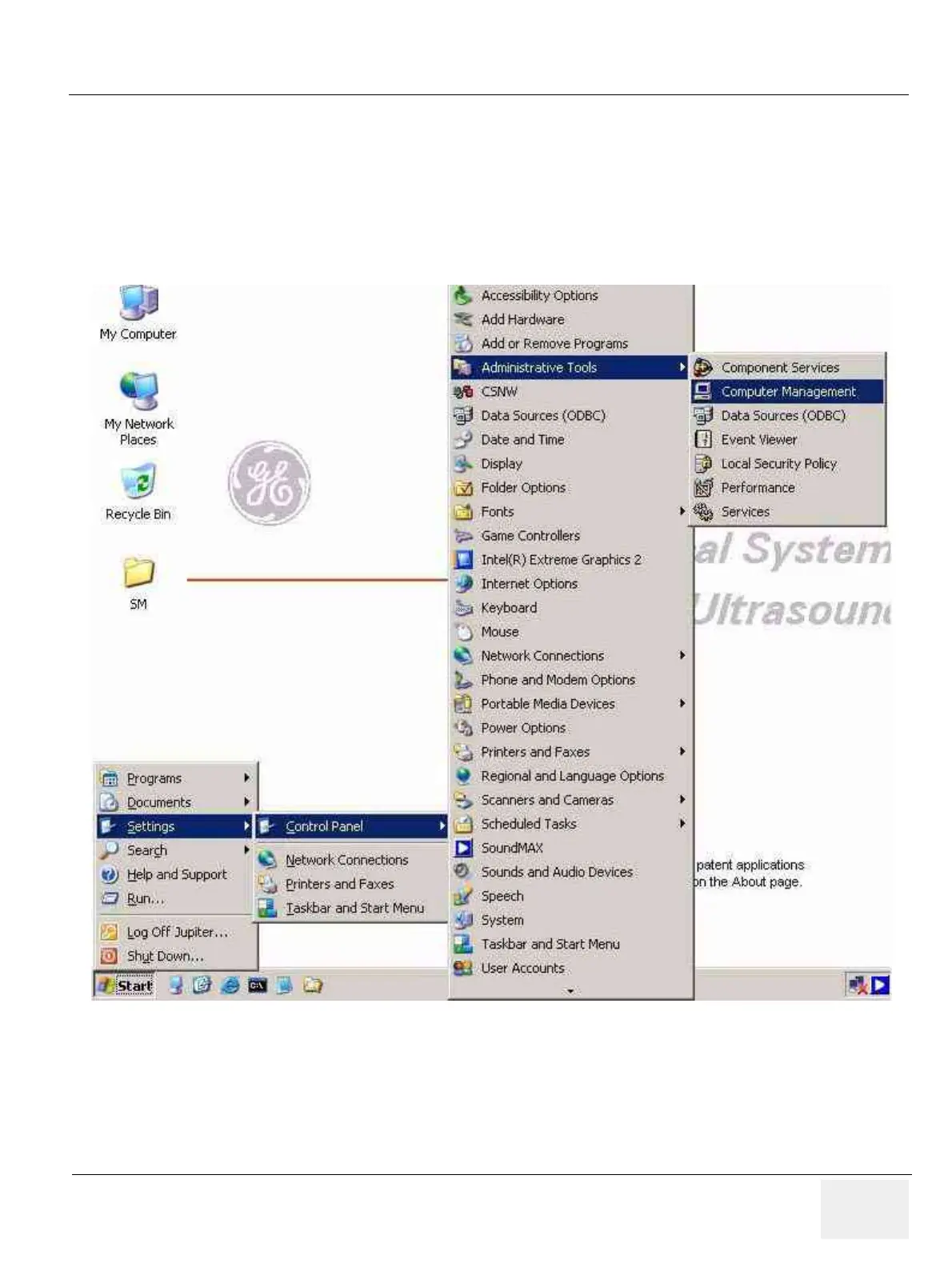

Figure 8-226 Path to Computer Management
To Next Page
