DIRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
8-194 Section 8-11 - Installing Base Software Load Image
8-11-1-3 DMC Checks (DMC User Only) (cont’d)
10.)Right click on port settings.
11.)Click on advanced .. button.
12.)Specify COM port number is COM4. as shown in refer to Figure 8-244.

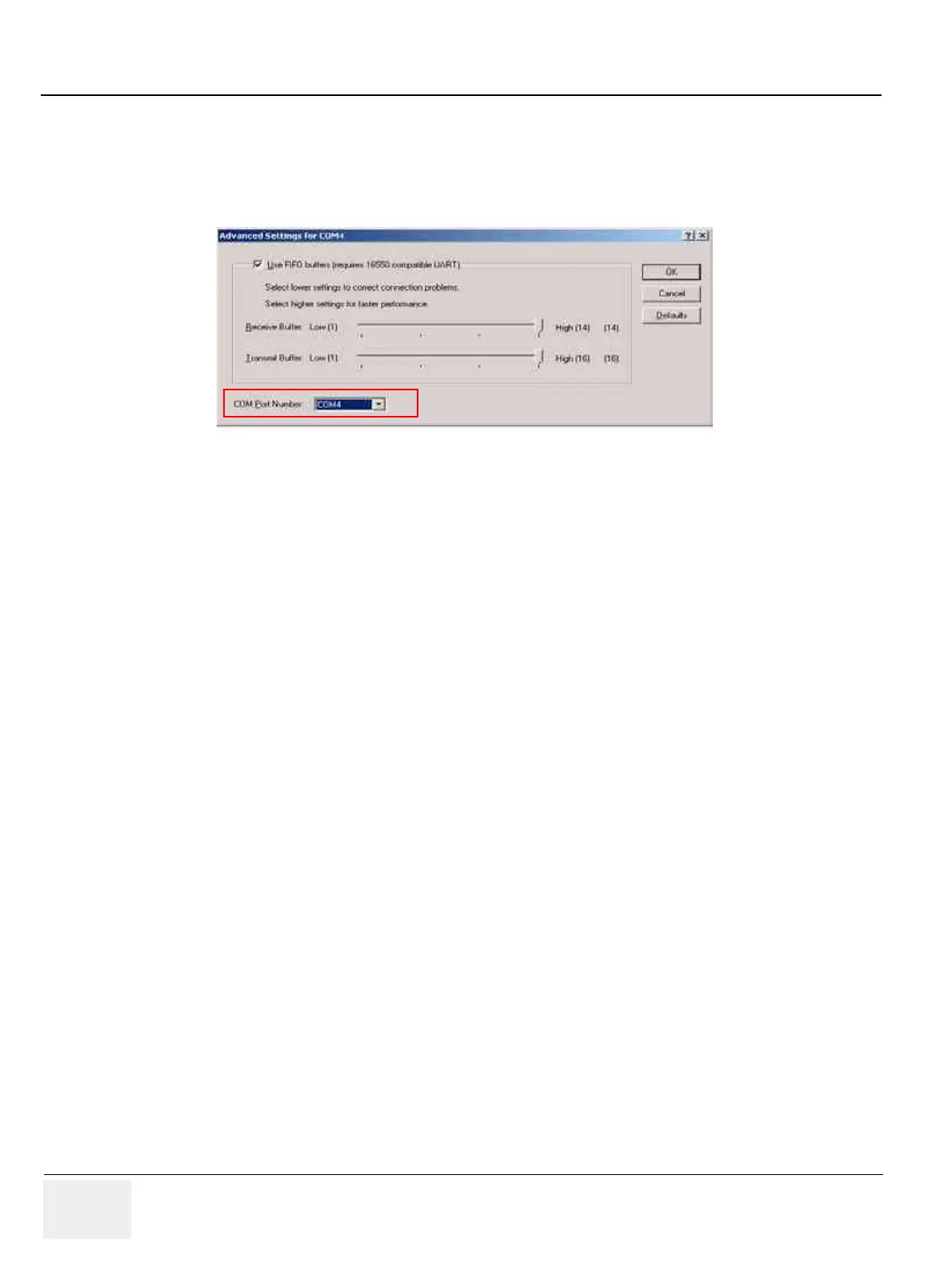

Figure 8-244 Advanced Settings for COM4
