GE LOGIQ 5

GE MEDICAL SYSTEMS
DIRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
8-198 Section 8-11 - Installing Base Software Load Image
8-11-3-2 Setting Computer Name
NOTE: If the "Save" is NOT performed, you can NOT enter Patient screen and NOT perform Export/Import.
1.) Touch Utility-> Connectivity
2.) Operator Login Window appears. Select ADM(Administrator) for operator field.Click OK button.
3.) Click on Tcpip tab
4.) Check if Computer Name, IP Address, Subnet Mask, and other parameters are proper.
5.) Click on Save button.
6.) Click OK for confirmation dialog box.
7.) The system will power OFF automatically.
8.) Turn on the system for functional checks.

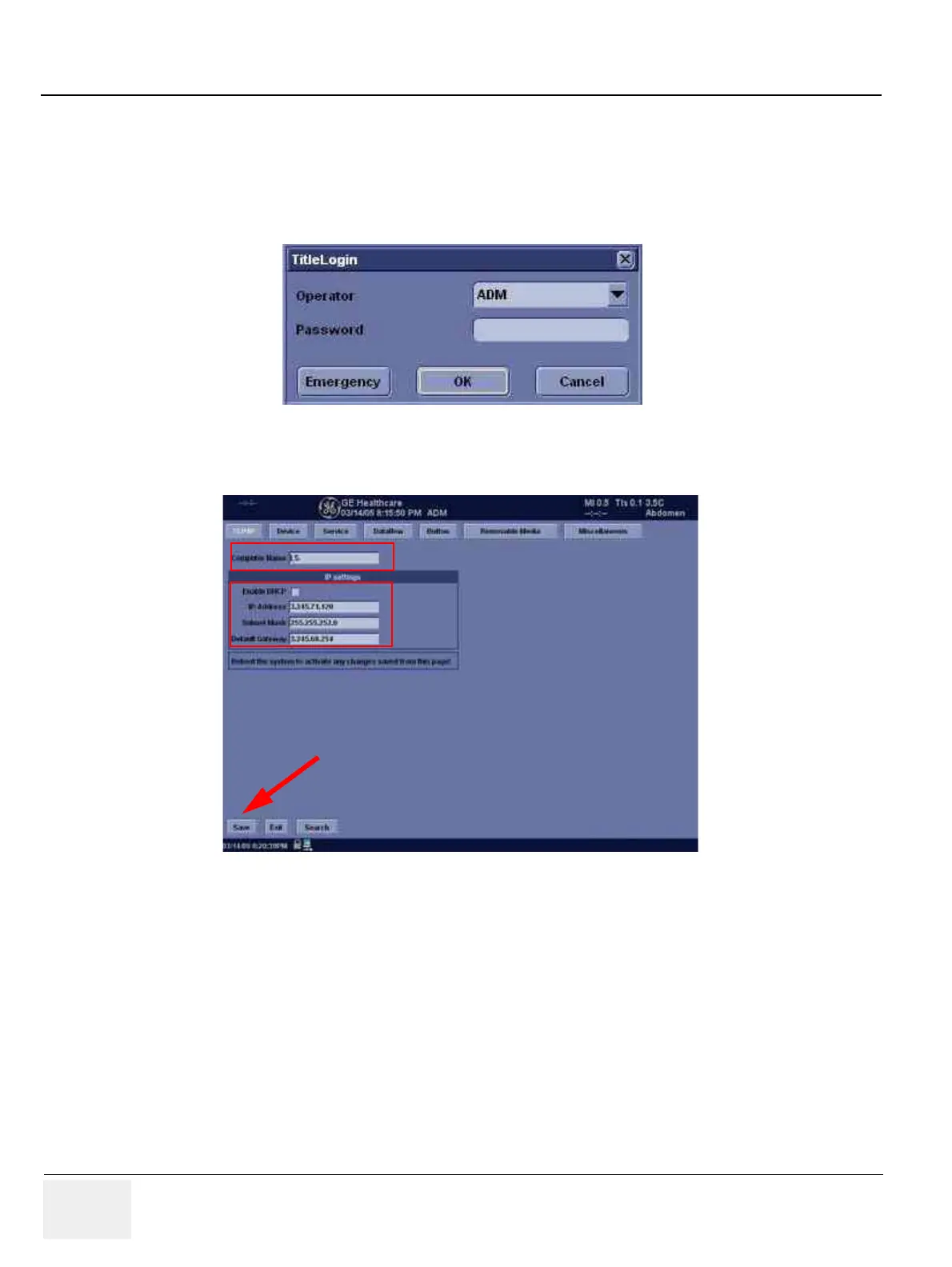

Figure 8-249 Set Computer Name
Figure 8-250 TCPIP tab
