GE MEDICAL SYSTEMS
D
IRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-199
8-11-3-3 Functional Checks for Service Platform (Diagnostic Program)
NOTE: After performing diagnostics, shut down and restart to make the system working properly.
1.) Make sure that the wrench icon is shown at the bottom of the scan screen. Click on the wrench icon
to activate. It will take about ten (10) seconds for activating.
2.) Make sure that CAPS is not selected (should be dimmed)
for password entry performed later.
NOTE: If the following dialog box is shown on the monitor, select "Do not perform this check in the
future" and click on the Yes button. This dialog box will not be displayed for next time.

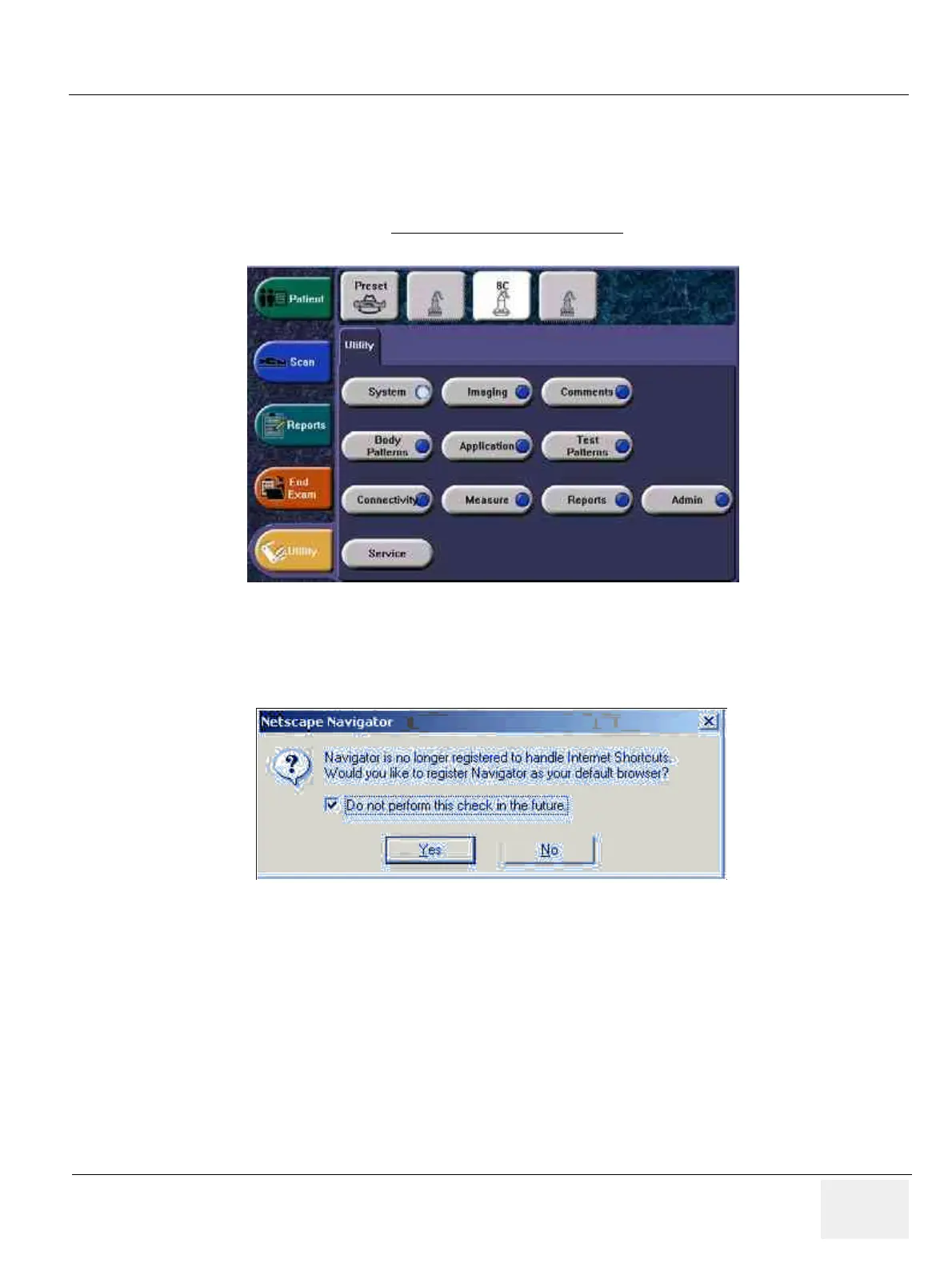

Figure 8-251 Functional Checks
Figure 8-252 Service Plarform
