General Procedures and Functional Checks
4-18 LOGIQ e – Basic Service Manual
5461614-100 English Rev. 6
Overview
In this section, the functional checks for are described.
Functional checks are used to verify that the product works as
intended. Functional checks may also be used during
troubleshooting.
Operator Panel

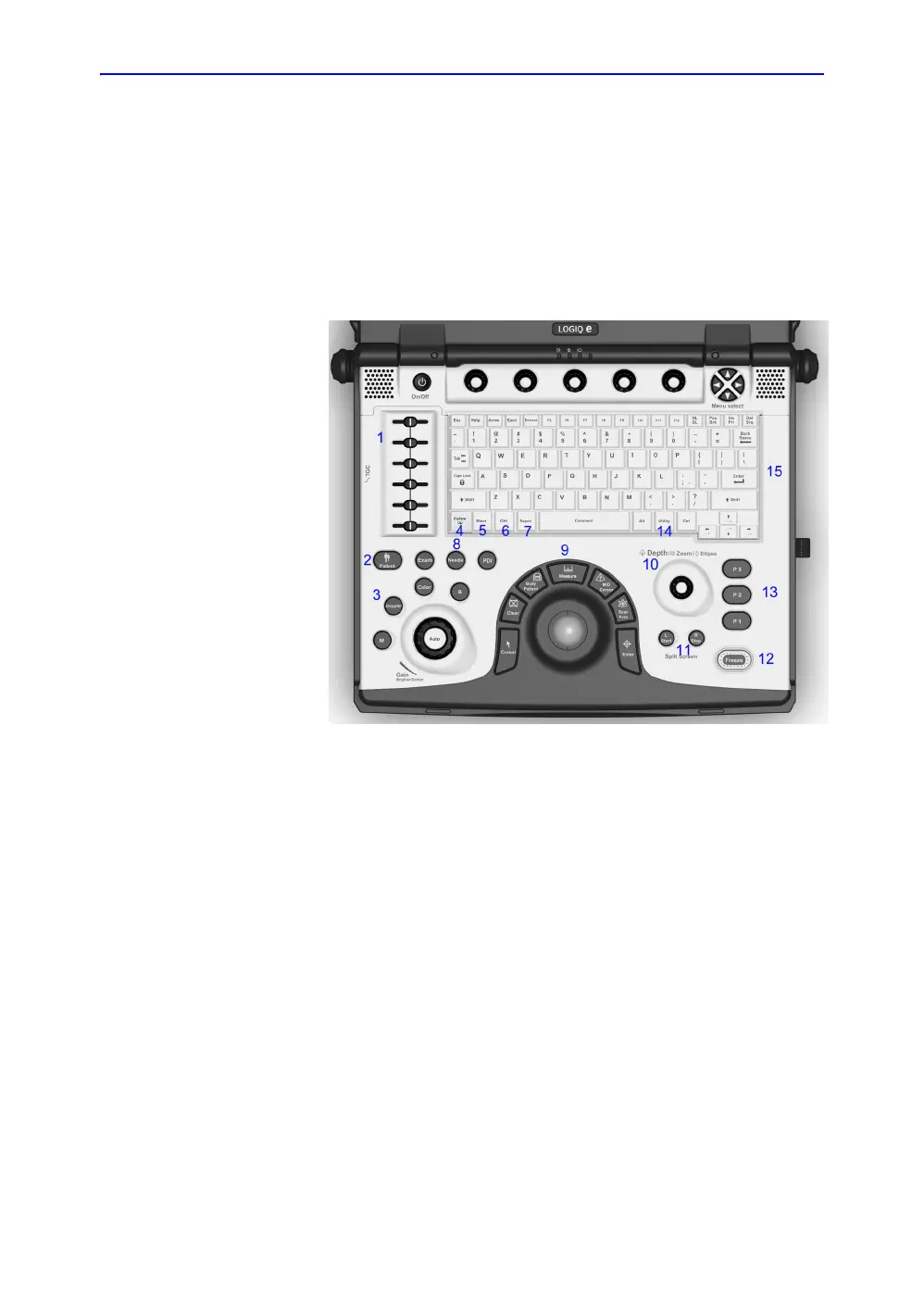

Figure 4-7. Control Panel Tour
1. Time Gain Compensation (TGC)
2. New Patient
3. Mode/Gain/Auto keys: M-Mode, Doppler (PW)
Modes, Color Flow (CF) Mode and B-Mode
4. Follow Up
5. Steer
6. Coded Harmonic Imaging (CHI)
7. Report
8. Additional Feature Keys: Exam, Needle, PDI
9. Imaging/Measurement Keys: Cursor, Clear,
Body Pattern, Measure, M/D Cursor, Scan
Area, Enter
10. Depth/Zoom/Ellipse
11. Start/Stop (L/R)
12. Freeze
13. Programmable Image Store Keys
14. Utility
15. Keyboard
