Functional checks
LOGIQ e – Basic Service Manual 4-19
5461614-100 English Rev. 6
Soft Menu Key Tour
In general, there are two types of softMenu keys: Paddle Switch
and adjustable knobs.

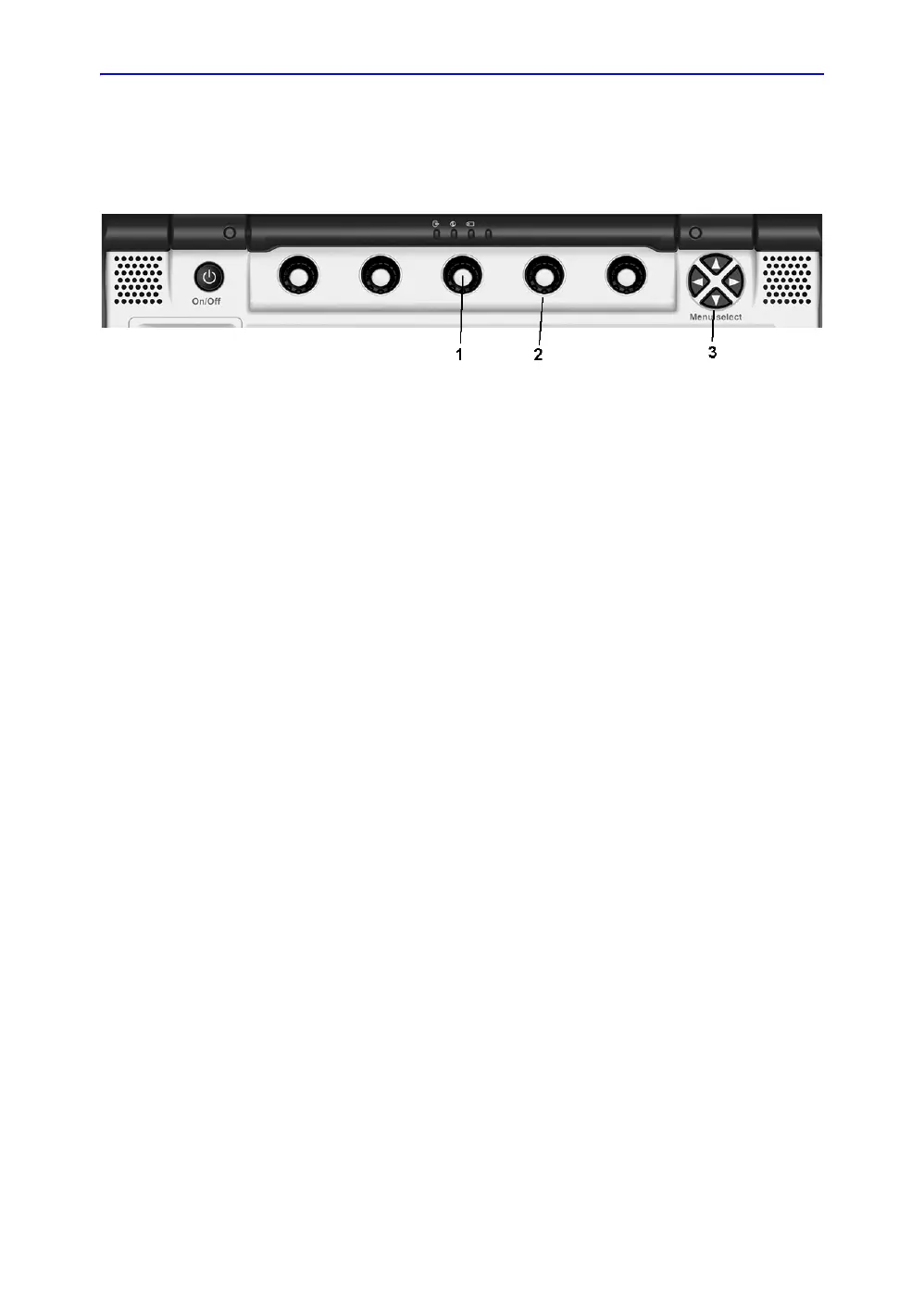

Figure 4-8. SoftMenu Key Tour
1. Press the adjustable knobs to toggle option menu between
line one and line two.
2. Rotate the adjustable knobs to adjust the corresponding
parameters.
3. The Paddle Switch is used to access and adjust the Sub
SoftMenu.
