System Configuration
LOGIQ e – Basic Service Manual 3-23
5461614-100 English Rev. 6
Peripheral/Accessories Connector Panel
LOGIQ e peripherals and accessories can be properly
connected using the side connector panel.

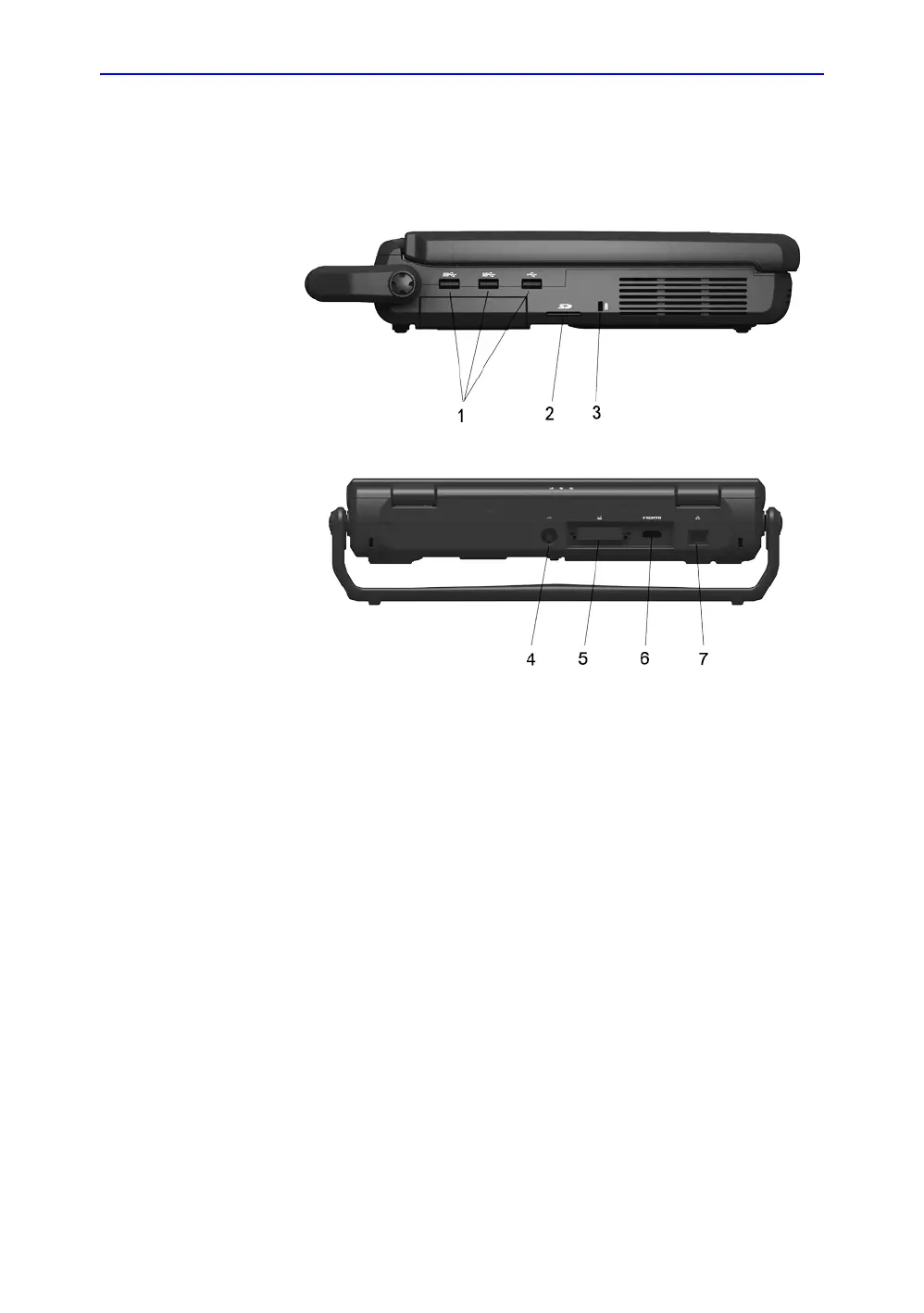

Figure 3-11. Left Side and Rear Connector Panel
1. 3 USB Ports for Printers (B/W, Color and USB), Memory
Stick, Footswitch, DVD-RW, Wireless LAN Adapter, USB
Hub, USB HDD, ECG
2. SD card port
3. Security lock
4. Port for DC In (AC Adapter)
5. Docking Port
6. HDMI Port
7. Network Port
NOTE: Each outer (case) ground line of peripheral/accessory
connectors are protectively grounded. Signal ground lines are
not isolated.
