General Procedures and Functional Checks
4-20 LOGIQ e – Basic Service Manual
5461614-100 English Rev. 6
Monitor Display

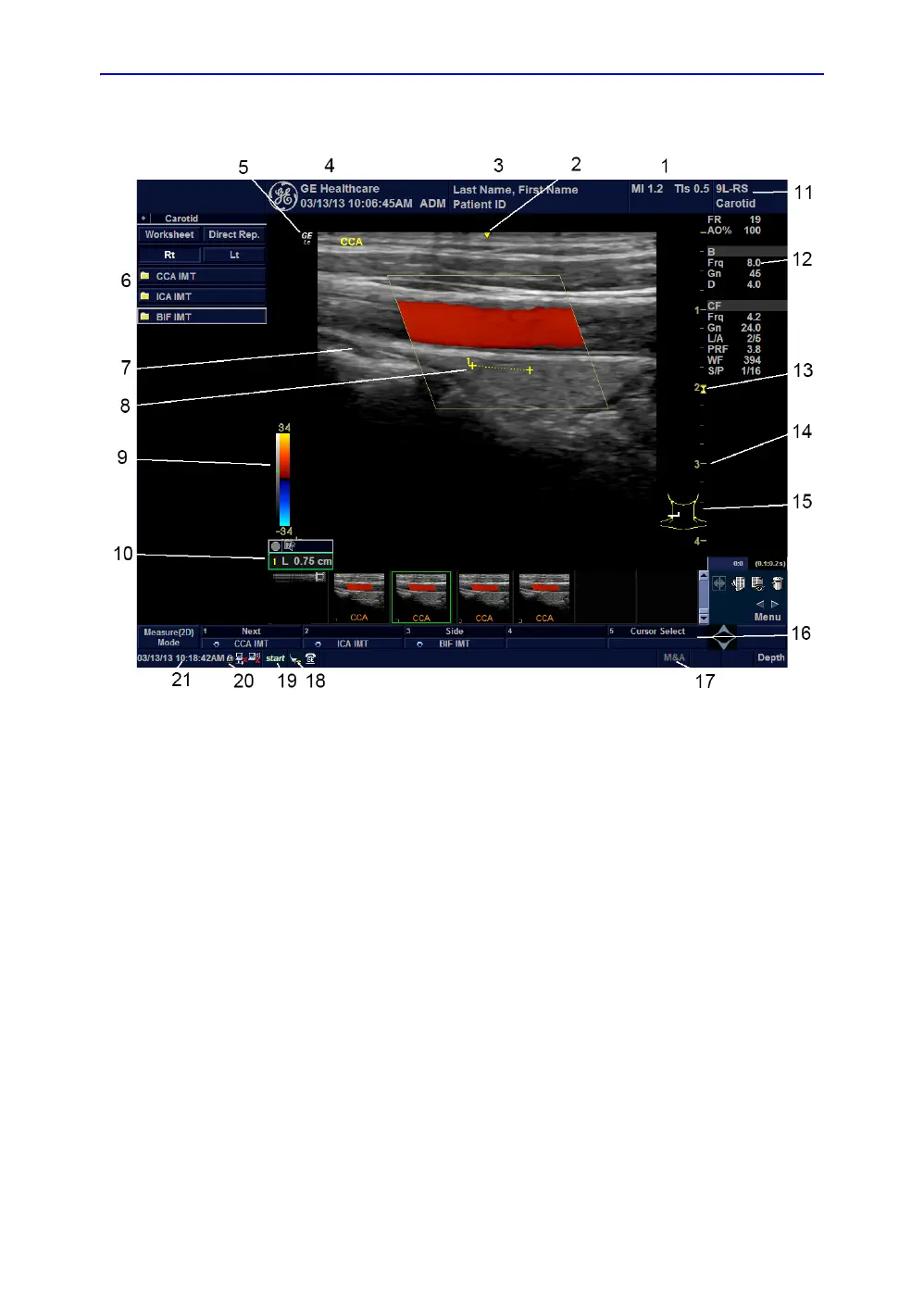

Figure 4-9. Monitor Display Tour
1. Power Output Readout
2. Center Mark for all linear and convex probes
(used for short axis needle guidance)
3. Patient Name, Patient Identification
4. Institution/Hospital Name, Date, Time, Operator
Identification, system status (real-time of frozen)
5. GE Symbol: Probe Orientation Marker
6. Measurement Window.
7. Image.
8. Measurement Calipers.
9. Gray/Color Bar.
10. Measurement Results Window
11. Probe Identifier. Exam Preset
12. Imaging Parameters by Mode.
13. Focal Zone Indicator
14. Depth Scale
15. Body Pattern.
16. Touch Panel.
17. Trackball Functionality Status: Scroll, M&A
(Measurement and Analysis), Position, Size,
Scan Area Width and Tilt
18. Plug icon
19. Start Menu Icon
20. Caps Lock On
21. Time
To Next Page
