M Mode Checks
Introduction
M Mode provides a display format that represents tissue motion
occurring over time along a single vector.

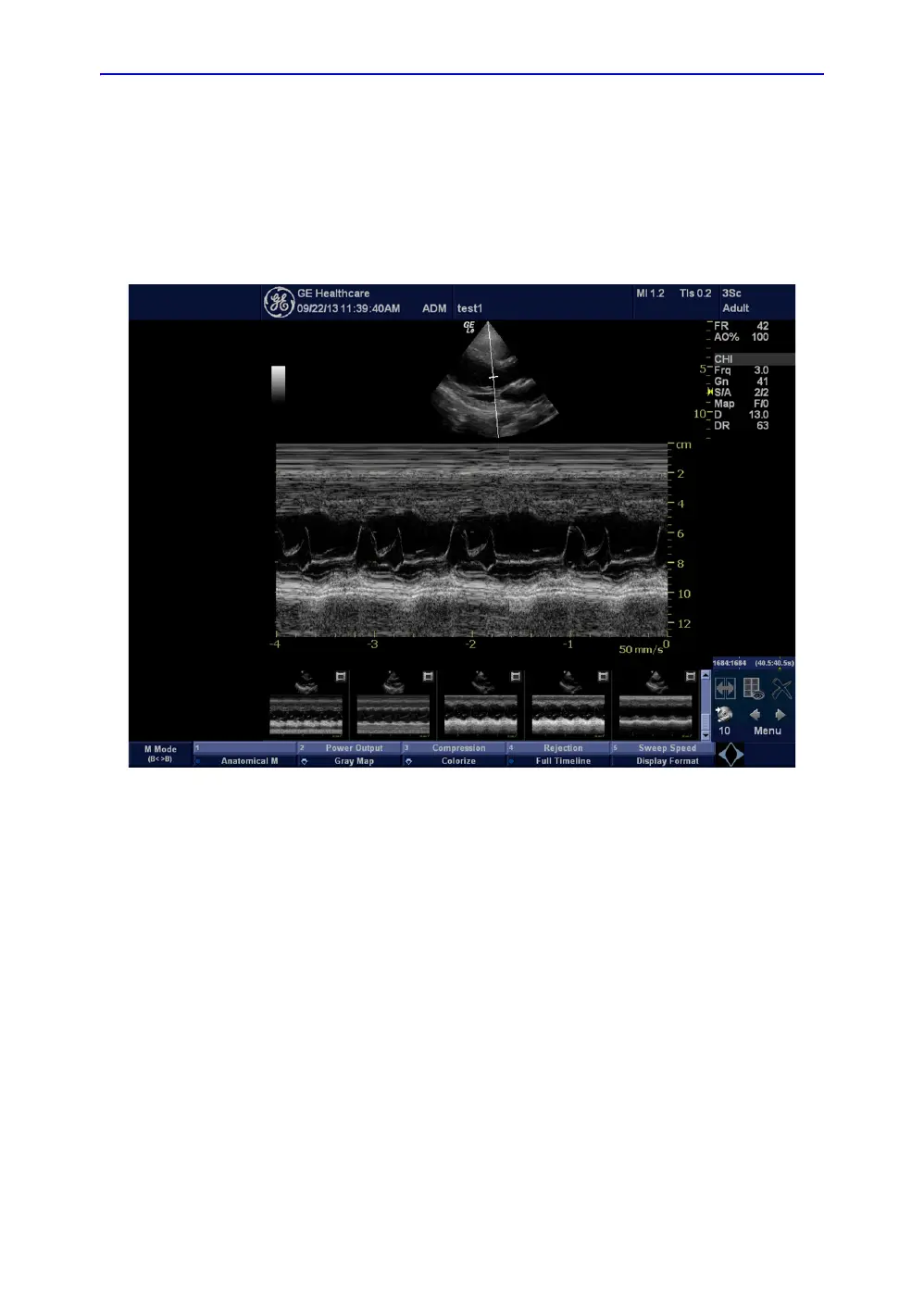

M-Mode Screen Example
Figure 4-12. M Mode Screen Image Example
Preparations
1. Connect one of the probes.
For available probes, See ‘Available probes’ on page 3-30
for more information..
See ‘Connect a probe’ on page 3-17 for more information.
for info about connecting the probes.
2. Turn ON the scanner (if it isn’t turned on already).
