Diagnostics/Troubleshooting
7-4 LOGIQ e – Basic Service Manual
5461614-100 English Rev. 6
Collect Vital System Information (continued)
System Hardware
Click and open Additional About Information for hardware
information: Module Name, Revision and Part Number.
• Module Name
This column indicates the hardware modules which are
supported on the system.
• Revision
This column displays the information of the hardware. The
“--” mark in the cell of this column indicates that the
hardware in the same row is not installed on the system.
• Part Number
This column indicates the part number of the hardware. The
“--” mark indicates that there is no part number display for
the hardware in the same row.

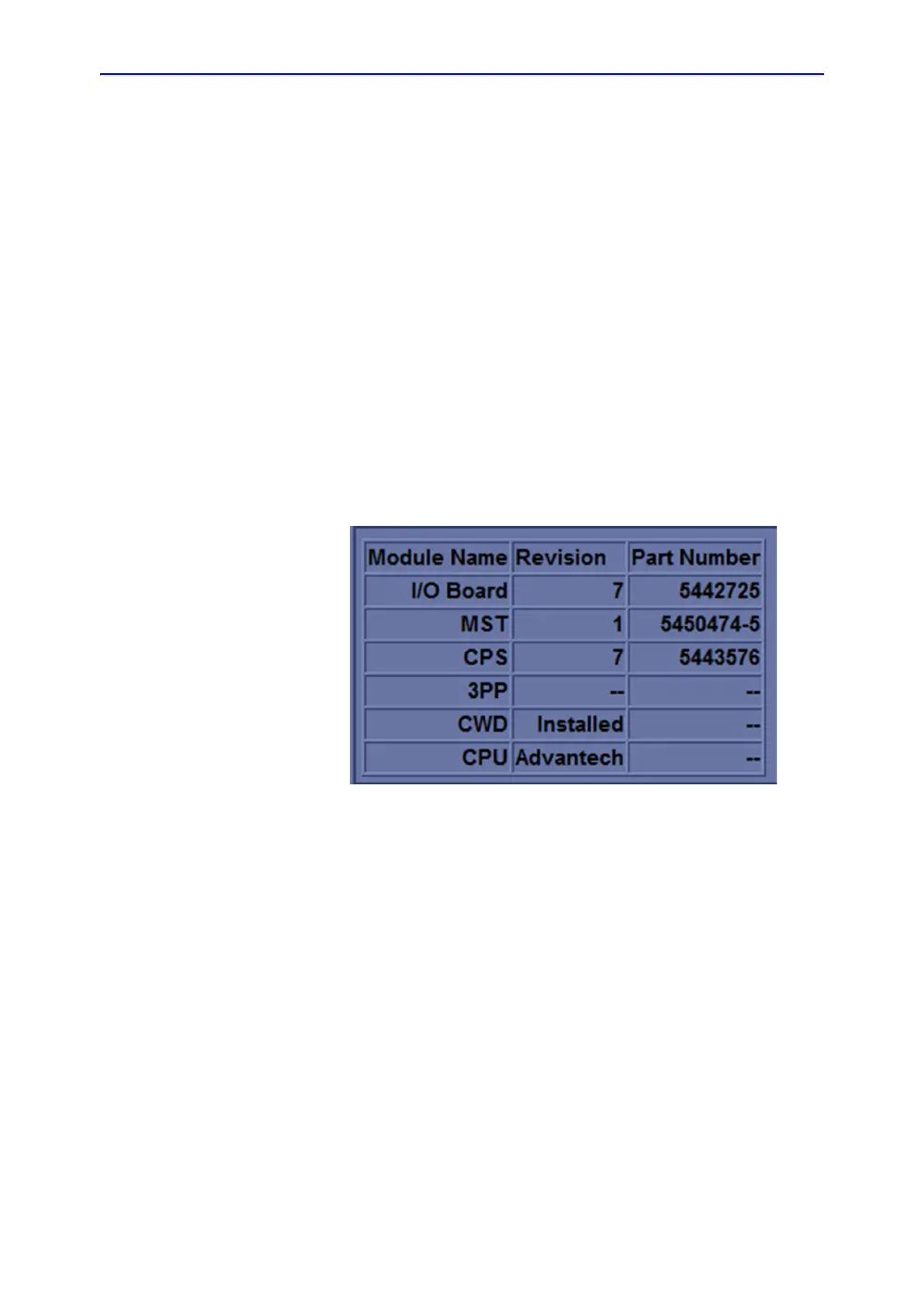

Figure 7-1. Hardware Information
To Next Page
