Replacement Procedures
8-12 LOGIQ e – Basic Service Manual
5461614-100 English Rev. 6
Removal Procedure
Mounting Procedure
1. Install the new parts in the reverse order of removal.

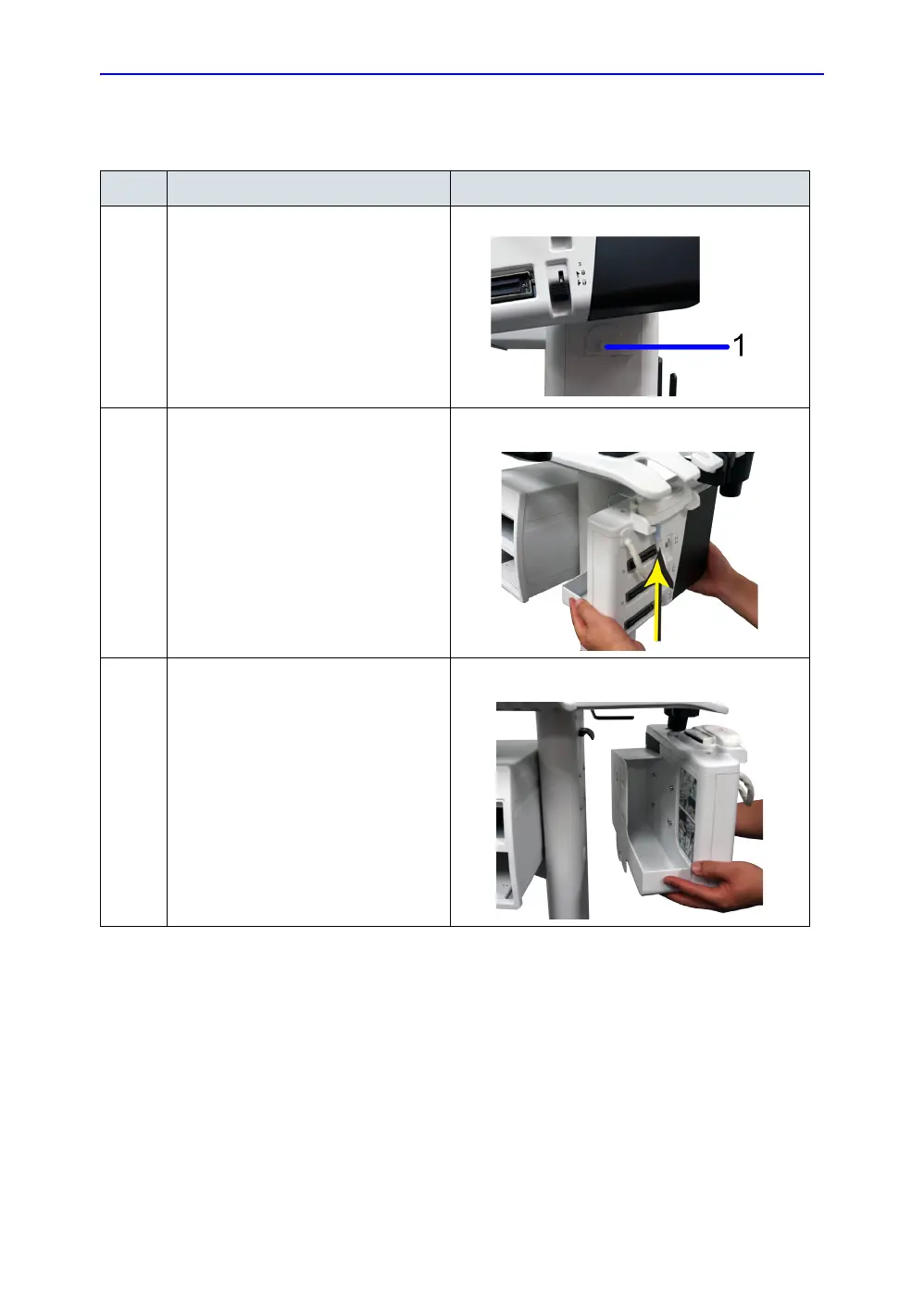

Table 8-4: Removal Procedure for 3-Probe Port
No. Steps Corresponding Graphic
1. Unscrew the 1 screw under the 3-Probe
Port.
2. Hold the 3-Probe Port with both hands
and push it up.
3. Remove the 3-Probe Port from the
Upper Column.
