Set Up Docking Cart
LOGIQ e – Basic Service Manual 11-11
5461614-100 English Rev. 6
Moving into Position
In general, a single adult can move the LOGIQ e along an even
surface with no steep grades. At least two people should move
the machine when large humps, grooves, or grades will be
encountered. (It is better to pull from the rear rather than push
from the front of the unit). Before moving, store all loose parts in
the unit. Wrap transducers in soft cloth or foam to prevent
damage.
LOGIQ e is a compact and mobile machine, two people should
move it over rough surfaces or up and down grades.

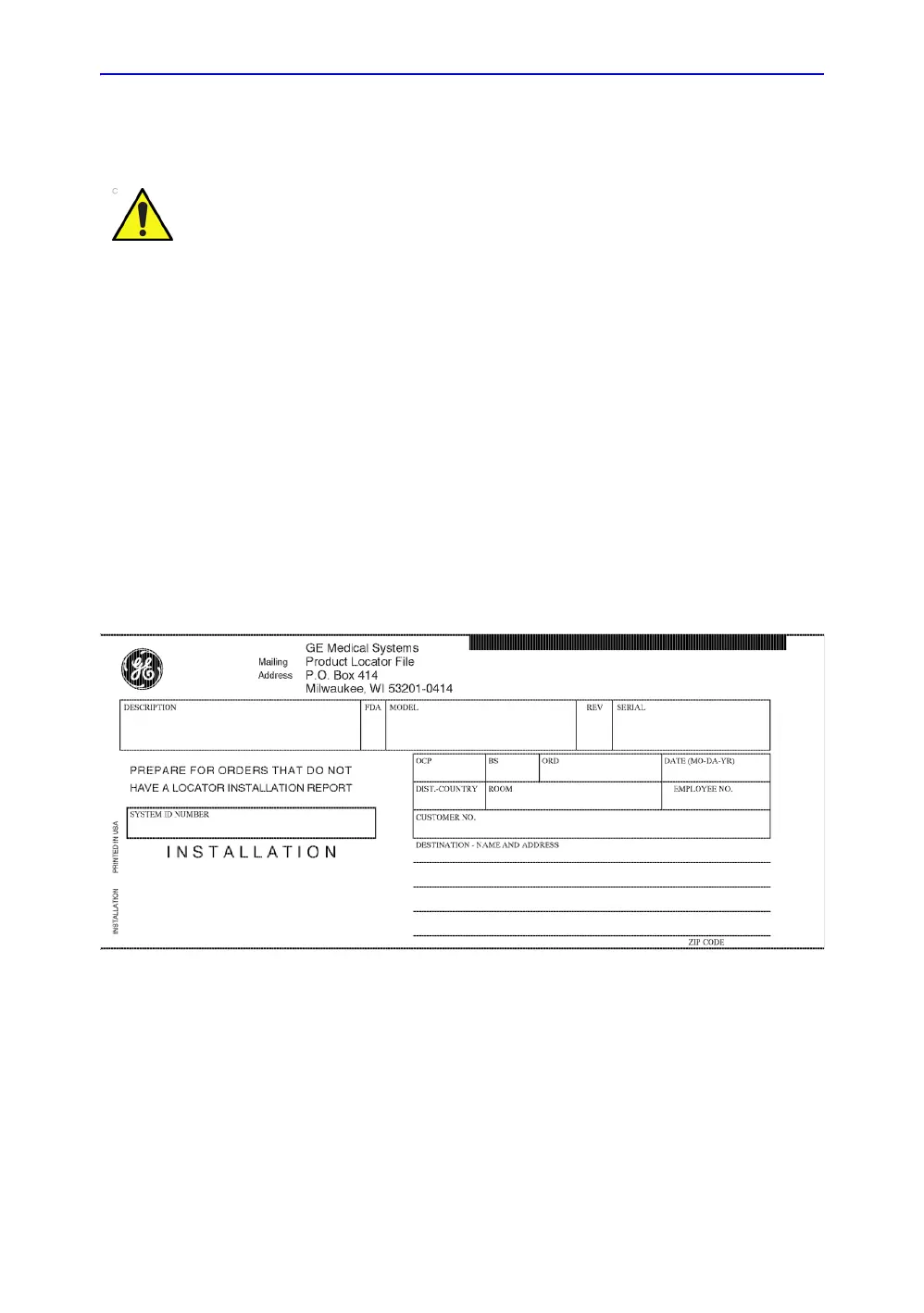

Product Locator Installation Card
NOTE: The Product Locator Installation Card shown in this manual may
not be same as the provided Product Locator card.
Figure 11-3. Product Locator Installation Card
CAUTION
Do not tilt the unit more than 5 degrees to avoid tipping it over.
