Set Up Docking Cart
LOGIQ e – Basic Service Manual 11-27
5461614-100 English Rev. 6
Removal Procedure
Remove the new parts in the reverse order of installation. See
‘Extended Life Battery (Part No. 5486499)’ on page 12-9 for
more information.
5. Flip up the 2 latches on the battery.
6. Try pulling the battery to check if the
battery is fixed in the power box.
• If the battery can not be pulled out, it
means the battery is well installed.
• If the battery can be pulled out, it
means the battery is not well installed.
Reinstall the battery until it can not be
pulled out from power box.

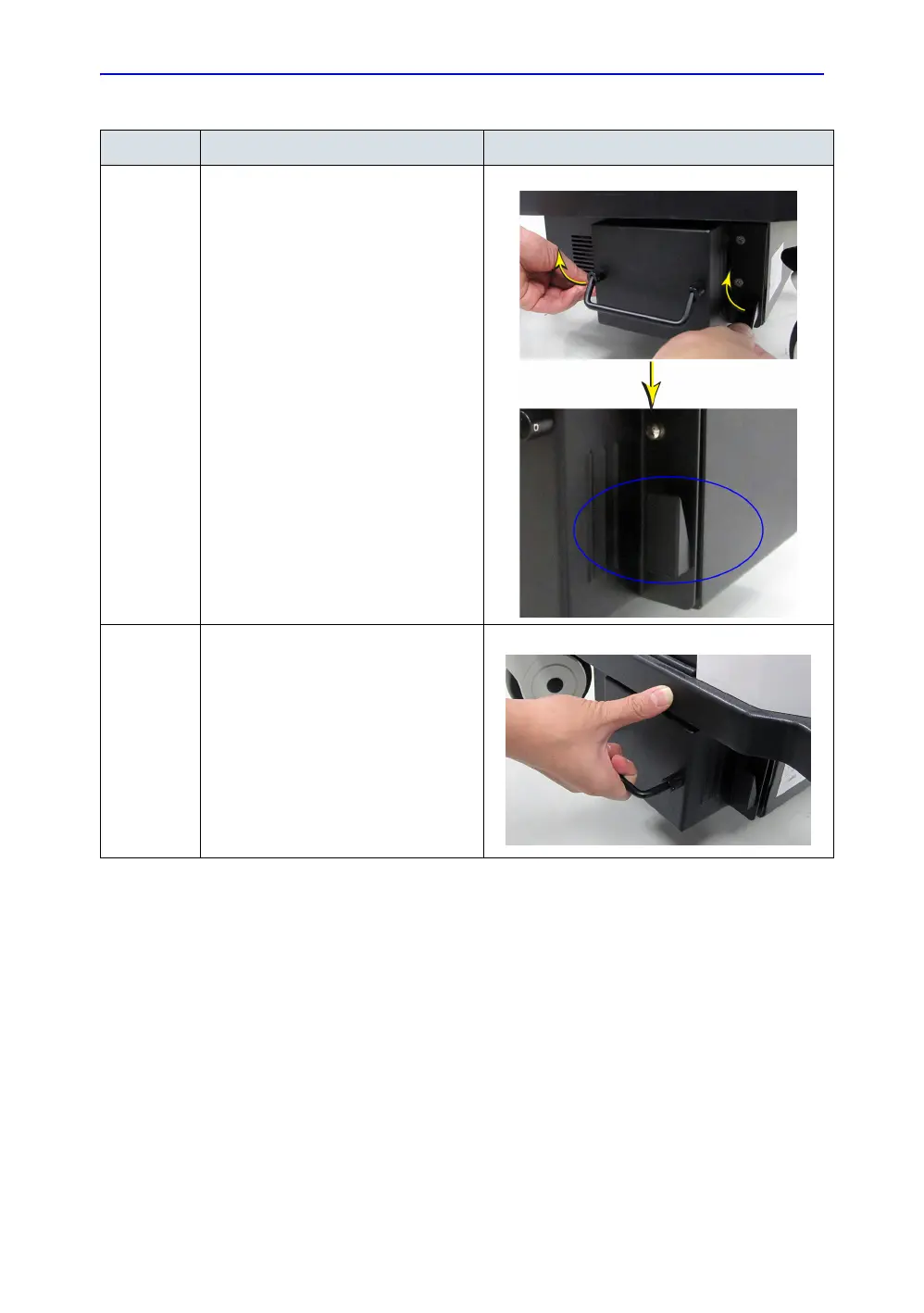

Table 11-12: Mounting Procedure of Extended Life Battery
No. Step Corresponding Graphic
