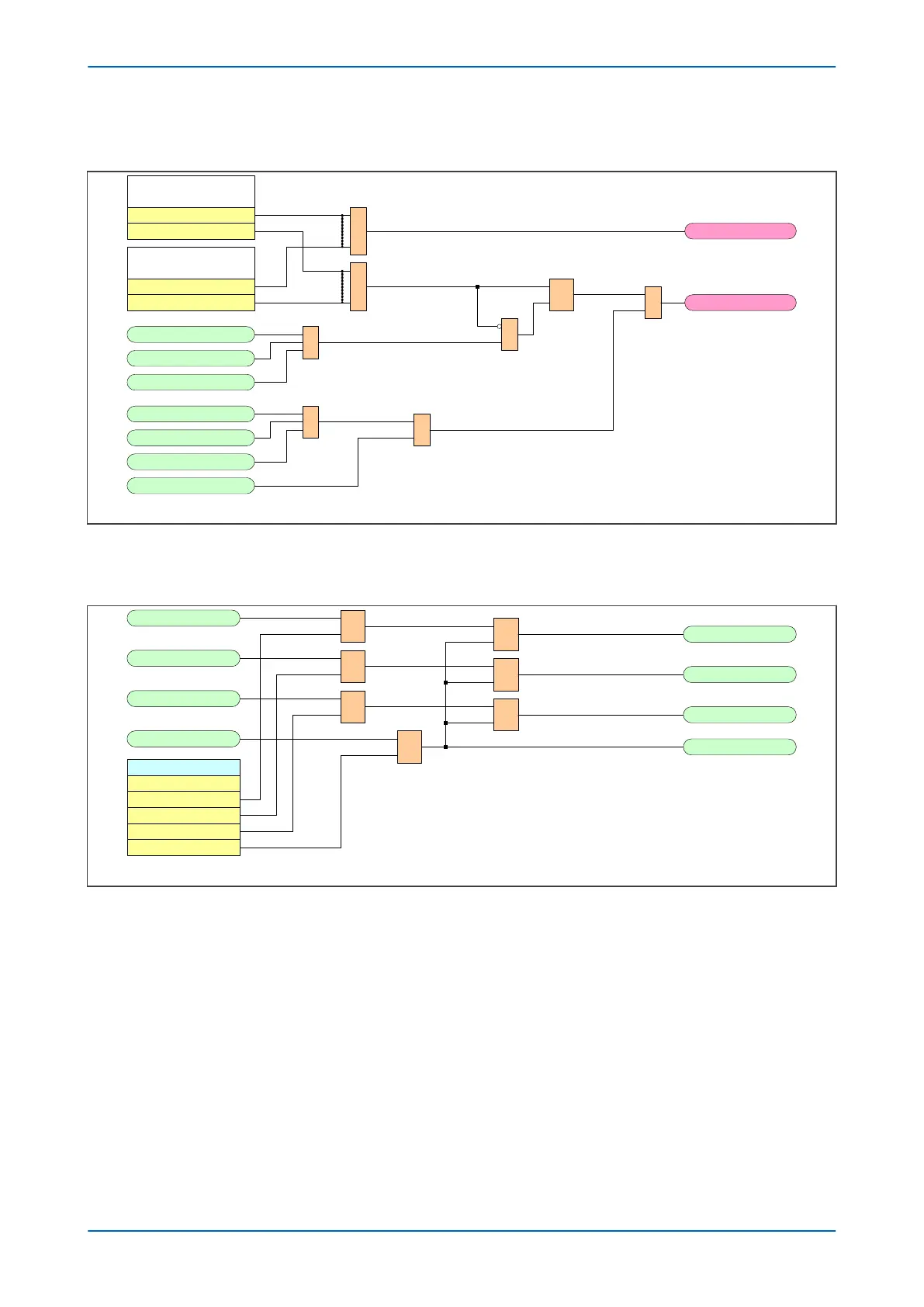

5.8.1 AUTORECLOSE INITIATION LOGIC DIAGRAM

IA< Start

V03315

IB< Start

IC< Start

AR Trip Test A

AR Trip Test B

AR Trip Test C

Any Trip

Prot AR Block

INIT ARR

Protection function 1 Trip

Initiate AR

Block AR

Protection function n Trip

Initiate AR

Block AR

522

579

578

577

866

865

864

Figure 157: Autoreclose Initiation logic diagram (Module 11)

5.8.2

AUTORECLOSE TRIP TEST LOGIC DIAGRAM

V03304

Init APh AR Test

Init 3P AR Test

Init CPh AR Test

Init BPh AR Test

AR Trip Test A

AR Trip Test 3Ph

AR Trip Test C

AR Trip Test B

Test Autoreclose

Trip 3 Pole

Trip Pole A

No Operation

Trip Pole C

Trip Pole B

1504

1505

1506

1507

577

578

579

576

Figure 158: Autoreclose Trip Test logic diagram (Module 12)

P446SV Chapter 11 - Autoreclose

P446SV-TM-EN-1 299
