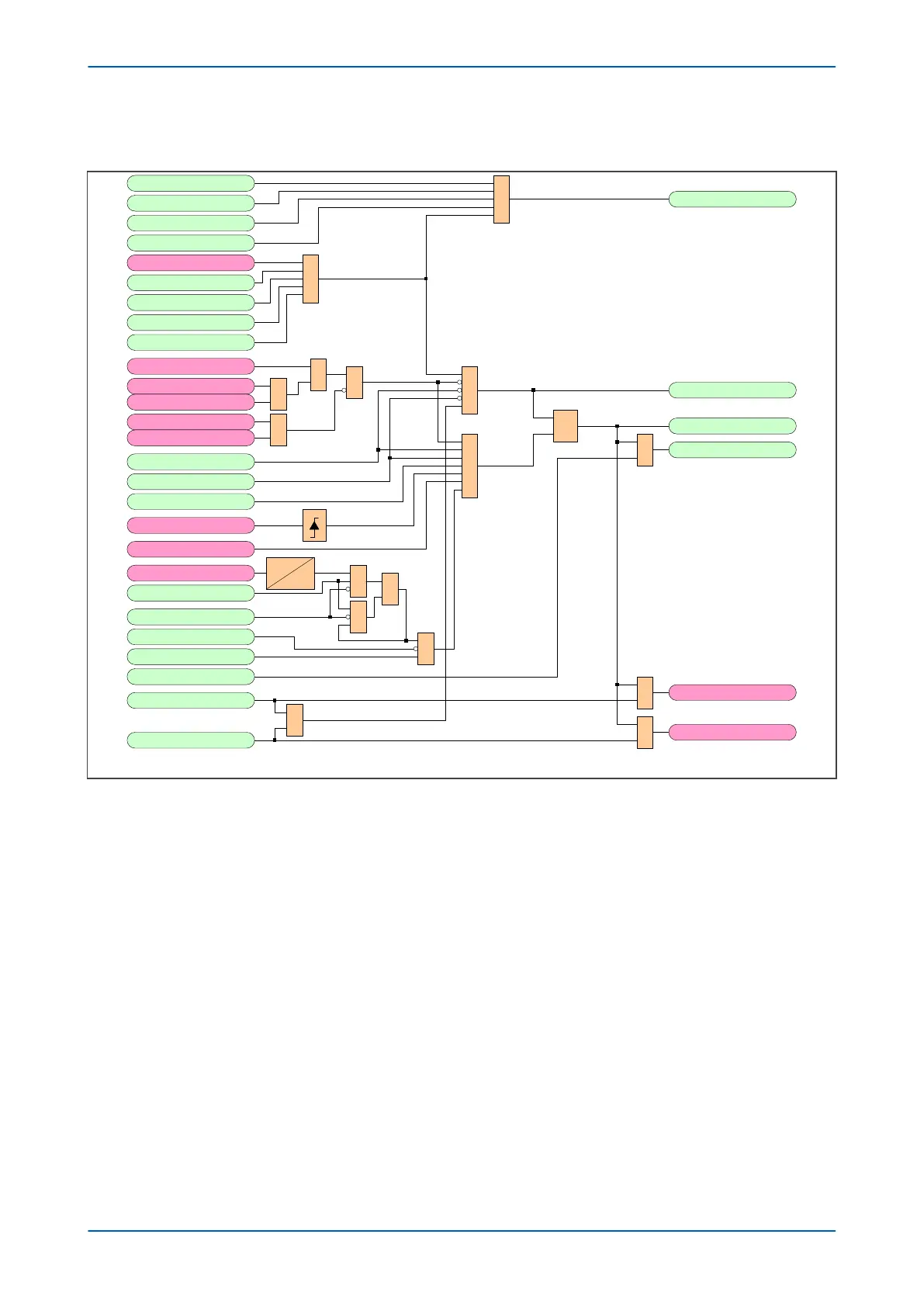

5.9.1 AUTORECLOSE IN PROGRESS LOGIC DIAGRAM FOR CB1

V03322

CB1 Ext Trip A

CB1 Ext Trip B

CB1 Ext Trip C

CB1 Ext Trip3ph

Init AR

CB1 ARIP

CB2 Ext Trip A

CB2 Ext Trip B

CB2 Ext Trip C

CB2 Ext Trip3ph

AR Start

CB1 OpAny

TMEM2/3Ph

AR Start

0.02

Set CB1 Close

CB1 Closed 3 ph

TMEM1Ph

CB1 Op2/3P

CB1L3 PAROK

CB1F3 PAROK

Inhibit AR

CB1 LO Alarm

CB1 NoAR

CB1 ARSUCC

CBARCancel

CB1 AR Init

CB1 ARIP

ARIP

CB1 LARIP

CB1 FARIP

Leader CB1

Follower CB1

CB2 ARIP

Figure 163: Autoreclose In Progress logic diagram for CB1 (Module 16)

P446SV Chapter 11 - Autoreclose

P446SV-TM-EN-1 303
