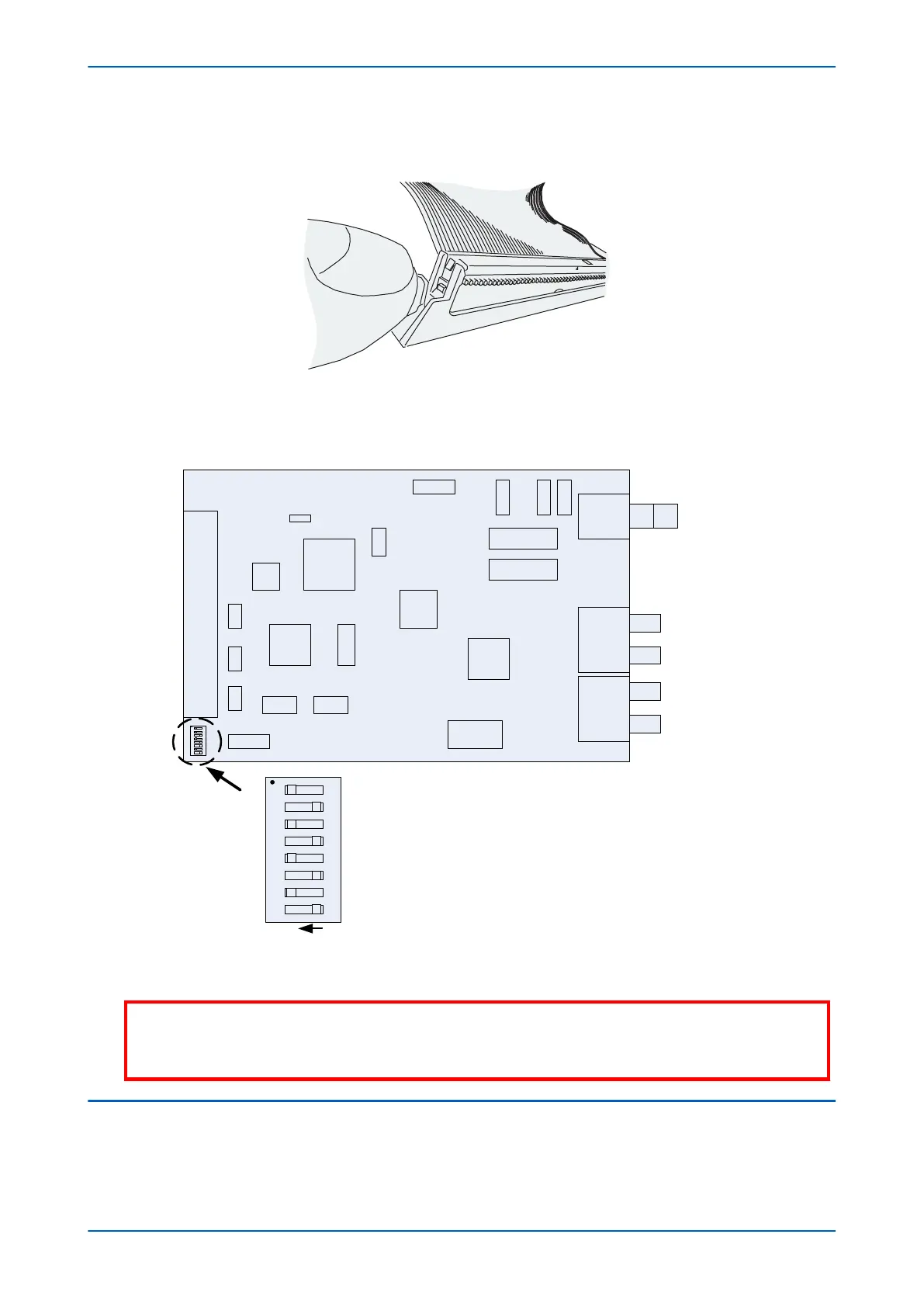

6. Press the levers either side of the connector to disconnect the ribbon cable from the front panel.

E01021

7. Remove the redundant Ethernet board. Set the last octet of IP address using the DIP switches. The available

range is 1 to 127.

V01022

Unused

SW2 Top view

Example address

decimal 85

1 + 4 + 16 + 64 = 85

8. Once you have set the IP address, reassemble the IED, following theses instructions in the reverse order.

Warning:

Take care not to damage the pins of the ribbon cable connector on the front panel when reinserting

the ribbon cable.

5.8

PRP/HSR CONFIGURATOR

The PRP/HSR Configurator tool is intended for MiCOM Px4x IEDs with redundant Ethernet using PRP (Parallel

Redundancy Protocol), or HSR (High-availability Seamless Redundancy). This tool is used to identify IEDs, switch

Chapter 21 - Communications P446SV

522 P446SV-TM-EN-1
