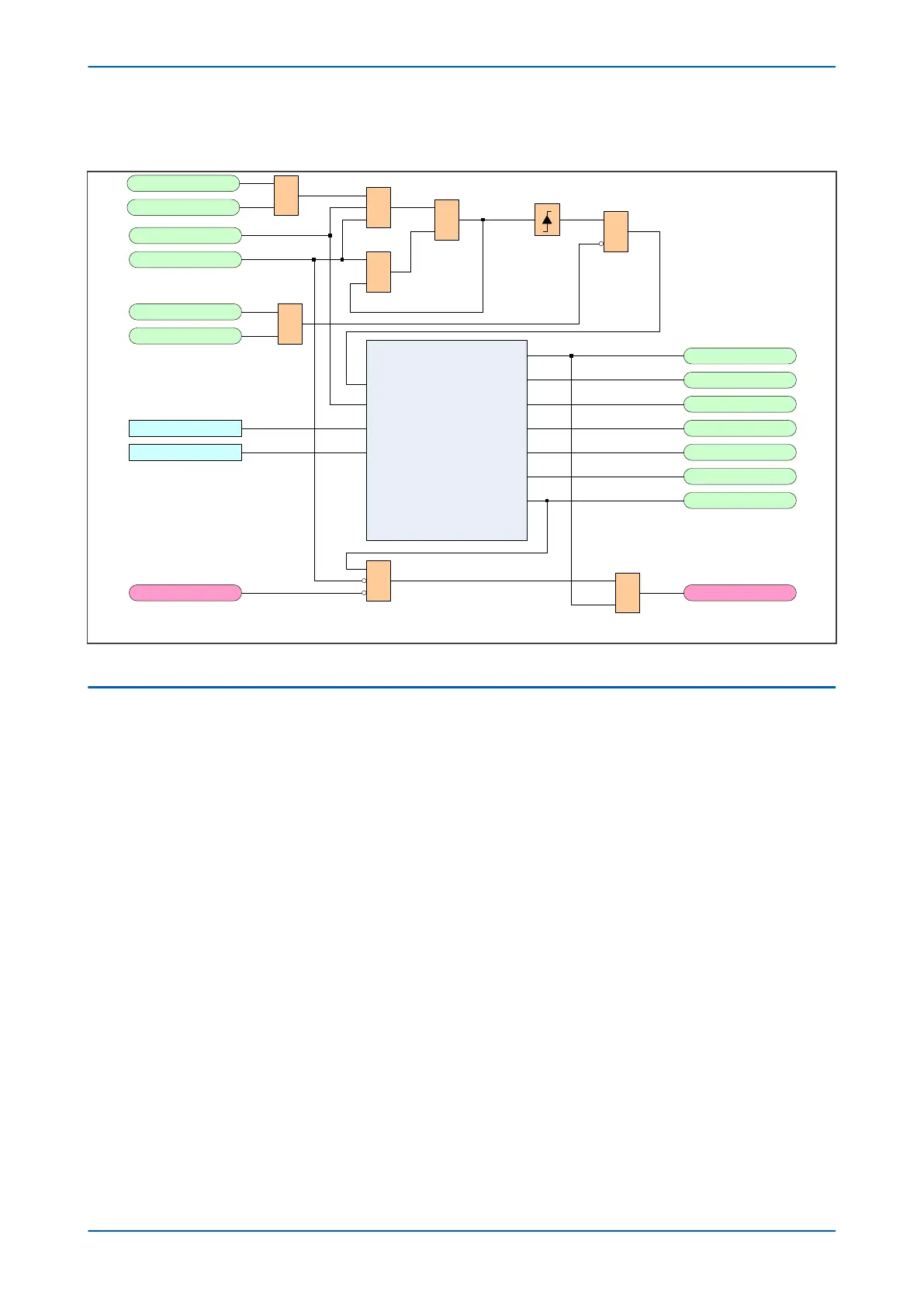

5.10.1 AUTORECLOSE SEQUENCE COUNTER LOGIC DIAGRAM

V03327

CB2 AR Init

ARIP

AR Start

Seq Counter = 0

Seq Counter > 4

Seq Counter = 2

Seq Counter = 3

Seq Counter = 4

Seq Counter>Set

Prot Re-op

Single Pole Shot

Three Pole Shot

Sequence Counter

Seq Counter = 1

LastShot

Increment on rising edge

Reset on falling edge

1P Dtime

Seq Counter = 1

CB1 AR Init

Figure 165: Autoreclose Sequence Counter logic diagram (Module 18)

5.11

AUTORECLOSE CYCLE SELECTION

The Autoreclose cycle selection logic is responsible for determining whether the Autoreclose will start as single-

phase or three-phase.
