2-8 PQM Power Quality Meter GE Power Management
2.2 ELECTRICAL 2 INSTALLATION
2
Four-wire systems with voltages 347 V L-N or less can be directly connected to the PQM without VTs. Select
the
S2 SYSTEM SETUP \ CURRENT/VOLTAGE CONFIGURATION \ VT WIRING: 4 WIRE WYE DIRECT
setpoint.
The PQM voltage inputs should be directly connected using HRC fuses rated at 2 A to ensure adequate inter-
rupting capacity.

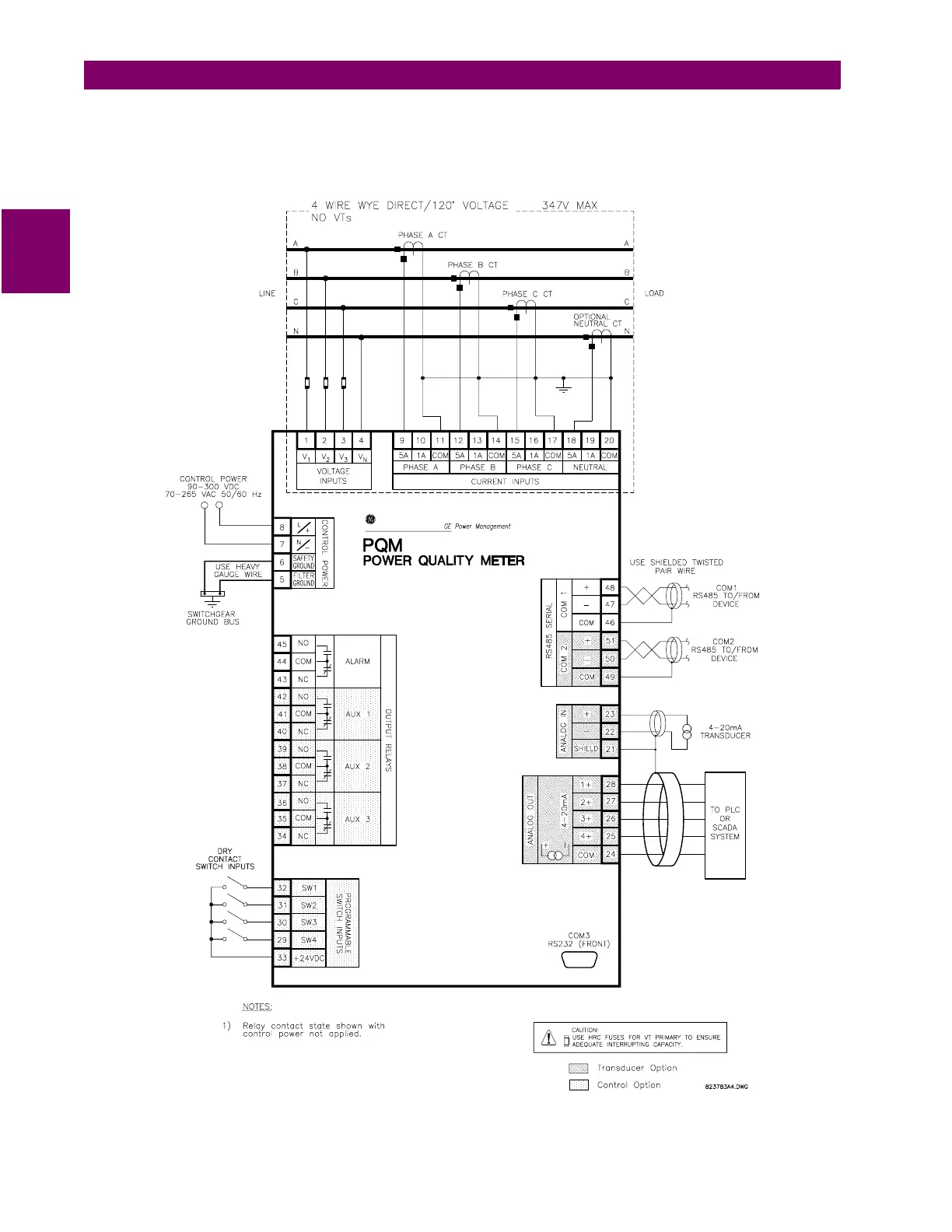

Figure 2–6: WIRING DIAGRAM 4-WIRE WYE DIRECT (NO VTs)
