GE Power Management PQM Power Quality Meter 2-9
2 INSTALLATION 2.2 ELECTRICAL
2

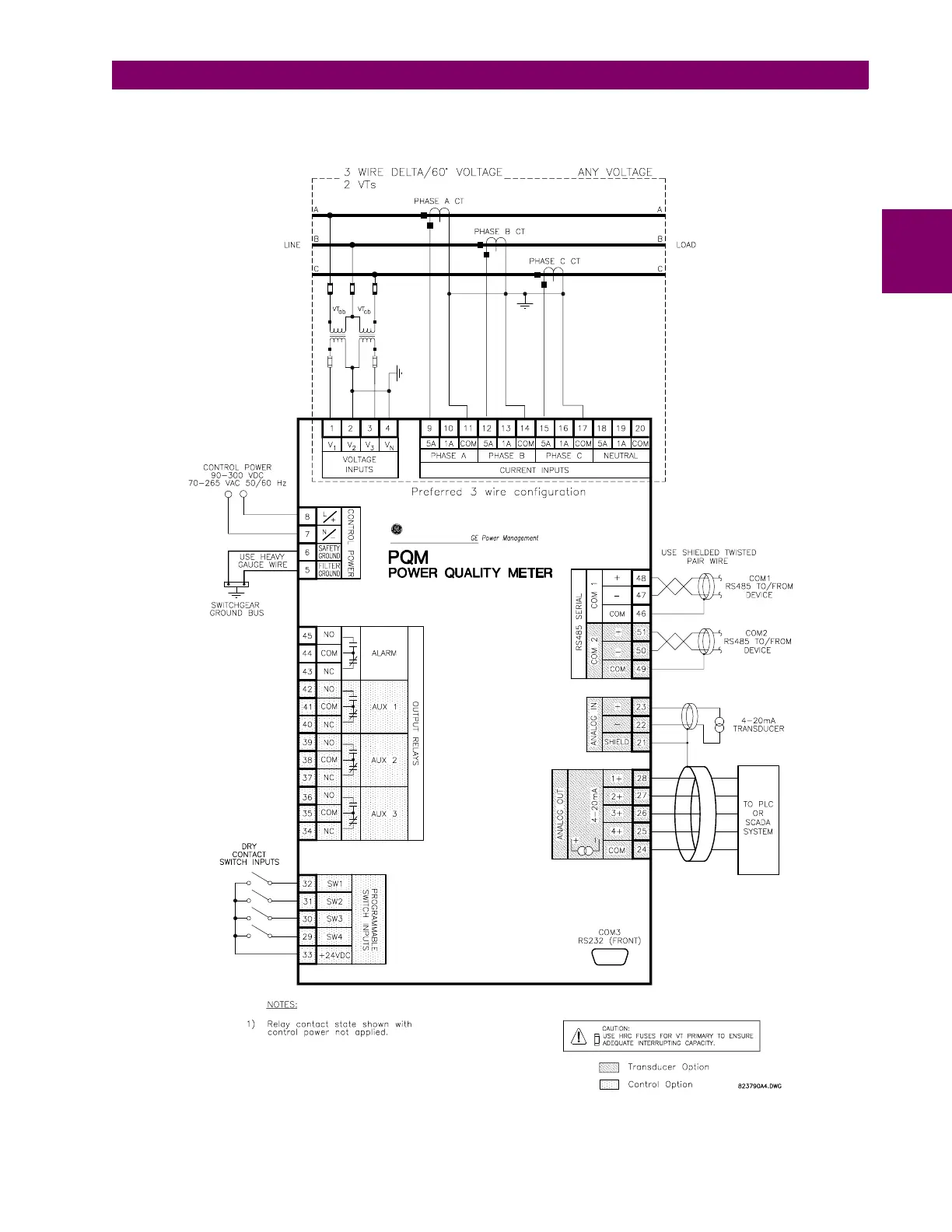

This diagram shows the typical 3-wire delta connection which will cover any voltage range. Select the
S2 SYS-
TEM SETUP \ CURRENT/VOLTAGE CONFIGURATION \ VT WIRING: 3 WIRE DELTA (2 VTs)
setpoint.
Figure 2–7: WIRING DIAGRAM 3-WIRE DELTA (2 VTs)
