om 5184516-100 Rev. 5 7-27
2-5Digital Multi-Function OperatorCon-
trol Group
See ILLUSTRATION 7-16 and TABLE 7-7.

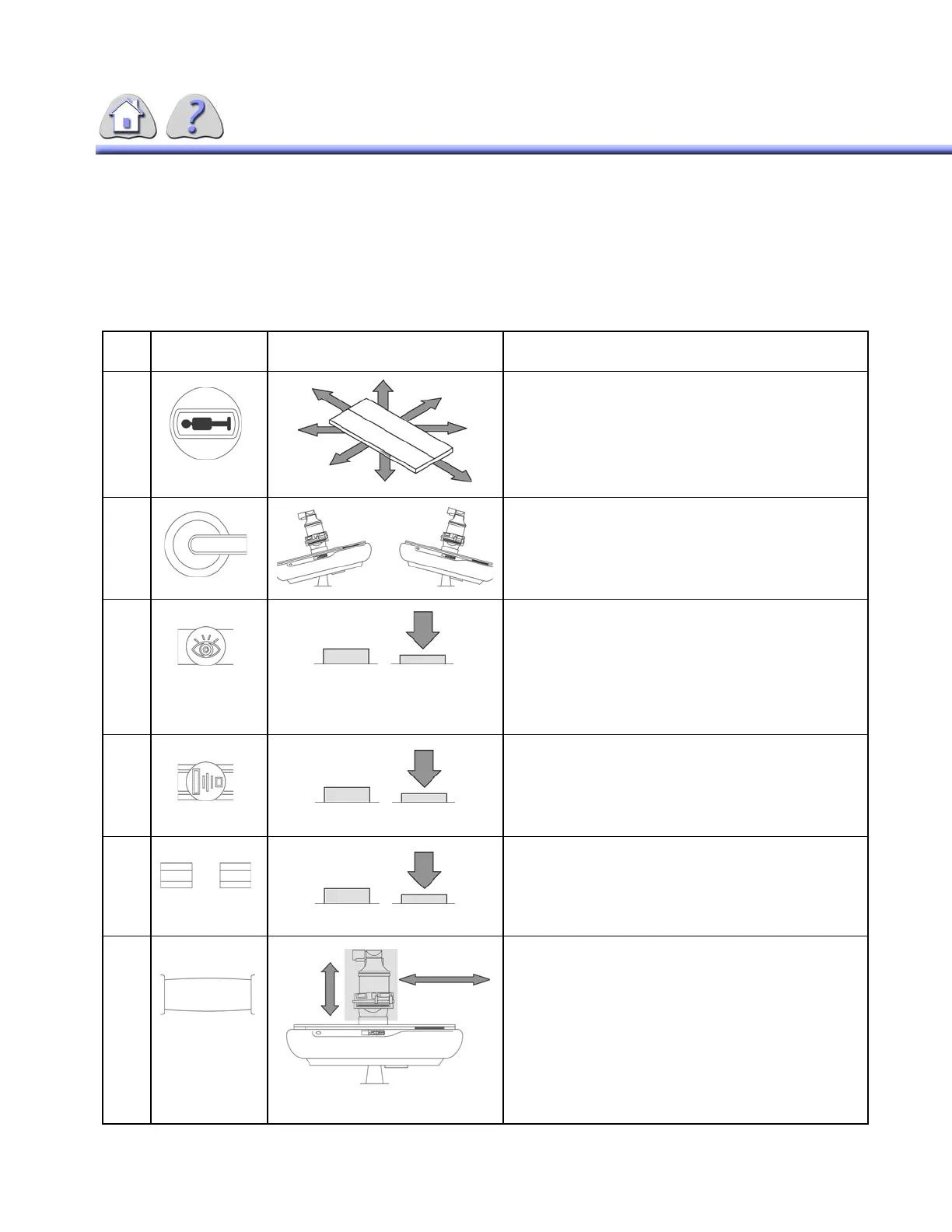

TABLE 7-7
DIGITAL MULTI-FUNCTION OPERATOR CONTROL GROUP CONTROLS
Item Operator
Control
Motion Description
1 Eight-Way Table Top Drive Control.
Move control in any of eight directions to drive table top
in desired direction:
• head-to-foot
• front-to-rear
• oblique
2 Variable speed Table Tilt Control.
Rotate Control:
• CCW to tilt table Trendelenburg.
• CW to tilt table Vertically.
3 Fluoroscopy Exposure Control portion of Integrated Flu-
oro and Expose switch.
Use for rapid fluoroscopy.
Press to initiate Fluoroscopy (may be used with foot
switch).
Record EXPOSE may be initiated if this switch and the
PREP + EXPOSE bar is pressed (item 7).
4 Radiographic Exposure Control portion of Integrated
Fluoro and Expose switch.
Use for rapid digital record exposures.
Press to initiate both PREP + EXPOSE cycle.
5 Fluoroscopy Exposure Control switch (2).
May be used with foot switch.
Record EXPOSE may be initiated if this switch and the
PREP + EXPOSE bar is pressed (item 7).
6 Variable speed Power Assist Handle.
Grasp to move IDD vertically or longitudinally.
Longitudinal and Vertical motion is de-activated:
• During EXPOSE. Panning motion allowed during
PREP/EXPOSE cycle using Bolus Lock.
Vertical motion is also de-activated:
• While parking IDD (within 20 mm of maximum SID.
• When IDD is parked.
• When Compression Lock is activated.
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
