2026116-001 Revision B Responder™ 2000 Page 111
PRINTER CLEANING INSTRUCTIONS
To clean the Responder 2000 Printer:
1. Pull the printer door latch to open the door.
2. Remove the roll of paper.
3. Clean the print head surface with a cotton swab dipped in isopropyl alcohol.
4. Replace the roll of paper
PADDLE AND INTERNAL PADDLE CLEANING INSTRUCTIONS
Before cleaning the paddles, disconnect them from the Responder 2000. The paddles, paddle cradles, and internal
paddles can be cleaned and disinfected by wiping down with a gauze pad moistened in a cleaning solution. Use the
cleaning products recommended for cleaning of the Responder 2000 unit. Before applying the paddles again, check that
they have thoroughly dried.
INTERNAL PADDLE STERILIZATION INSTRUCTIONS
Internal paddles sterilization instructions are listed below.
PRECAUTION: Electrode Damage — Do not sterilize the electrodes for internal defibrillation (spoons) with hot air.
Cable Damage — Disconnect the cable from the electrodes before sterilization.
The electrodes and connecting cables should be sterilized by the low-temperature plasma sterilization method. Alternative
methods are ETO sterilization, water vapor (134 °C) or ionizing radiation. Ensure that internal defibrillation electrodes are
sterilized before each use.

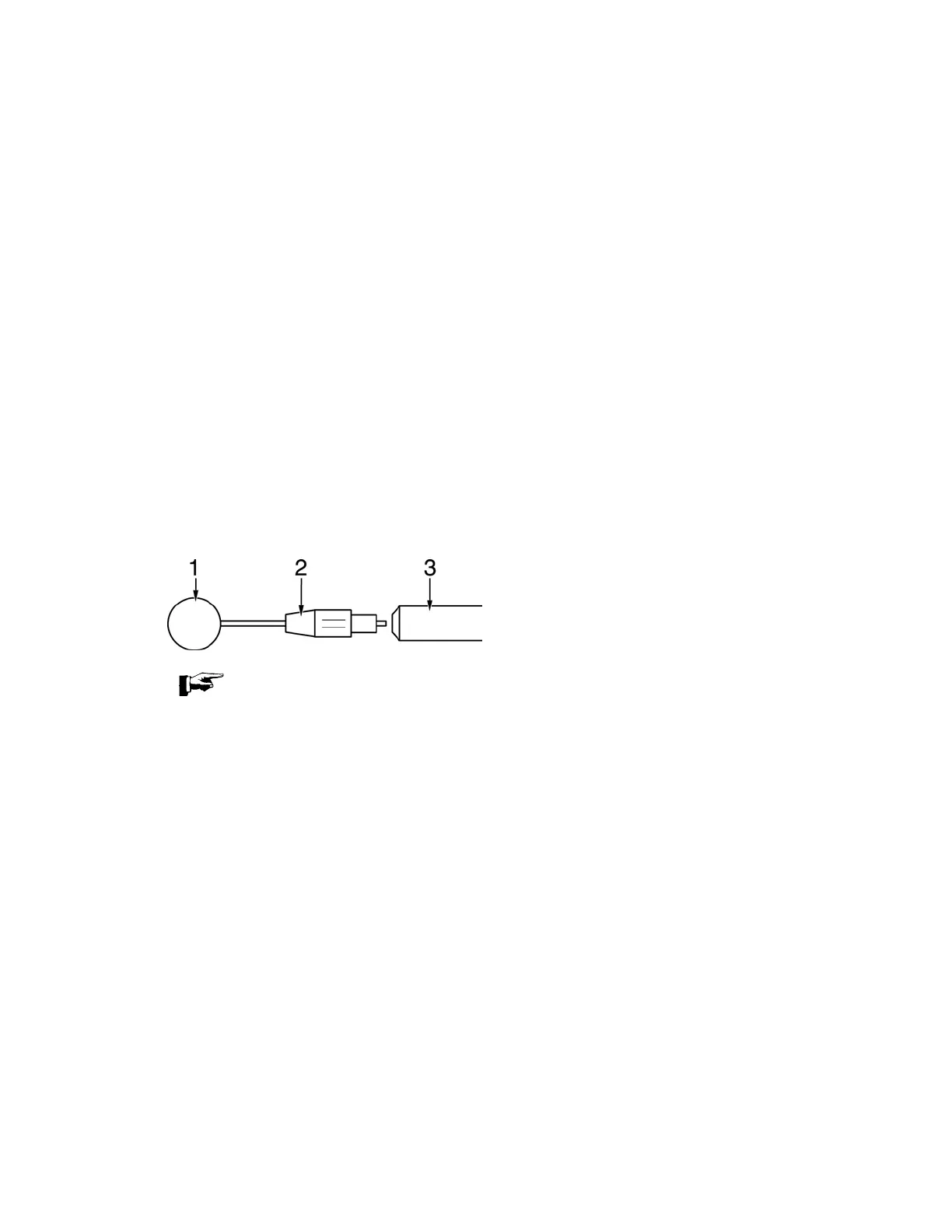

INSERTING THE SPOON ELECTRODE
• Screw the counter nut 2 onto the electrode as far as it will go.
• Screw the contact paddle 1 into the handle as far as it will go, then bring it into the appropriate position.
• Now fix the contact paddle by screwing the counter nut 2 tight against the handle 3.
NOTE: Having loosened the counter nut 2, you can easily alter the position of the contact paddle.
