GRAPHICS DISPLAY
MONITOR SCREEN
The monitor screen contains the information bar, Channel 1 and 2 waveforms, information areas for ECG, Pacing and
SpO
2
areas.
INFORMATION BAR
At the top of the screen is the Information bar showing the operating mode of the Responder 2000, the impedance
display, a battery charge status indicator and the current date and time.

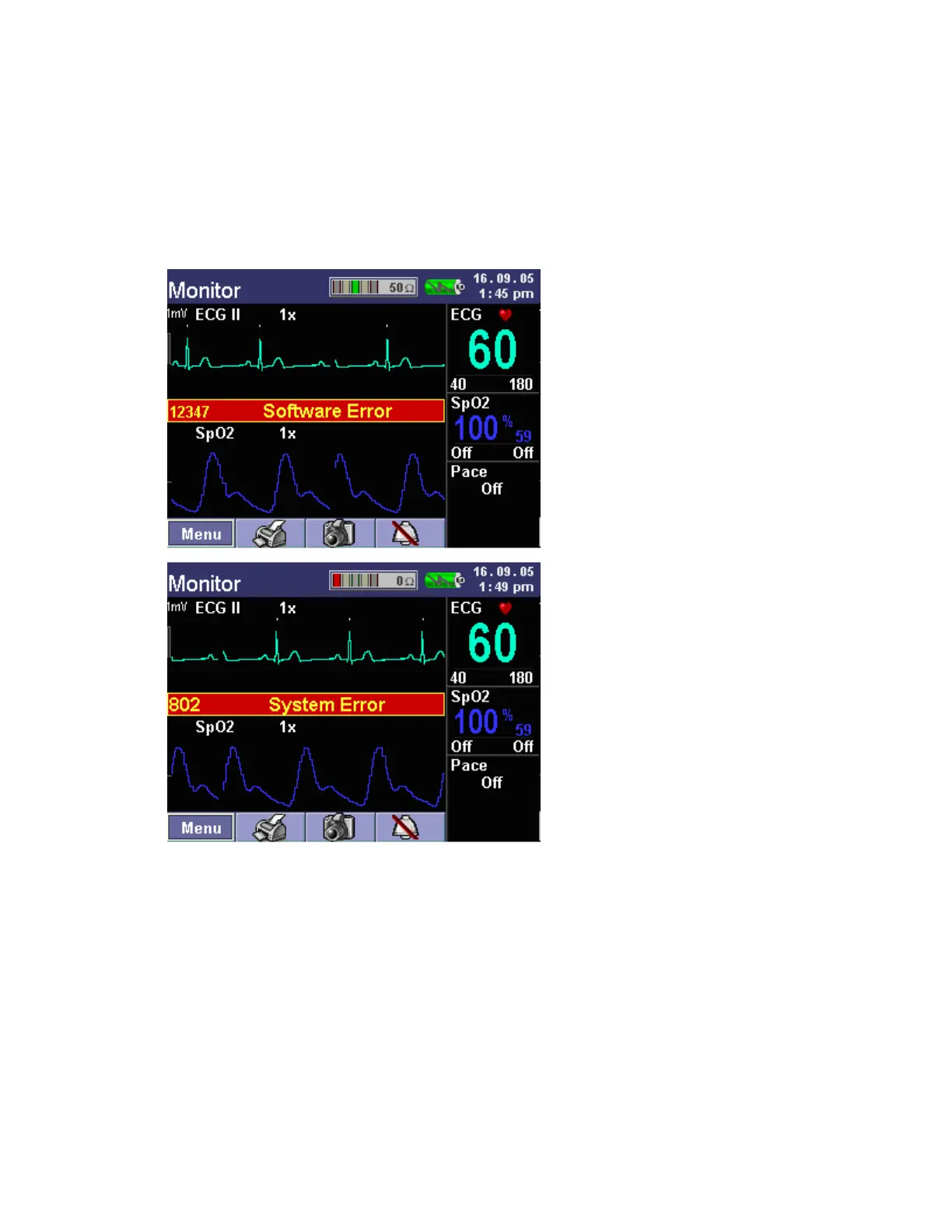

MESSAGE AREA
In the middle of the screen, the Responder 2000 displays messages for software and system errors.
