2026116-001 Revision B Responder™ 2000 Page 51
ANTERIOR-POSTERIOR PLACMENT OF PADS FOR NON-INVASIVE PACING AND DEFIBRILLATION/SYNC
SHOCK
1. Turn off the Responder 2000. Connect the pads connector to the Responder 2000.
2. Shave the application points; this improves conductivity and makes the removal of pads easier.

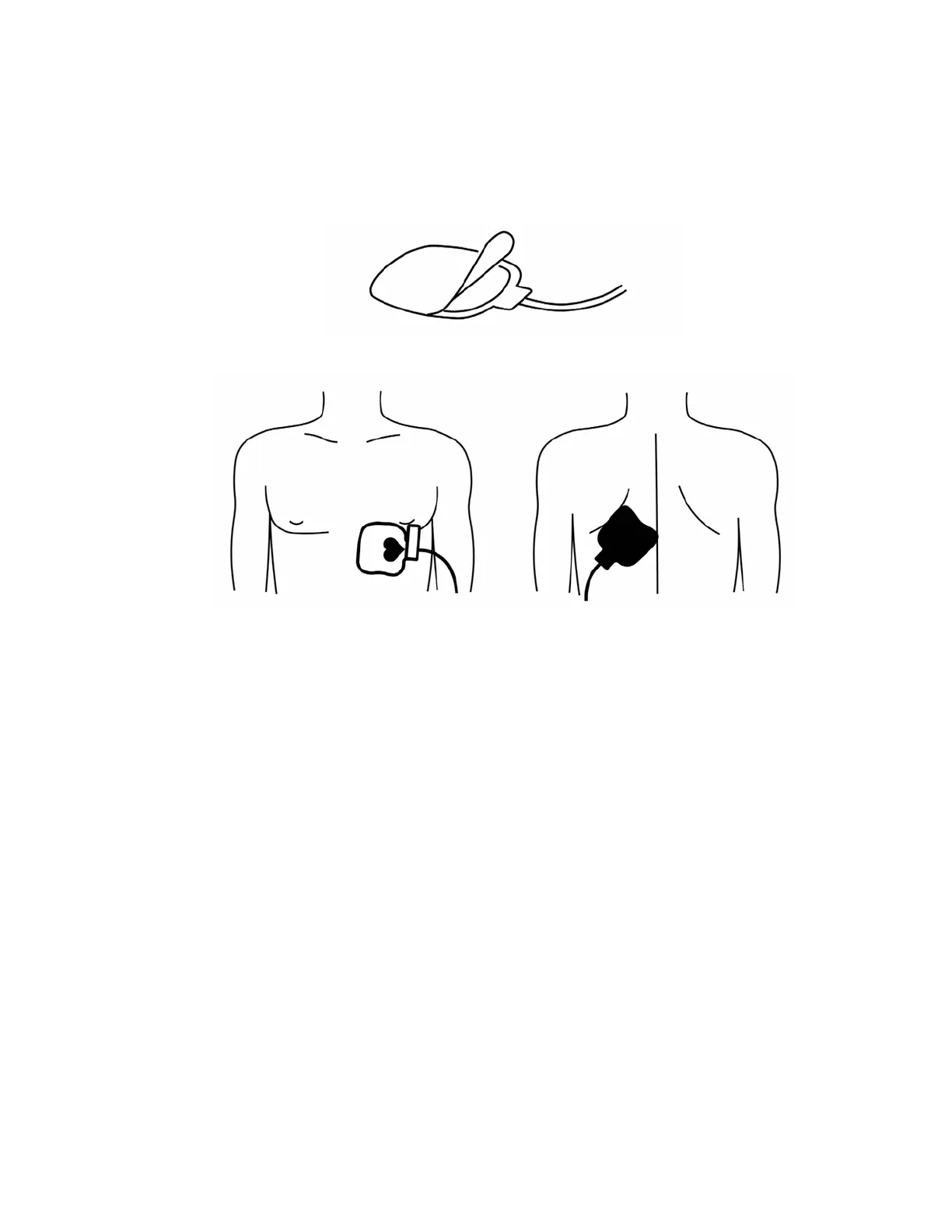

3. Remove the protective liner by starting with the pad cable connection end. Slowly peel back the protective liner from
the PADS.
4. Place the posterior pad on the left side of the patient’s back, behind the heart in the intrascapular area. Apply the pad
to the patient’s skin. Do not place the pad over bony prominence of the spine or scapula.
5. Place the pad on the left side of the patient’s chest. The upper edge of the pads should be just below the nipple and
apply to the patient skin.
6. Starting from one edge, firmly press the pad onto the patient’s skin to eliminate air pockets between the gel surface
and the skin.
7. Connect pads cable to the pads.
