CONNECTING PADDLES OR PADS
The defibrillator paddle connector attaches to the rear of the Responder 2000. The connector for defibrillator paddles and
pads attaches at the same location. With the label facing out, align the connector over the port and press firmly into place.
STORING THE PADDLES
The paddles dock easily on each side of the Responder 2000. Simply push and click to secure as shown in Figure 2.2
below. The paddles can be docked with the cables pointing up or down as preferred.

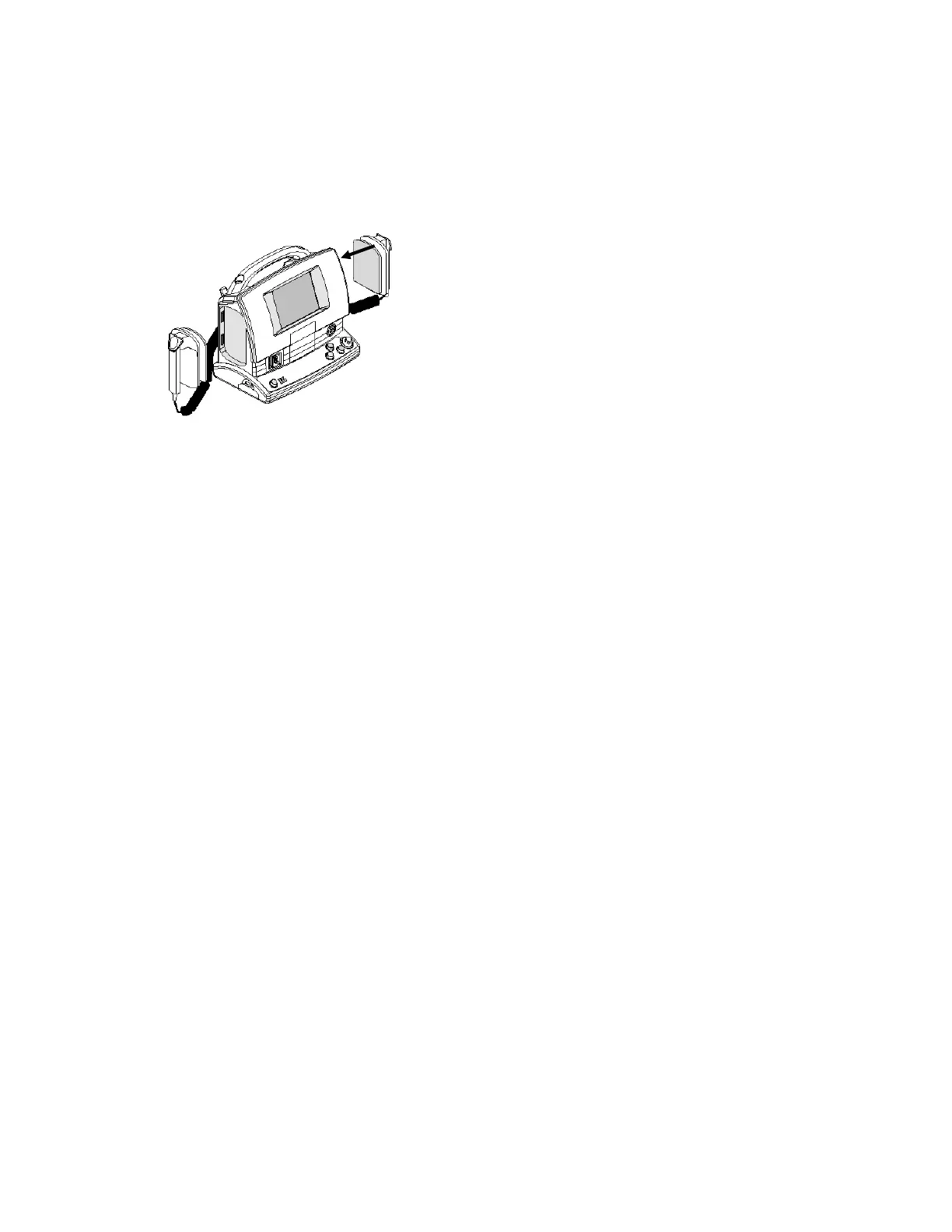

Figure 2.2 Docking the Paddles
