USING ECG ELECTRODES (CONTINUED)

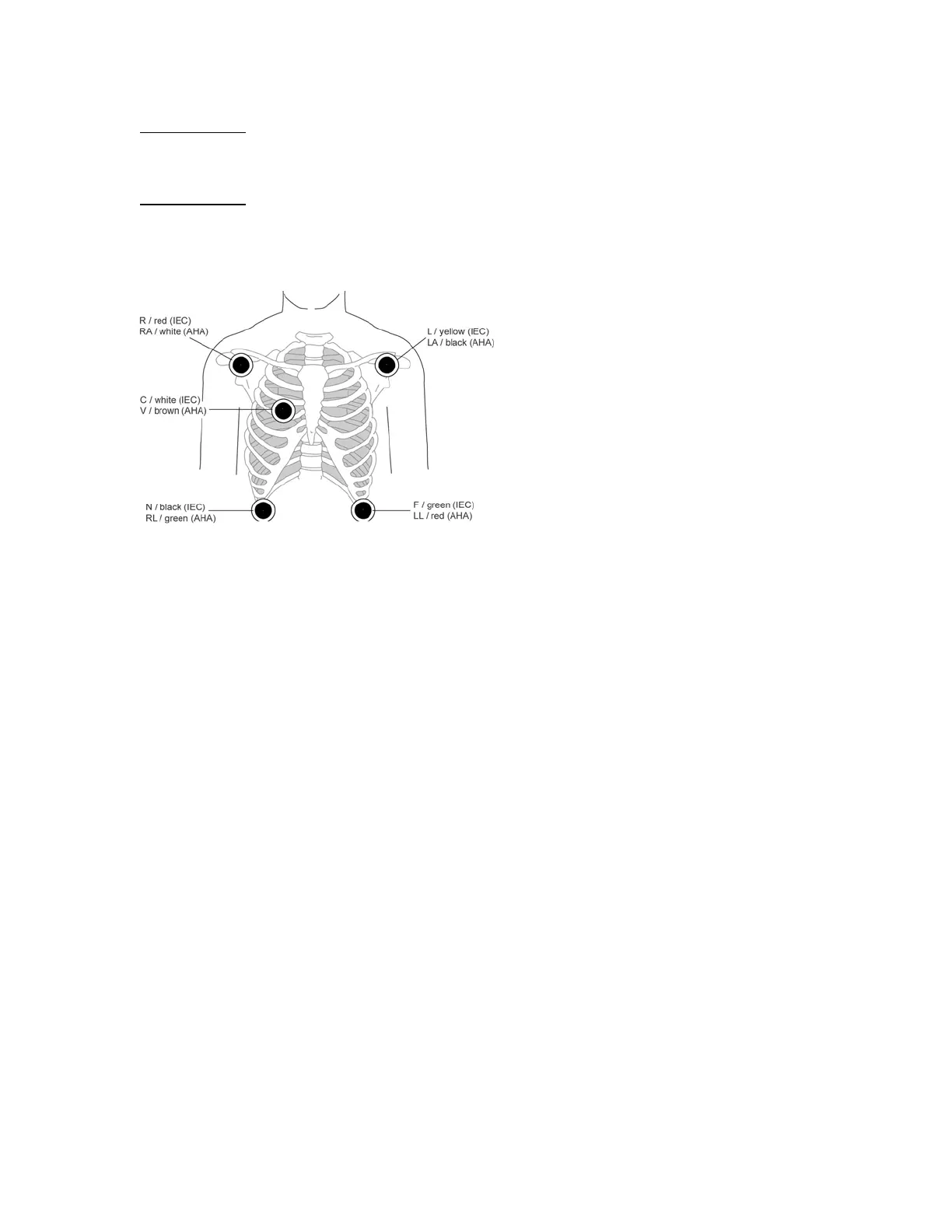

3-Lead Placement
RA/R placement: Directly below the clavicle and near the right shoulder
LA/L placement: Directly below the clavicle and near the left shoulder
LL/F placement: On the left lower abdomen
5-Lead Placement
RA/R placement: Directly below the clavicle and near the right shoulder
LA/L placement: Directly below the clavicle and near the left shoulder
RL/N placement: On the right lower abdomen
LL/F placement: On the left lower abdomen
V/C placement: On the chest; the position depends on the required lead selection.
5. Select a site where the signal will not be interfered with by either movement or bones. Avoid touching the tape and
electrode gel.
6. Make sure there is adequate space (approximately 3 cm) between the pads and the ECG monitoring electrodes.
7. The various ECG leads can be individually selected and viewed on the LCD screen. The ECG Monitoring mode is
the ideal screen for viewing any of the ECG leads without therapy intervention.
