gefran ADV200 Series User Manual

148 ADV200 • Quick start up guide
118mm (4.65”)
82 mm (3.23”)
290 mm
(11.42”)
235 mm
(9.25”)
59 mm
(2.32”)
307 mm
(12.09”)
384 mm
(15.12”)
322 mm
(12.68”)
100 [3.94”]
306.4 [12.06”]

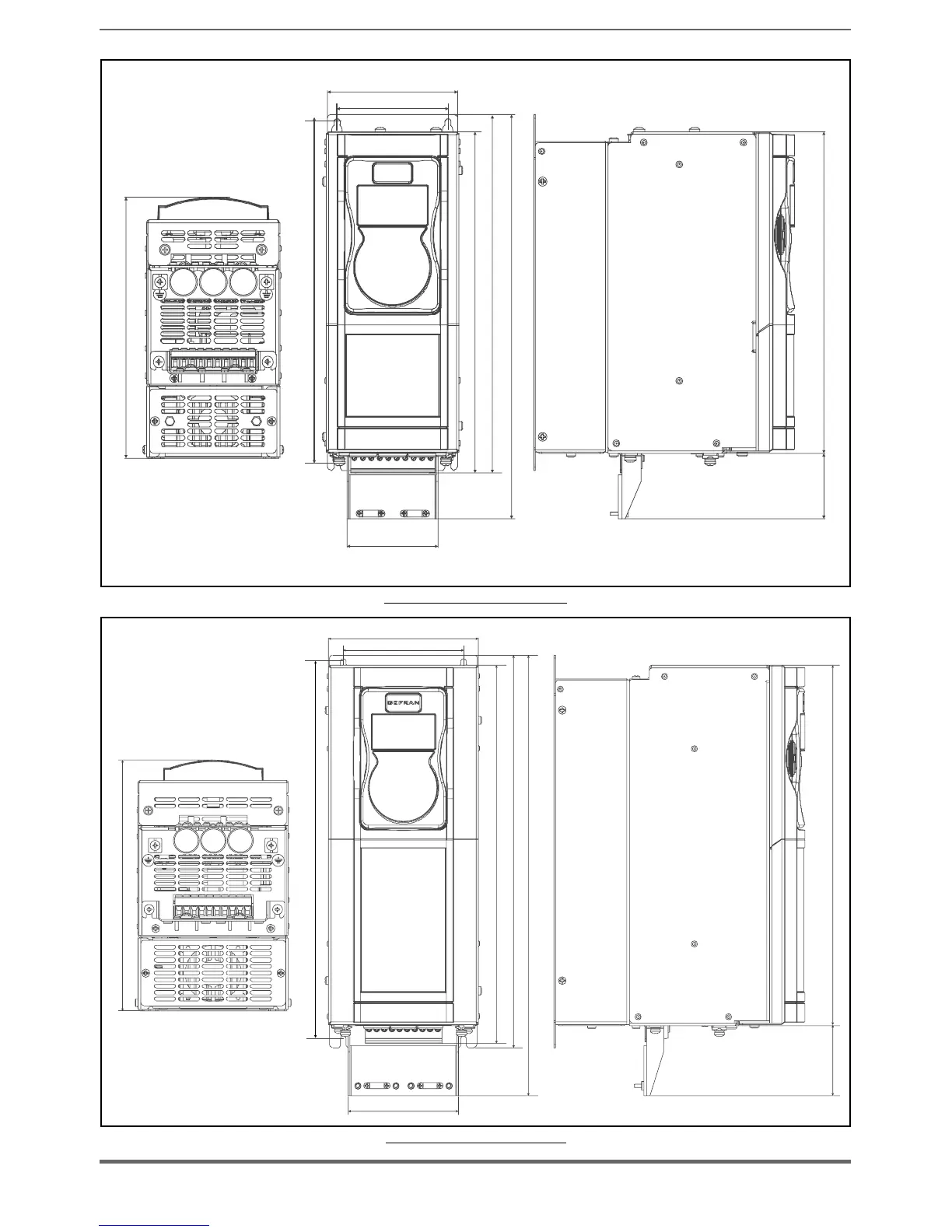

Figure 9.10.1: Size 1 Dimensions
150 mm
(5.91”)
110mm (4.33”)
360 mm
(14.17”)
250 mm
(9.84”)
70 mm
(2.76”)
377 mm
(14.84”)
392 mm
(15.43”)
440 mm
(17.32”)
120 [4.72”]
376.6 [14.83”]
Figure 9.10.2: Size 2 dimensions
