gefran ADV200 Series User Manual

ADV200 • Quick start up guide 149
180 mm
(7.09”)
135 mm (5.31”)
475 mm
(18.70”)
70 mm
(2.76”)
250 mm
(8.84”)
496 mm
(19.53”)
517 mm
(20.35”)
557 mm
(21.93”)
150 [5.91”]
500.1 [19.7”]

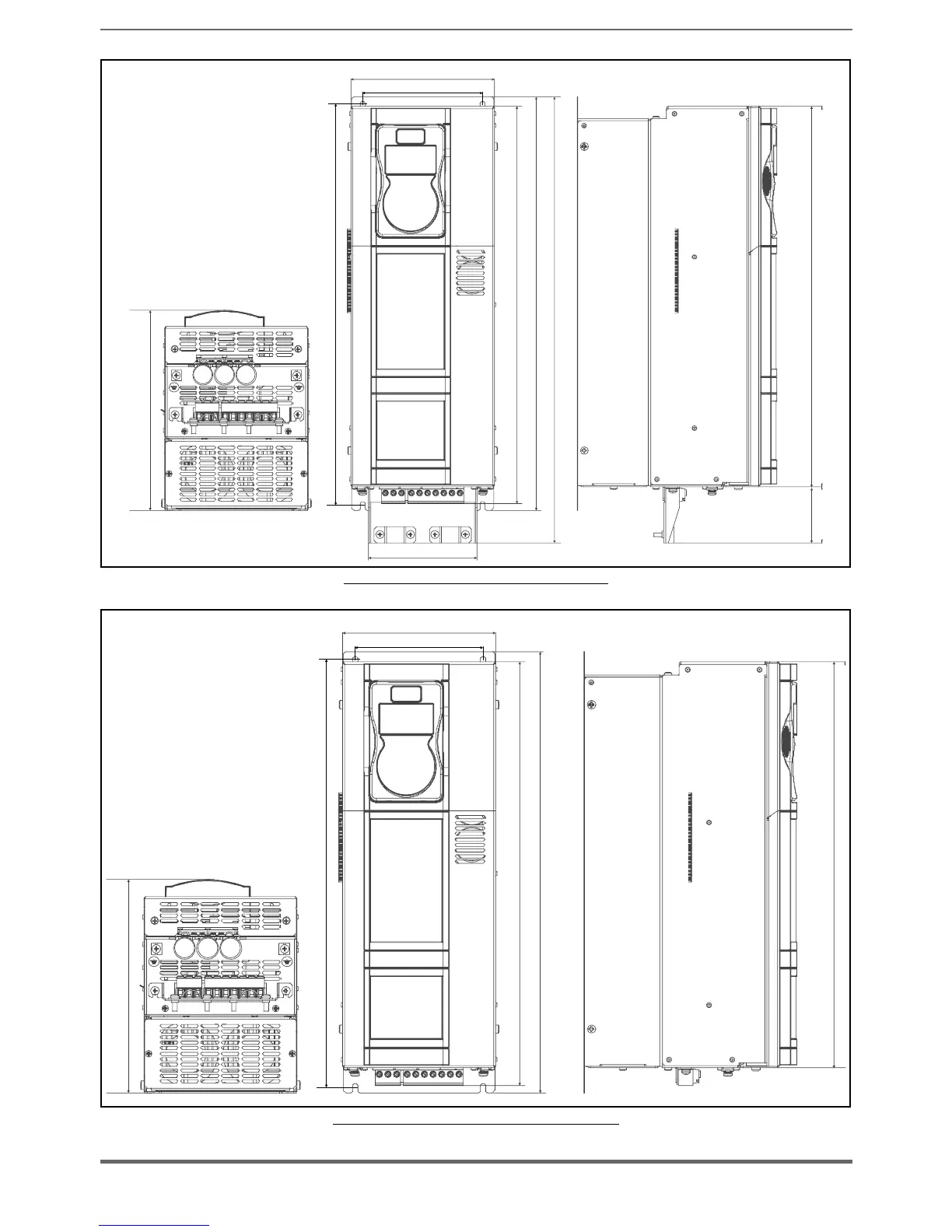

Figure 9.10.3: Size 3 dimensions (ADV200-...-4)
180 mm
(7.09”)
475 mm
(18.70”)
250 mm
(8.84”)
496 mm
(19.53”)
517 mm
(20.35”)
150 [5.91”]
500.1 [19.7”]
Figure 9.10.4: Size 3 dimensions (ADV200-...-4-DC)
