152 ADV200 • Quick start up guide
422 [16.61”]
853 [33.58”]
878 [34.57”]
360 [14.17”]
350 [13.78”]
175 [6.89”]
836 [32.91”]

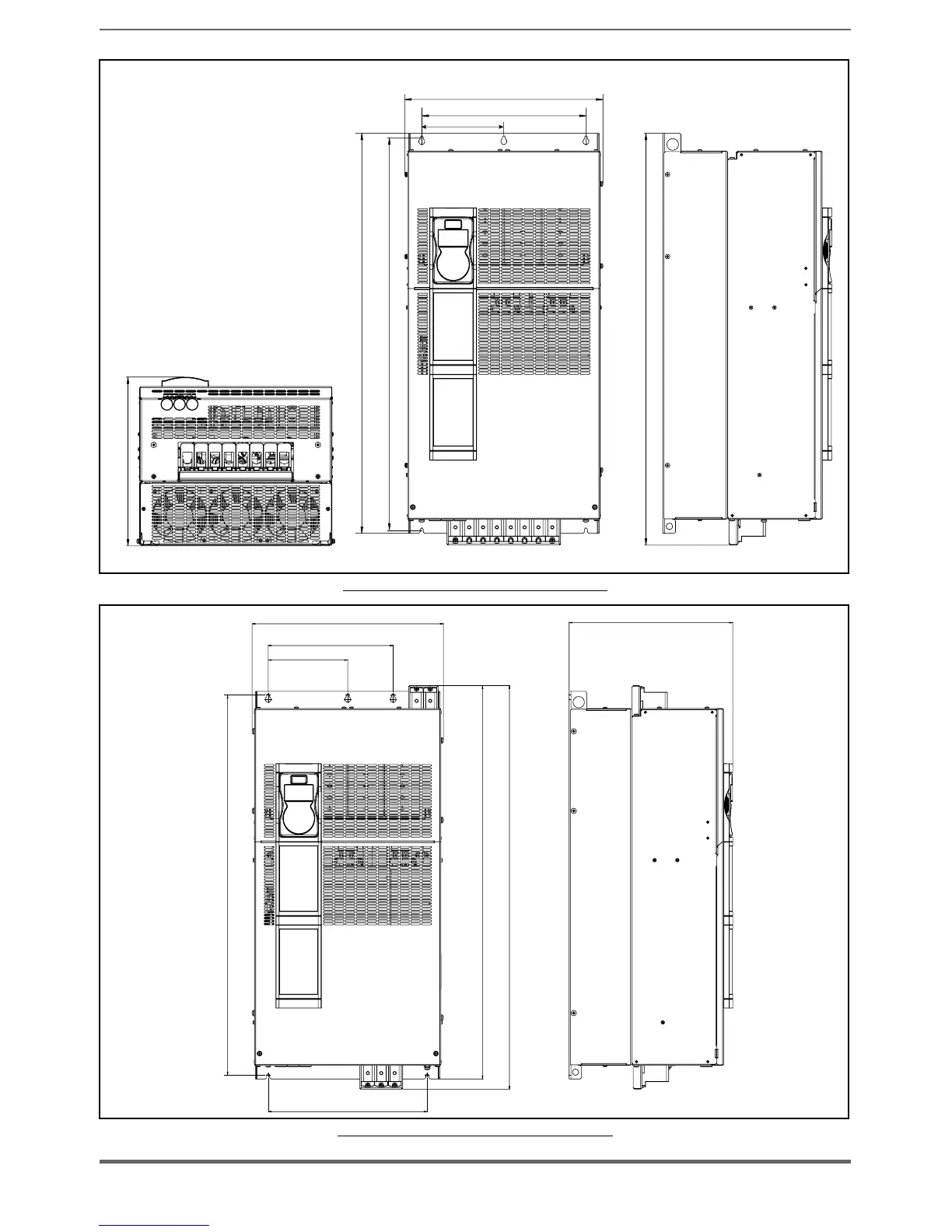

Figure 9.10.9: Size 6 dimensions (ADV200-...-4)
421 [16.57”]
350 [13.78”]
175 [6.89”]
836 [32.91”]
275 [10.83”]
888 [34.96”]
865.5 [34.07”]
360 [14.17”]
Figure 9.10.10: Size ADV61110-...-DC dimensions
