gefran ADV200 Series - Page 151

ADV200 • Quick start up guide 151
311 [12.24”]
748 [29.45”]
853 [33.58”]
767 [30.2”]
325 [12.8”]
730 [28.74”]
220 [8.66”]
279 [10.98”]
265 [10.43”]

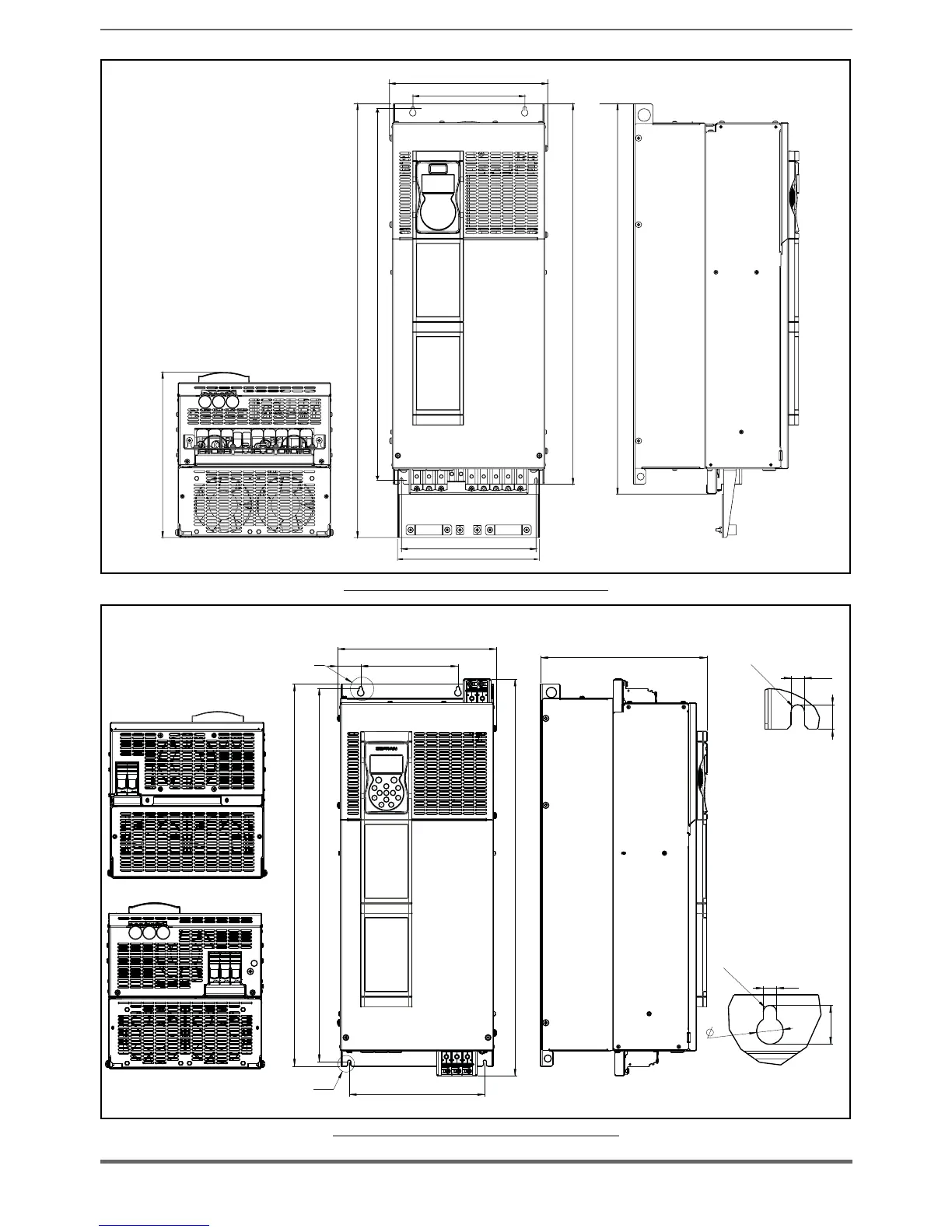

Figure 9.10.7: Size 5 dimensions (ADV200-...-4)
311 [12.24]
265 [10.43]
190 [7.48]
325 [12.80]
ADV-5550-...-DC = 777 [30.59] ADV-5750/5900-...-DC = 801 [31.53]
747.5 [29.43]
730.4 [28.76]
45.5
DETAIL A
DETAIL B
6.5
12
R3.25
DETAIL A
SCALE 1:1
19
13
6.5
R3.25
DETAIL B
SCALE 1:1
Figure 9.10.8: Size 5 dimensions (ADV200-...-4-DC)
