ADV200 • Quick start up guide 161
Sizes 400 kW ... 1 MW
The use of output chokes is mandatory for for parallel units; as a function of the application/connec-
tion, according to the following criteria:
• for applications with short motor cables (≤ 100 m long) bus bars with an integrated ferrites
(see Table 1) or Only Ferrites may be used (see Table 2) or single distributor chokes may be used
(see Table 3);
• for applications with long motor cables (> 100 m long) output choke may be used (see Table 4);

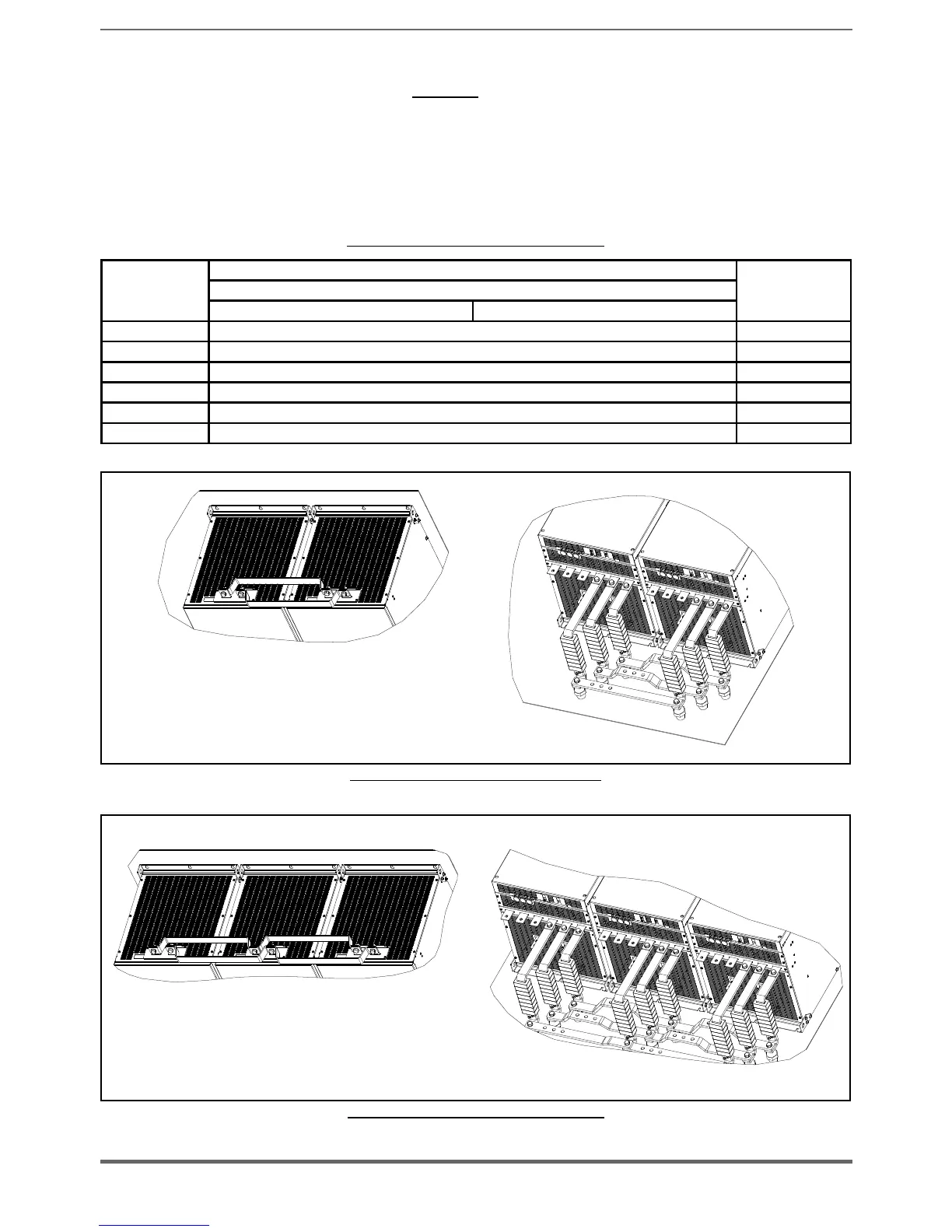

Table 1: Busbars with integrated output chokes
Sizes
Busbar kit
CodeMotor cable lenght distance ≤ 100 m
Heavy Duty Light Duty
400 kW OUT-PW-KIT 2P S72641
500 kW OUT-PW-KIT 2P S72641
630 kW OUT-PW-KIT 2P S72641
710 kW OUT-PW-KIT 2P S72641
900 kW OUT-PW-KIT 3P S726411
1 MW OUT-PW-KIT 3P S726411
Nota: viste senza protezione.
Note: views without protections
Figure 2.1: Busbar kit for sizes 400 ... 710 kW
Nota: viste senza protezione.
Note: views without protections
Figure 2.2: Busbar kit for sizes 900 kW - 1 MW
