ADV200 • Quick start up guide 97
T+ T-ENLOC ILim n:0 AL
18 SPEED REG GAINS
19 REGULATOR PARAM
20 TORQUE CONFIG
21 SENSORLESS
E
T+ T- EN LO C ILim n:0 AL
2 1 . 0 7
PA R: 7 0 2 0
SLS id sel ctrl
Normal
Value 0
T+ T- EN LO C ILim n:0 AL
2 1 . 0 7
PA R: 7 0 2 0
SLS id sel ctrl
Value 1
...
Advanced

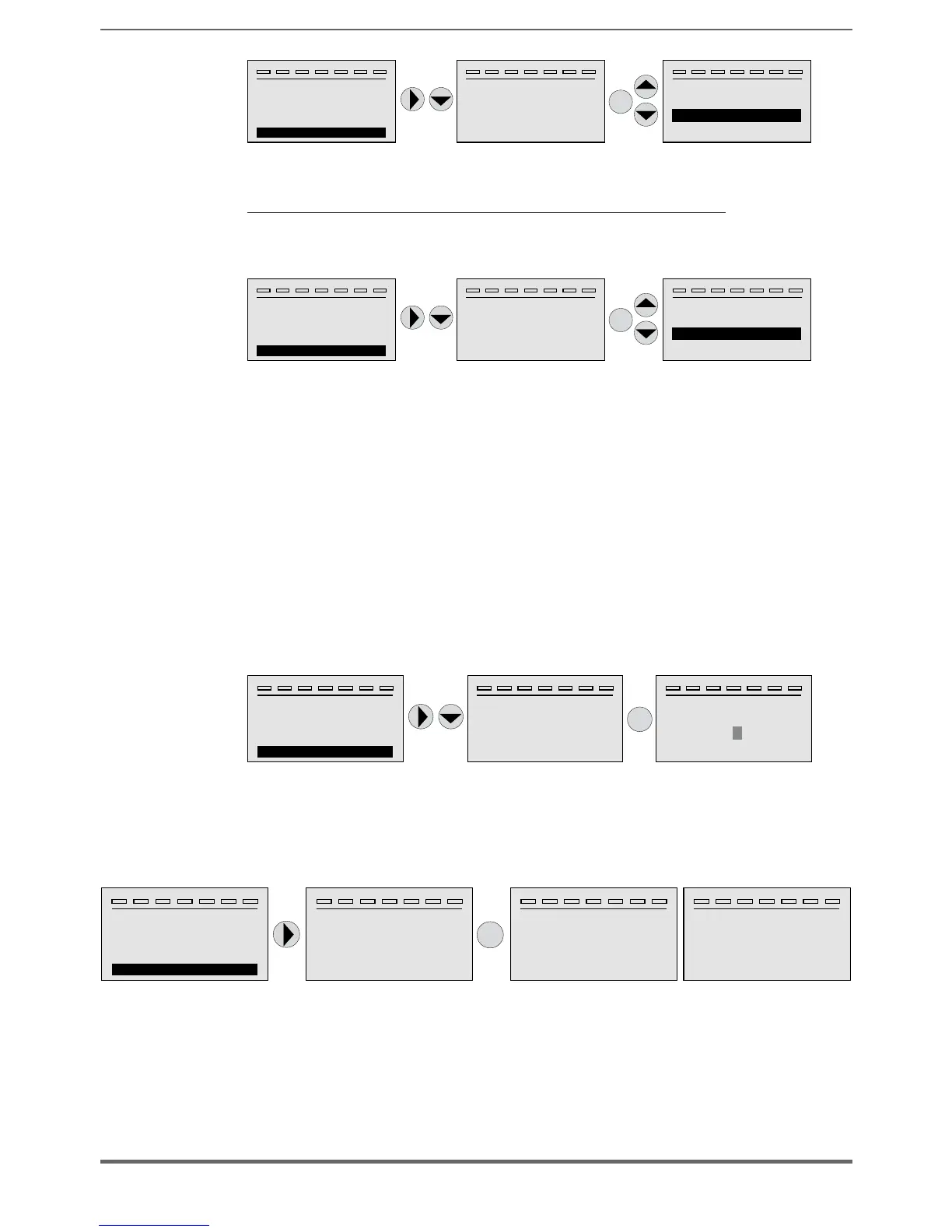

If vibrations are present at Start, modify the following parameters:
Enable parameter SLS rotor alignment (PAR 7048) and perform the alignment
procedure as follows:
T+ T-ENLOC ILim n:0 AL
18 SPEED REG GAINS
19 REGULATOR PARAM
20 TORQUE CONFIG
21 SENSORLESS
E
T+ T- EN LO C ILim n:0 AL
2 1 . 1 9
PA R: 7 0 4 8
SLS rotor alignment
Disable
Value 0
T+ T- EN LO C ILim n:0 AL
2 1 . 1 9
PA R: 7 0 4 8
SLS rotor alignment
Value 1
...
Enable
1. Close the Enable contact (terminals S3 – 7)
2. Set Speed reference = 0
3. Close the FR forward src contact (PAR 1042), terminals S3 – 8.
4. Wait 1 second (value set in parameter PAR 7050), gradually increase the
reference signal using the potentiometer, until exceeding 10% of the maximum
speed
5. Using the potentiometer again, reduce the speed reference signal to zero.
6. Open the FR forward src contact (PAR 1042), terminals S3 – 8.
If the vibrations have not been entirely eliminated, increase the value of parameter
SLS max speed OL (PAR 7012) in steps of 10% until reaching the best working
condition.
T+ T-ENLOC ILim n:0 AL
18 SPEED REG GAINS
19 REGULATOR PARAM
20 TORQUE CONFIG
21 SENSORLESS
E
T+ T- EN LO C ILim n:0 AL
2 1 . 0 3
PA R: 7 0 1 2
SLS max speed OL
120
rpm
Def: 120
T+ T- EN LO C ILim n:0 AL
2 1 . 0 3
PA R: 7 0 1 2
SLS max speed OL
rpm
Def: 120
000000120
x2
To save the new parameter settings, so that they are maintained also after power-
off, proceed as follows:
T+ T- EN LO C ILim n:0 AL
0 4.01
PA R: 550
Save arameters
p
PressEto execute
T+ T-ENLOC ILim n:0 AL
01 MONITOR
02 DRIVE INFO
03 STARTUP WIZARD
04 DRIVE CONFIG
E
T+ T- EN LO C ILim n:0 AL
0 4.01
PA R: 550
Save arameters
p
In ro ress
gp
T+ T- EN LO C ILim n:0 AL
0 4.01
PA R: 550
Save arameters
p
Done
